Series 15i/150i-MB Operators manual Page 527

Operators manual

Page of 640

/ 640

B-63784EN-1/01 OPERATION 10.DISPLAY

- 505 -

- Alarm messages

Alarm messages are displayed.

This sub screen can be enlarged/reduced in the horizontal and vertical

directions.

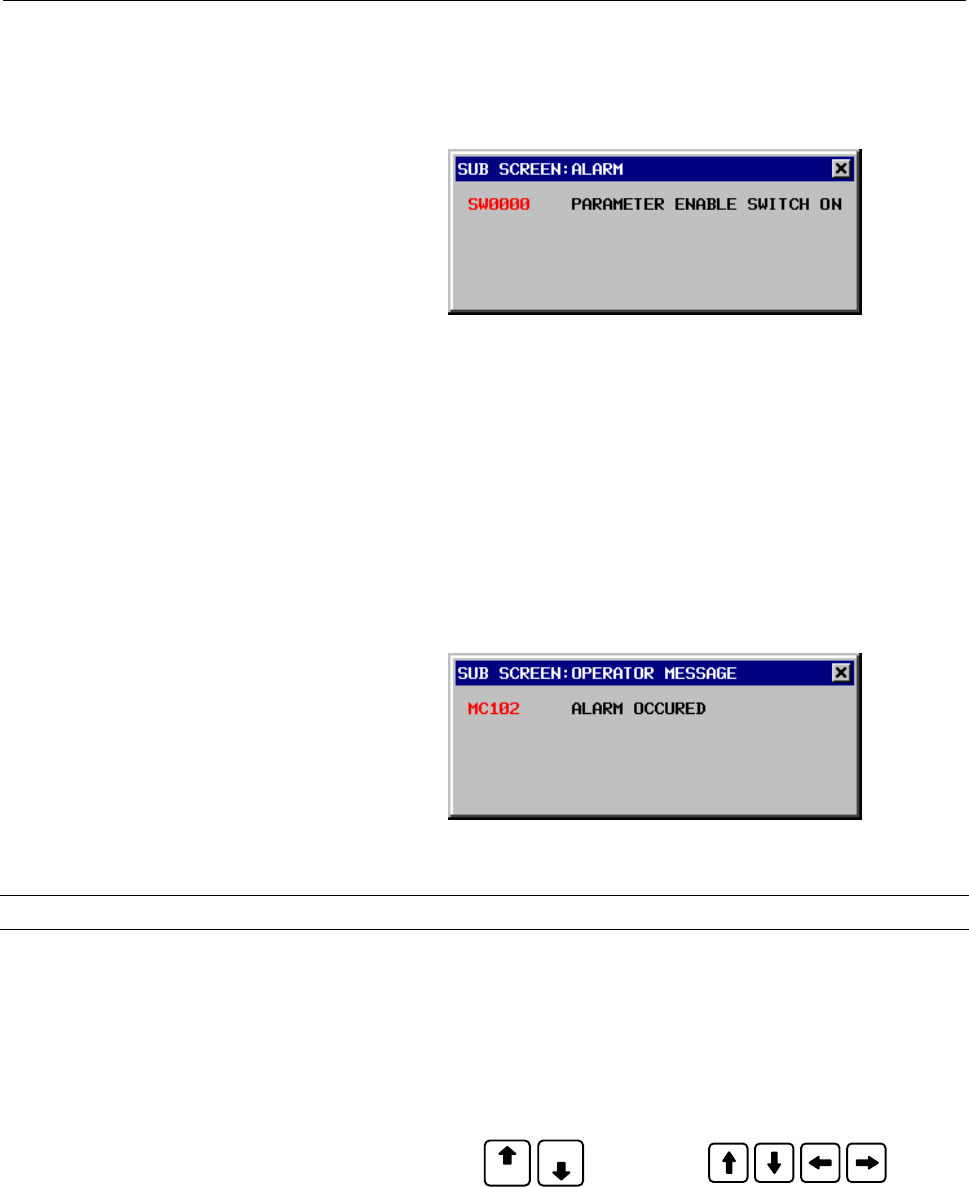

Fig. 10.14 (m) Alarm messages

- Operator messages

Operator messages are displayed.

Note that one of the following options must be provided to display

operator messages:

- Custom macro

- NC window

- External data input/output

This sub screen can be enlarged/reduced in the horizontal and vertical

directions.

Fig. 10.14 (n) Operator messages

Operation

Sub screen display states

A sub screen can be in one of the three states described below.

(1) Sub screen erased state

In this state, the sub screen is not displayed.

Page keys , cursor keys ,

and soft keys all act on the main screen.

PAGE
