B-63784EN-1/01 OPERATION 10.DISPLAY

- 463 -

10.9 OPERATING MONITOR SCREEN

This screen presents real-time bar charts of the loads imposed on the

servo and spindle motors. When a single servo or spindle motor is

selected, a waveform is displayed to indicate the per-minute

fluctuations of the load on the motor.

In addition to the load meter, the following also appear on this screen:

absolute position, specified speed, actual speed, override, T code,

number of parts to be machined, and operating time.

Display

Select Operating Monitor to display the Operating Monitor screen by

using the procedure described in Sections II-2.3 and II-2.5..

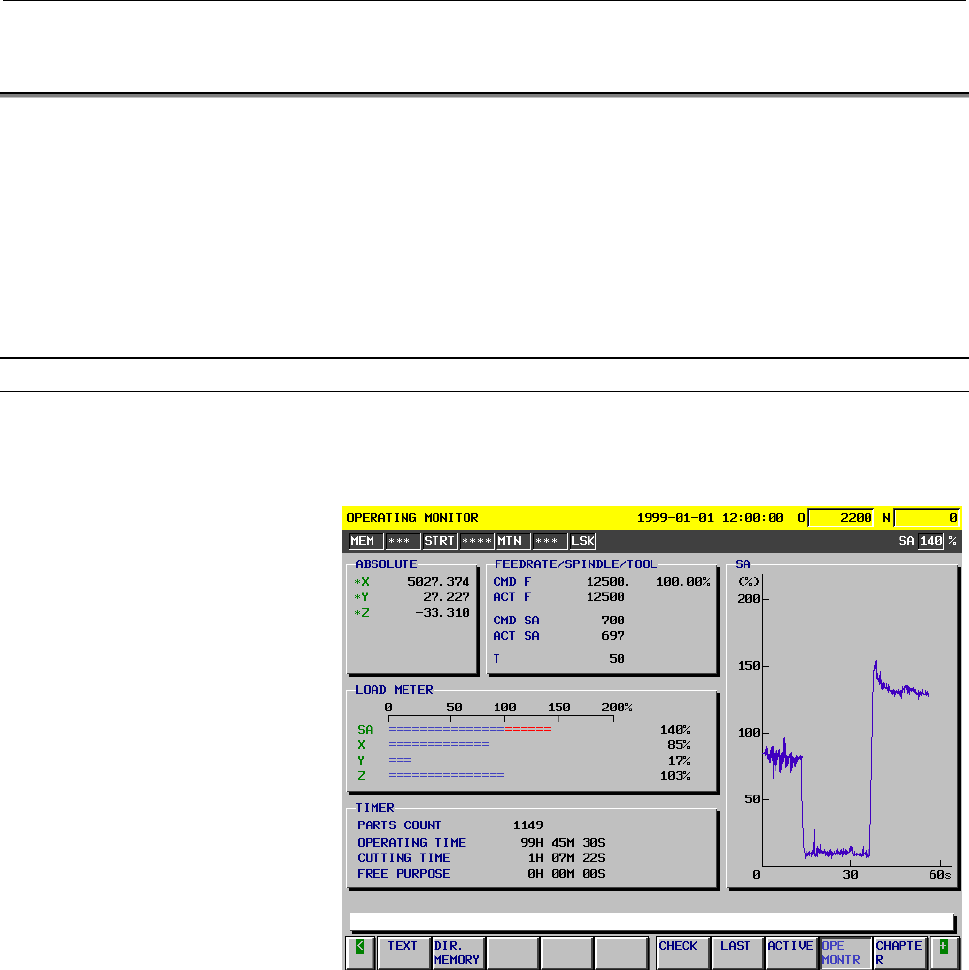

Fig.10.9 Operating monitor screen

1 Absolute coordinate

The absolute coordinates on this screen are the same as those

shown on the position display screen.

2 Feedrate/spindle speed/tool

The specified speed and actual speed on this screen are the same

as those shown on the program check screen. The override

indicating the input signal status, as well as the specified T code

value are also displayed.
