10.DISPLAY OPERATION B-63784EN-1/01

- 504 -

- Modal information

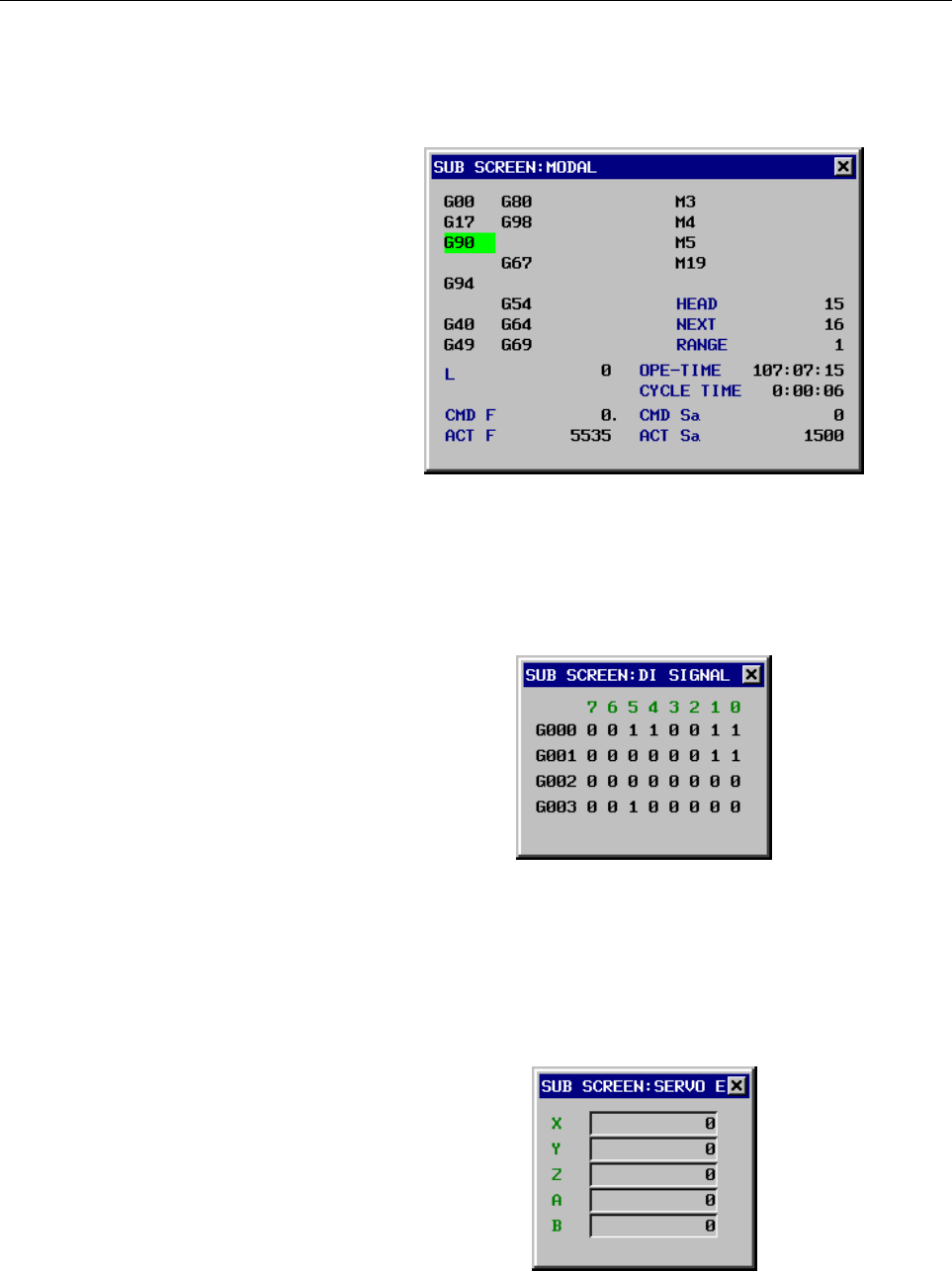

Modal information is displayed. The same modal information as that

displayed on the program check screen is displayed.

This sub screen cannot be enlarged/reduced.

Fig. 10.14 (j) Modal information

- DI/DO signals

Bit images of the DI/DO signals are displayed.

The number of bytes displayed can be changed by enlarging/reducing

the sub screen in the horizontal and vertical directions.

Fig. 10.14 (k) DI signals

- Servo positional deviations

Servo positional deviations are displayed.

This sub screen cannot be enlarged/reduced.

Fig. 10.14 (l) Servo position deviations
