10.DISPLAY OPERATION B-63784EN-1/01

- 528 -

Displaying a torque graph

Torque graph screen

Stored torque data can be graphed on the torque graph screen.

On the torque graph screen, you can save data as sample data or output

the latest data onto a memory card. You can also change the threshold

value of the abnormal load detection alarm from the torque screen.

Display method

Method 1

1 Press the function menu key to place the soft keys in the function

selection state.

2 In the function selection state, press [SYSTEM], then press

[CHAPTER] several times to place the soft keys in the chapter

selection state.

3 Press [FINE TORQUE] to display the torque graph screen.

Method 2

Press the MDI key several times to display the torque graph

screen.

Display contents

The torque graph screen displays a graph of torque data and several

pieces of information.

- Graph display

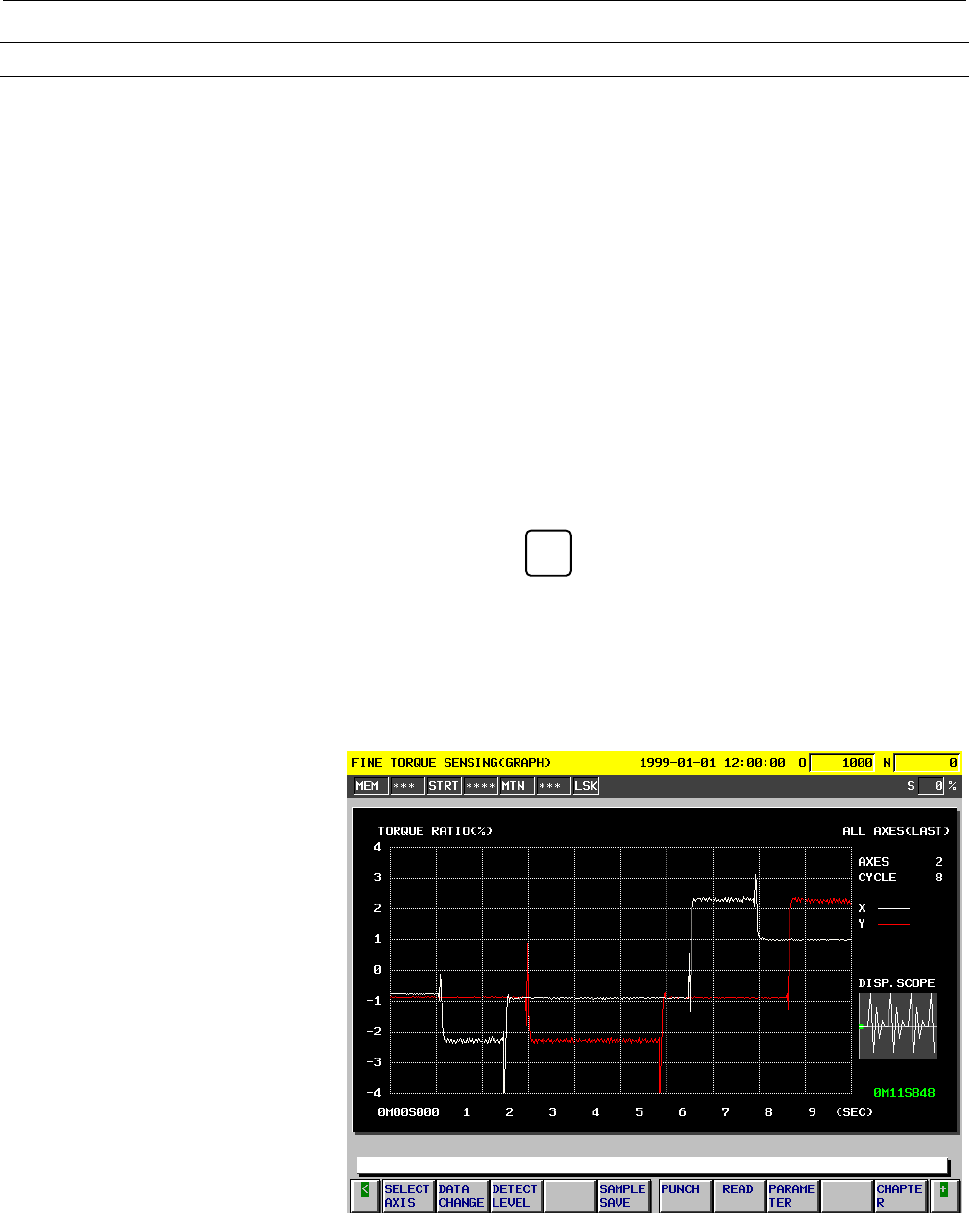

Fig. 10.18 (a) Torque Graph Screen

The horizontal axis of the torque data graph indicates the time, and the

vertical axis indicates the percentage (%) of the disturbance load torque

to rated torque.
