B-63784EN-1/01 OPERATION 4.AUTOMATIC OPERATION

- 169 -

- Single block halt position

Blocks created internally by the control unit contain a single block

when reverse movement is performed.

Path after offset

Programmed path

(2)

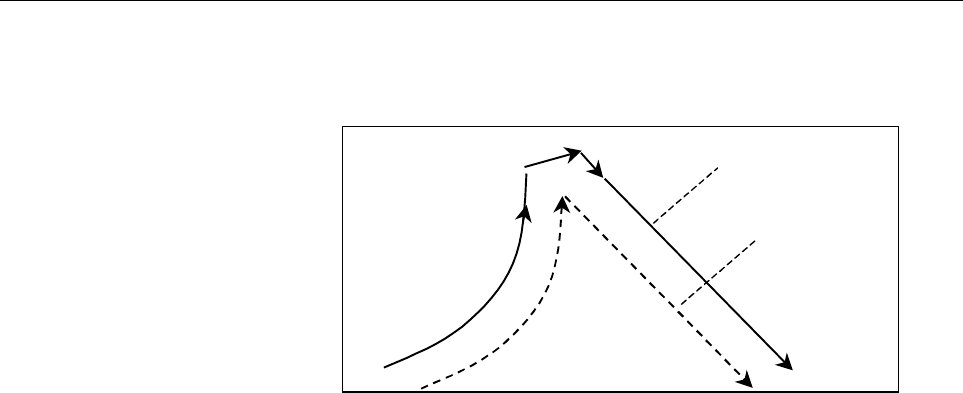

Fig. 4.11 (l) Tool path after cutter compensation

In the above example, axis movement commands for five blocks are

actually created in program execution even if two blocks are

programmed.

In this case, the single block halt position may differ during reverse

movement and forward return movement.

- Programmable data setting (G10)

A tool compensation value, parameter, pitch error data, workpiece zero

point offset value, and tool life management setting specified or

modified using the programmable data setting code (G10) are ignored

in reverse movement and forward return movement.

- Coordinate system setting (G92)

The current position of the coordinate system setting (G92) during

reverse movement may differ from the current position during forward

return movement. Actual machine coordinates, however, do not differ.

- Mirror image

In blocks where the mirror image function is specified by

programmable mirror image codes G50.1 and G50.2, reverse

movement is performed along a tool path that is the mirror image of the

programmed tool path.

Blocks where the mirror image function is specified by setting data or

machine signals are stored to memory without mirror image being

applied. Mirror image specified by setting data or machine signals is

effective during both reserve movement and forward return movement.

For this reason, the mirror image ON/OFF state specified by setting

data or machine signals must be maintained at the same state as forward

movement also during reserve movement and forward return

movement.
