Series 15i/150i-MB Operators manual Page 180

Operators manual

Page of 640

/ 640

4.AUTOMATIC OPERATION OPERATION B-63784EN-1/01

- 158 -

5. Repositioning returns the tool to the program execution position

in the first block not containing the thread cutting command.

In this example, the positioning point is d. Automatic operation

after repositioning is executed from the block continuing the N50

command.

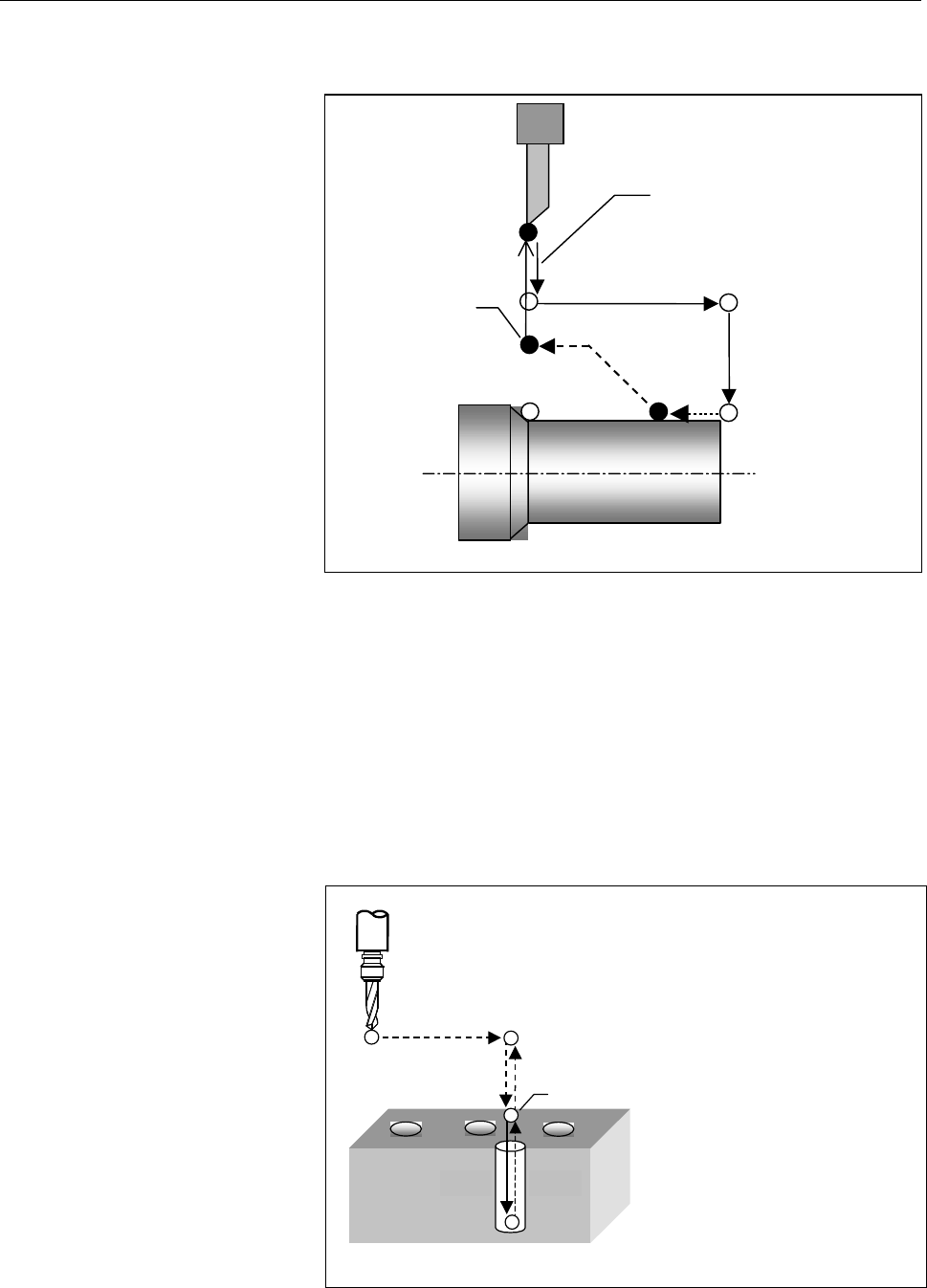

Explanation 6Procedure for retraction and recovery in a canned drilling cycle

- Retract

When the TOOL RETRACT switch is turned on in a canned drilling

cycle, how the tool is retracted depends on the operation being

performed at that time.

Motion 1 ...... Positioning along the X- and Y-axes

Motion 2 ...... Rapid traverse to point R

Motion 3 ...... Actual drilling

Motion 4 ...... Operation at the bottom of a hole

Motion 5 ...... Retraction to point R

Motion 6 ...... Rapid traverse to initial point

Initial point

Point R

Motion 1

Motion 2

Motion 6

Motion 3 Motion 5

Motion 4

Retract point

Point E

Repositioning

N50
