9.SETTING AND DISPLAYING DATA OPERATION B-63784EN-1/01

- 376 -

Jog feed based on numeric keys

By parameter setting (No. 2020, No. 2021), jog feed can be specified

using the MDI keys after assigning move axes to the MDI keys (1 to 4,

6 to 9). As move axes, the first axis to the sixth axis can be specified.

No other axes can be specified.

When an open CNC is used, and a standard display/input unit for the

CNC (MDI with arrow keys) is not installed or is unusable (with the

CNC screen display function being used), jog feed based on numeric

keys is unusable.

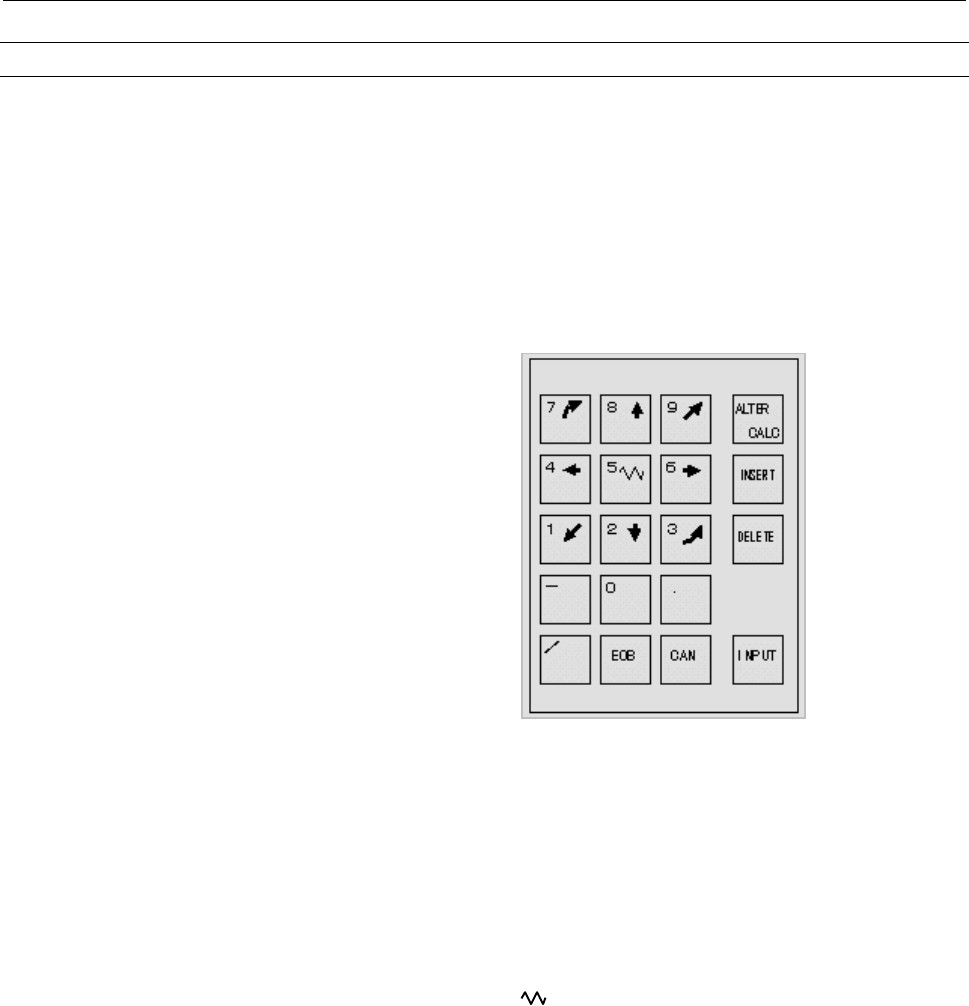

Fig.9.13 (b) Numeric Keys on a Display/Input

Procedure

(1) To display the software operator's panel screen, follow the

procedure described in Section II-2.3 or II-2.5, "Offset Setting."

This function is available only when the software operator's panel

screen is displayed.

(2) Select JOG mode.

(3) Pressing an MDI key enables jog feed.

(4) Pressing the “5 “ key together with a numeric key from 1 to 4 or

6 to 9 performs jog rapid traverse.
