2.OPERATIONAL DEVICES OPERATION B-63784EN-1/01

- 46 -

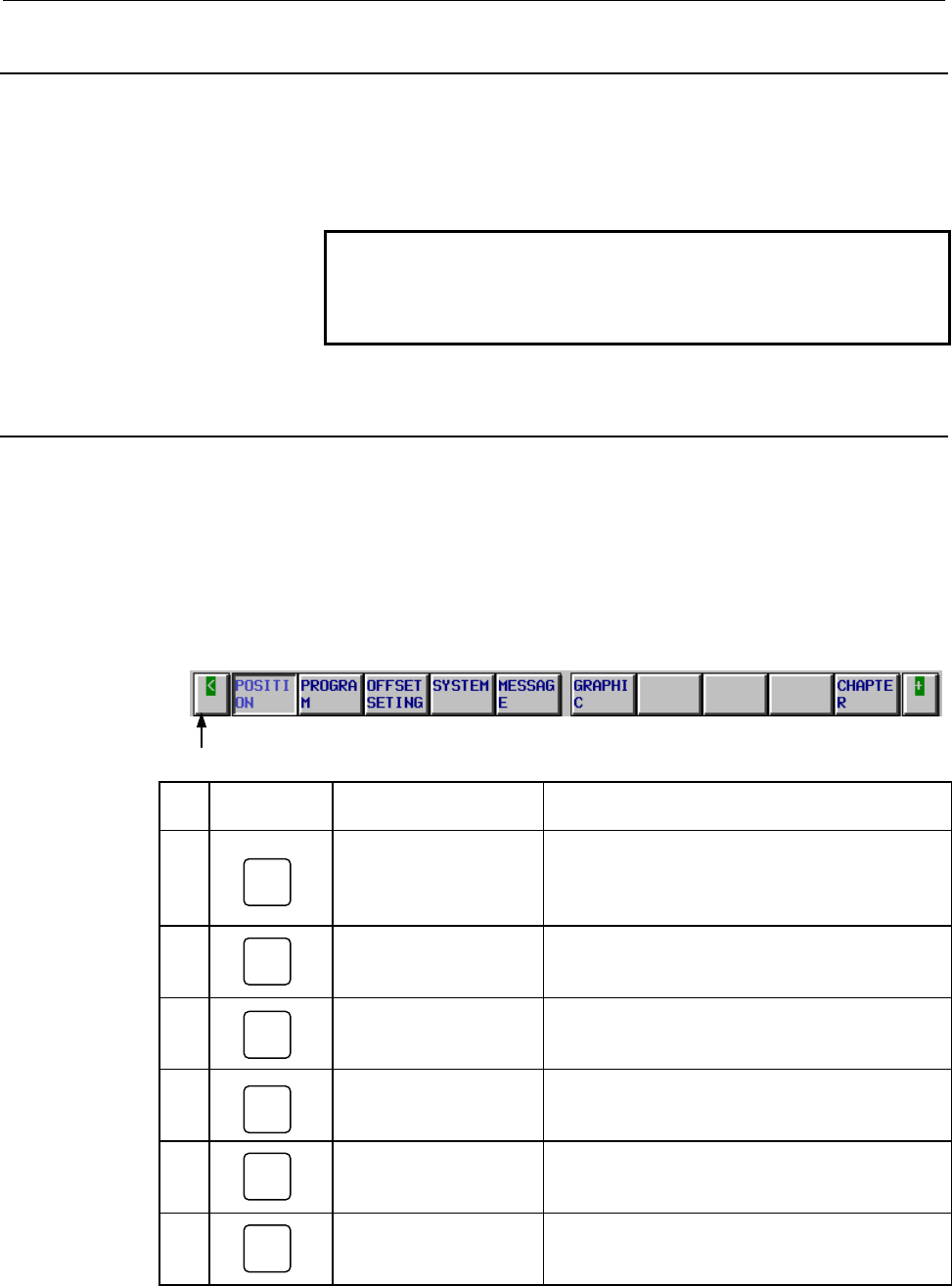

2.5.3 Soft Keys

Instead of the function keys, soft keys can also be used to select the type

of screen to be displayed. In addition, soft keys are used for actual

operations. The subsequent sections show a function menu and chapter

selection menus.

NOTE

The soft keys explained below are not always

displayed. Some of the soft keys do not appear

depending on the set options.

2.5.4 Function Selection Keys

To select a function with the soft key, press the function

selection menu key to change the soft keys to the function selection keys,

then press the desired function selection key.

Functions can be selected in any mode.

Detailed function selection is performed with the chapter selection

keys.

The following function selection keys are provided:

NO.

Function key

(MDI panel)

Function selection key

(soft key)

Explanation

(1) POSITION

Current-position information screens indicating

absolute coordinates, machine coordinates,

relative coordinates, remaining amounts of travel,

and so forth can be selected.

(2) PROGRAM

The part program display screen, program check

screen, and so forth can be selected.

(3) OFFSET/SETTING

The tool offset screen, workpiece origin offset

screen, and so forth can be selected.

(4) SYSTEM

The parameter screen, diagnosis screen, PMC

screen, and so forth can be selected.

(5) MESSAGE

Alarm message and operator message screens

can be selected.

(6) GRAPHIC

Graphics screens can be selected.

POS

PROG

OFFSET

SETTING

SYSTEM

MESSAGE

GRAPH

Function menu key
