1.GENERAL OPERATION B-63784EN-1/01

- 12 -

1.1 MANUAL OPERATION

Explanations

- Manual reference position return

The CNC machine tool has a position used to determine the machine

position.

This position is called the reference position, where the tool is replaced

or the coordinate are set. Ordinarily, after the power is turned on, the

tool is moved to the reference position.

Manual reference position return is to move the tool to the reference

position using switches and pushbuttons located on the operator's

panel.(See II-3.1)

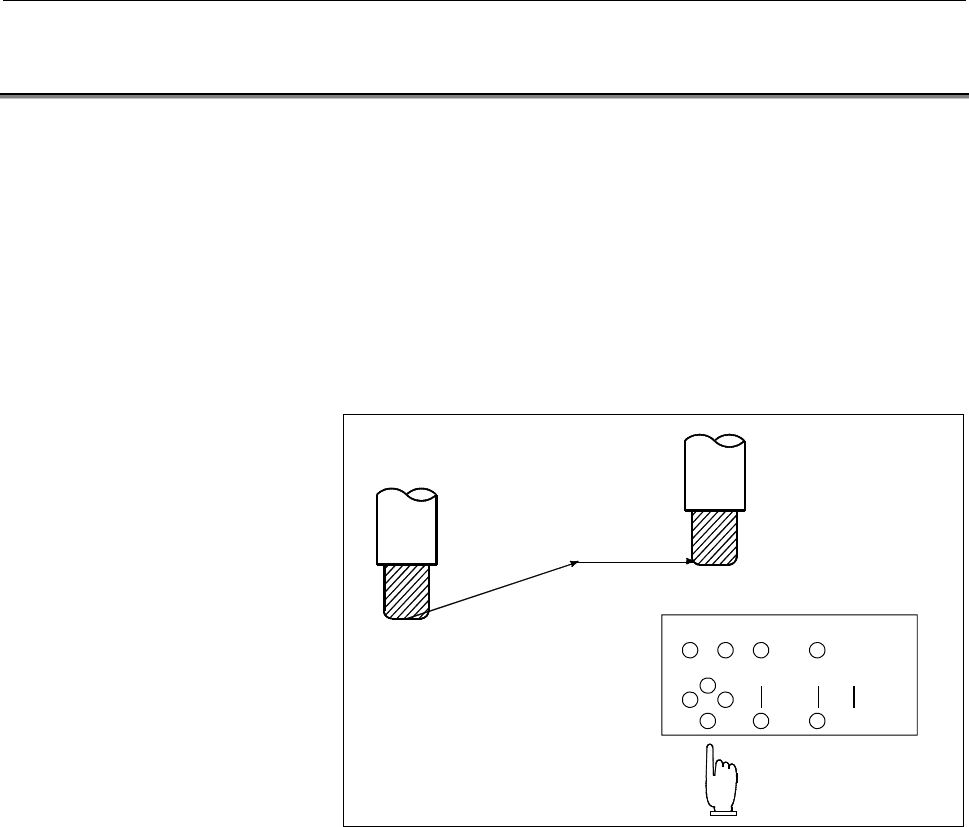

Fig.1.1 (a) Manual reference position return

The tool can be moved to the reference position also with program

commands.

This operation is called automatic reference position return (See

Programming Manual II-6).

Reference Position

Tool

Machine operator’s panel
