B-62924EN/04 CONNECTION 1.CONNECTING THE PROFIBUS FUNCTIONS

- 111 -

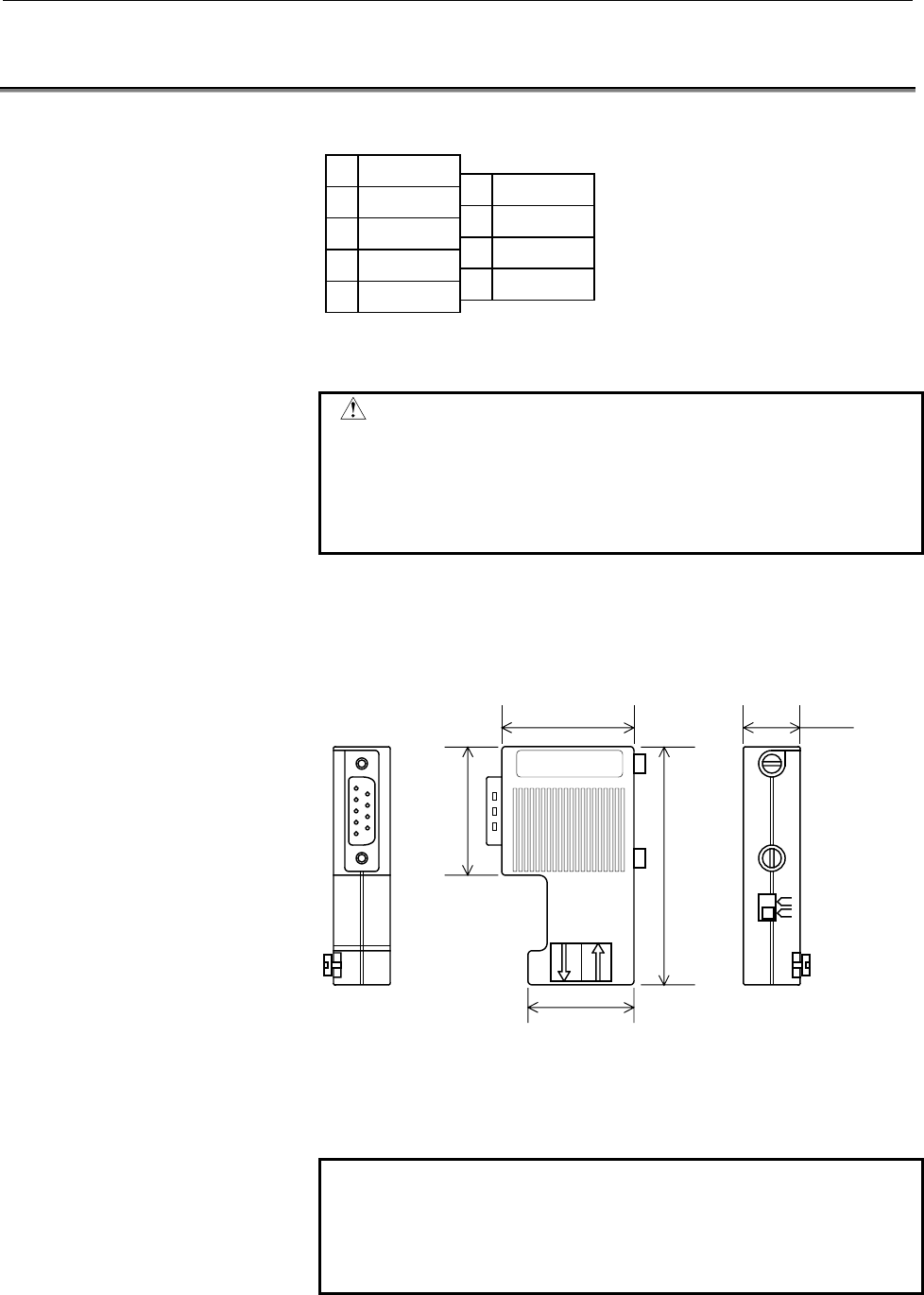

1.4 CONNECTOR

Nine-pin D-Sub female connector

CAUTION

The VP and CNTR-P pins are used for controlling a

repeater. Do not connect these pins to anything

unless a repeater is used. Otherwise, damage to the

device is likely. If you want to use these pins, consult

with FANUC beforehand.

You can use the following cable-end connector to perform wiring and

terminate the cable easily.

Cable-end connector:

S7 SINEC L2 bus connector 6ES7 972-0BA11-0XA0,

manufactured by Siemens, or equivalent

35.6 15.8

28.4

64.0

35.0

Outside Dimensions of the S7 SINEC L2 Bus Connector

There is a 4-pin terminal block (A1, B1, A2, and B2) in this

connector.

NOTE

1 The shape, dimensions, and other characteristics of

the connector are subject to change without notice.

2 This bus connector may not be able to be used

depending on the position of the PROFIBUS board.

6VP

8 RxD/TxD (-)

1PE

3 RxD/TxD (+)

5 CNTR-P

PE : Shielding

RxD/TxD (+) : Transmission/reception

data (+)

CNTR-P : Not used (repeater control)

DGND : Signal ground

VP : Not used (+5V output)

RxD/TxD (-)

: Transmission/reception

data (-)
