C.SETTING USING A PERSONAL COMPUTER SUPPLEMENT B-62924EN/04

- 212 -

Initial setting of PROFIBUS-DP Configurator

(1) Mount a PROFIboard or PROFIcard on your personal computer

according to the instructions described in the corresponding

manual.

(2) Install PROFIBUS/DP DMK package, which is an I/F board

driver provided by Softing.

(3) Install PROFI-KON-DP, which is PROFIBUS-DP Configurator

software provided by Softing.

NOTE

Dp_Konf.exe, execution file installed in step (3),

uses papi_l.dll (.../Win95sdk/papi/lib16), dll file

installed in step (2). For this reason, remember to

copy papi_l.dll into the directory containing

Dp_Konf.exe or set an environment variable.

(4) Open PROFIBUS on the Control Panel. Screen C-1 is displayed.

Select PROFIboard or PROFIcard in the tree and click Add, then

make settings for the I/F board.

When PROFIcard is selected and setting terminates normally,

Screen C-1 below is displayed.

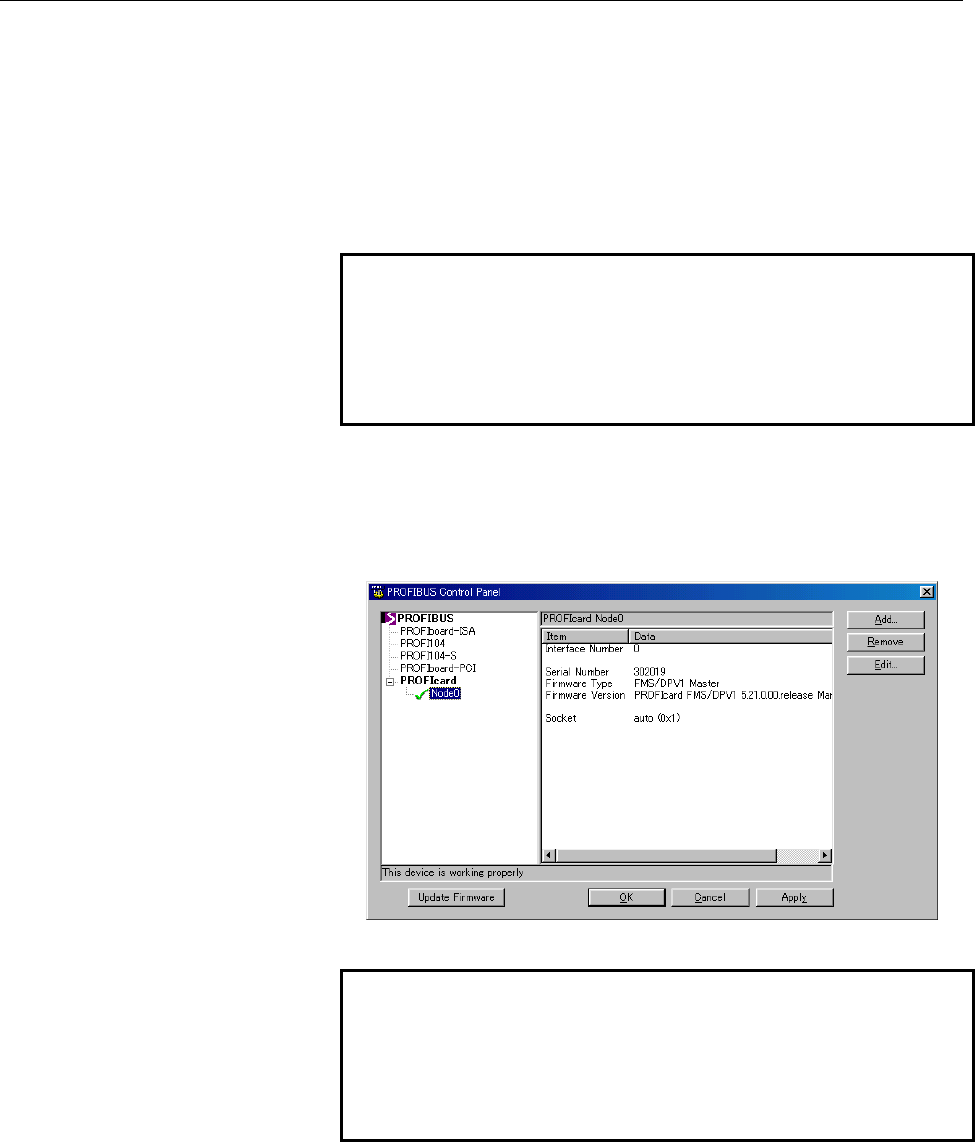

Screen C-1

NOTE

Check that a green check mark is displayed for the

set I/F board as shown in Screen C-1. If a red cross

is displayed for the set I/F board, proper remote

downloading cannot be performed. In this case,

check the installed software again.
