Profibus-DP Board Operators manual Page 289

Operators manual

Page of 322

/ 322

10/23

SHEET

DESCRIPTION

DESIGN

DATE

EDIT

010629

Hiramatsu

Newly registered

TITLE: PROFIBUS-DP Board OPERATOR’S MANUAL

I. Note about the number of available I/O module Units

II. Setting method of address mapping for PMC-SD7

62924EN/04

FANUC LTD.

04.11.04

DRAW.NO.

NOTE

When PMC address setting is invalid, an error message "INVALID

INPUT" or "INVALID RANGE" is displayed.

Causes :

· When PMC address name was input, input character was not "M"

or "ME".

· When PMC address number was input, input value was not

(8*n)+1 [n = from 0 to 7999].

· When PMC Size was input, input value was not from 0 to 244.

· When PMC address number or PMC Size was input, the

specified PMC Area " PMC address number+(PMC Size*8)-1"

exceeded the maximum value 64000 of PMC Area %M or %ME.

CAUTION

When assigning addresses, pay careful attention to the following points:

(1) Ensure that a specified PMC area (Master function’s DI/DO data area,

diagnose data area, operation mode indication area, Slave function’s

DI/DO data area if Slave function is used) do not overlap one another.

(2) Ensure that the specified addresses do not overlap an area used for

a ladder program.

Other setting screens are set up in the same way, too.

Examples of other setting screens are below.

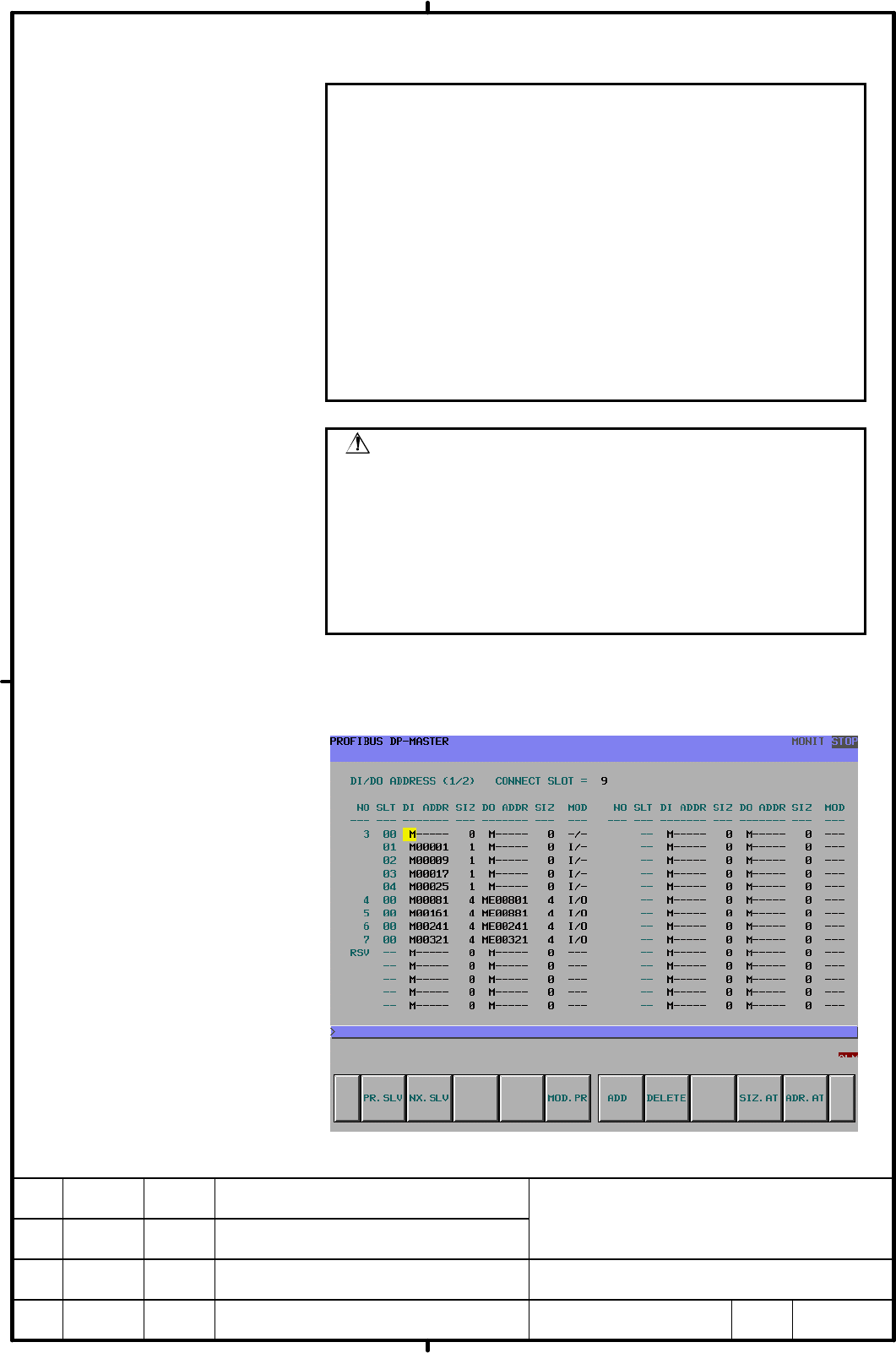

DI/DO Address setting screen
