Profibus-DP Board Operators manual Page 277

Operators manual

Page of 322

/ 322

40/42

SHEETDESCRIPTIONDESIGN DATE EDIT

01 Mutai Newl

istered

TITLE: Additional explanation of

PROFIBUS-DP Master function

(I/O Module Assignment function)

B-62924EN/04-1

FANUC LTD.

02.10.7

DRAW.NO.

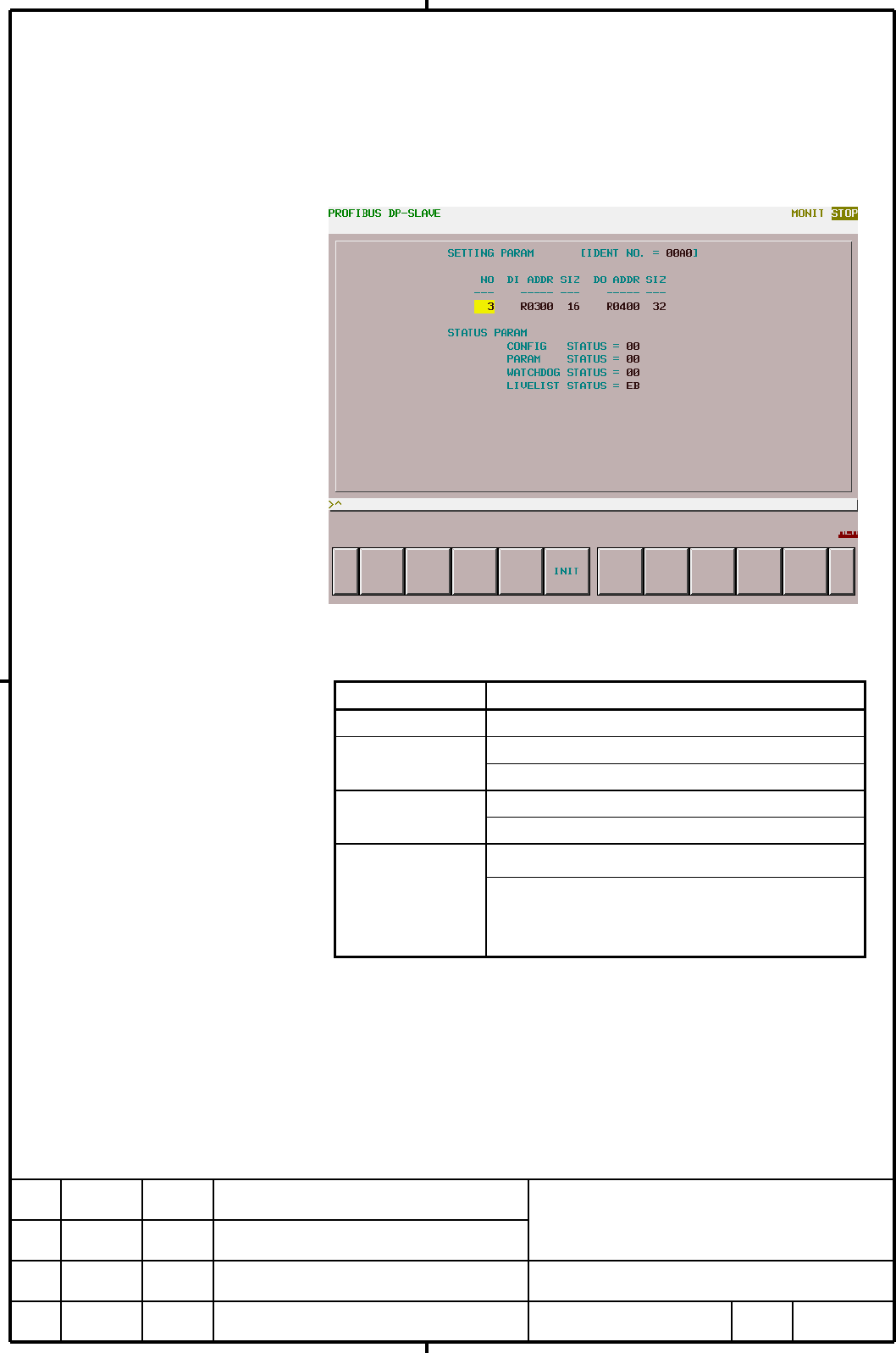

(3) Pressing the soft key [SLAVE] on this screen displays Screen 1-16.

If PROFIBUS parameter settings are set for the first time, the soft key [INI.AL]

should be pressed. By pressing [INI.AL], all of PROFIBUS master parameters are

initialized.

Screen 1-12

Table 1-16 Parameters for Slave function

Item Description

NO Slave number

Start address of DI/DO data DI/DO ADDR

Range: Please refer to “CAUTION”.

Size of DI/DO data DI/DO SIZ

Range: 0 to 244 bytes

Ident number IDENT NO

00A0:Stand-alone type 16i/18i/21i-A/B,

LCD-mounted type16i/18i/21i-A/B, 16/18-C

00A1:Power Matei –D/H
