TITLE: Additional explanation of
PROFIBUS-DP Master function
(I/O Module Assignment function)
B-62924EN/04-1
FANUC LTD.
02.10.7
DRAW.NO.
1.2.3. Slave Parameter Setting
(1) By pressing the soft key [SLV.PR] on Screen 1-5, Screen 1-6 will appear.
According to Table 1-8, please configure the slave parameters.

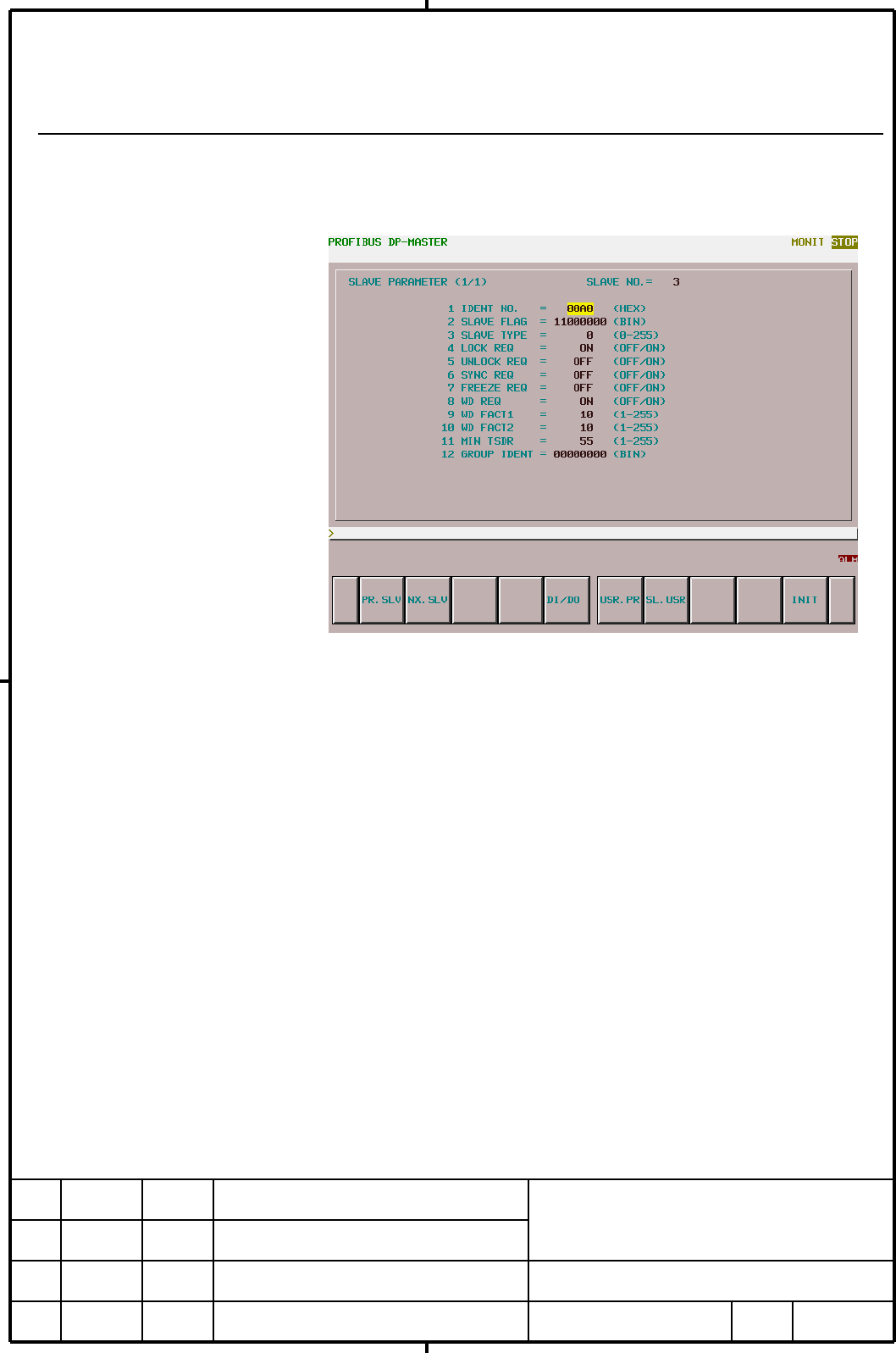

Screen 1-6
(2) By pressing the soft key [USR.PR], the detail parameter setting screen appears and
“USER PARAM DATA” can be configured.
By pressing the soft key [SL.USR], another detail parameter setting screen appears
and “SLAVE USER DATA” can be configured.
For details, please refer to “Detail parameter setting” of this section.
(3) Additionally, the following keys are available.
[PR.SLV], [NX.SLV] :
By pressing soft keys [PRV.SLV] and [NXT.SLV], the slave number of a DP-Slave
to be set can be changed. To move to the screen of a desired slave number directly,
input the slave number, then press soft key [PRV.SLV] or [NXT.SLV].
[ INIT ] :
The soft key [INIT] can initialize the slave parameters of a specified slave number as
the default values for a DP-Slave of a FANUC CNC.
(4) By pressing the soft key [DI/DO], the DI/DO parameter setting screen appears.
-> Please refer to “1.2.4. DI/DO Parameter Setting”.
