B-62924EN/04 SUPPLEMENT A.SETTING WHEN EDITION 07 OR EARLIER OF SERIES 6557 IS USED

- 175 -

A.1.2 Slave Parameter Setting

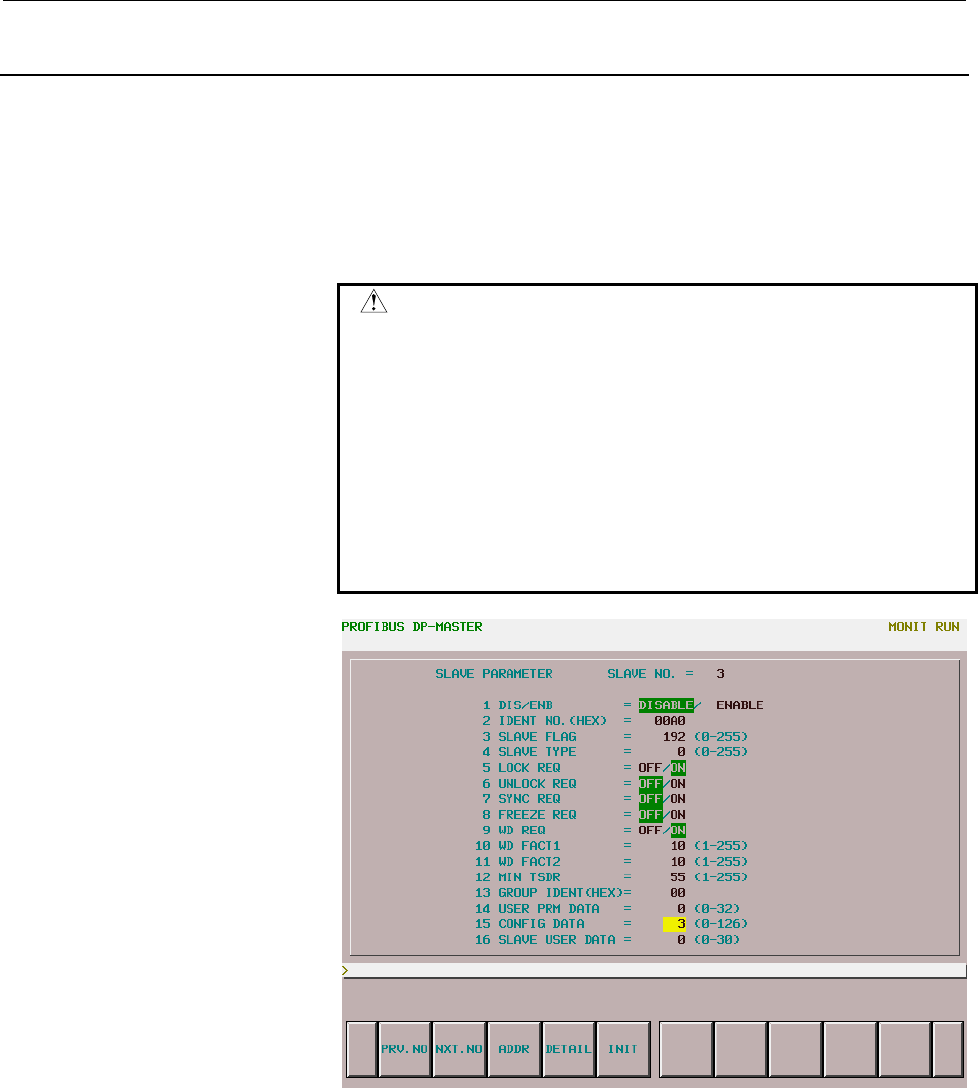

Pressing soft key [SLAVE] on Screen A-2 displays Screen A-5 to

enable slave parameter setting.

By pressing soft keys [PRV.NO] and [NXT.NO], the station number

of a DP-Slave to be set can be changed. To move to the screen of a

desired station number directly, enter the station number, then press

soft key [PRV.NO] or [NXT.NO].

CAUTION

When setting slave parameter data, pay careful

attention to the following points:

1 The slave parameters are available for 125 stations.

However, set the slave parameters for no more than

32 DP-Slaves for actual communication.

2 When using DP-Slaves provided by other

manufacturers, set the slave parameters according

to the GSD file attached to each DP-Slave.

3 When setting the slave parameters, carefully check

the slave number of each DP-Slave to be set.

Screen A-5

Soft key [INIT] on Screen A-5 initializes the slave parameters of a

specified station number to the standard values used for connecting a

DP-Slave using a FANUC CNC. For details of the settings required to

connect a DP-Slave manufactured by FANUC, see Section A.3,

"Setting the Slave Parameters for Using a Slave Station Manufactured

by FANUC." Soft key [DETAIL] shown at the bottom of Screen A-5

is displayed when the cursor is moved to an item from 14 USER PRM

DATA to 16 SLAVE USER DATA. Pressing this soft key displays a

screen such as Screen A-6. (Screen A-6 shows the screen displayed by
