B-62924EN/04 OPERATION 2.Series 15i-A

- 75 -

2.3 SLAVE FUNCTION SETTING

Addresses must be assigned on a DP-Slave before the slave function

can be used.

By address assignment, a PMC address is set, and the sizes of the

DI/DO areas used for the DI/DO signal transfer between the DP-

Master and DP-Slave are set. The method of setting each parameter is

described below.

NOTE

Before a DP-Slave manufactured by FANUC can be

used, data dependent on the FANUC DP-Slave must

be set in the slave parameters of the DP-Master. So,

when setting the slave parameters of the DP-Master,

see Section 2.4, "Setting the Slave Parameters for

Using a slave Station Manufactured by FANUC."

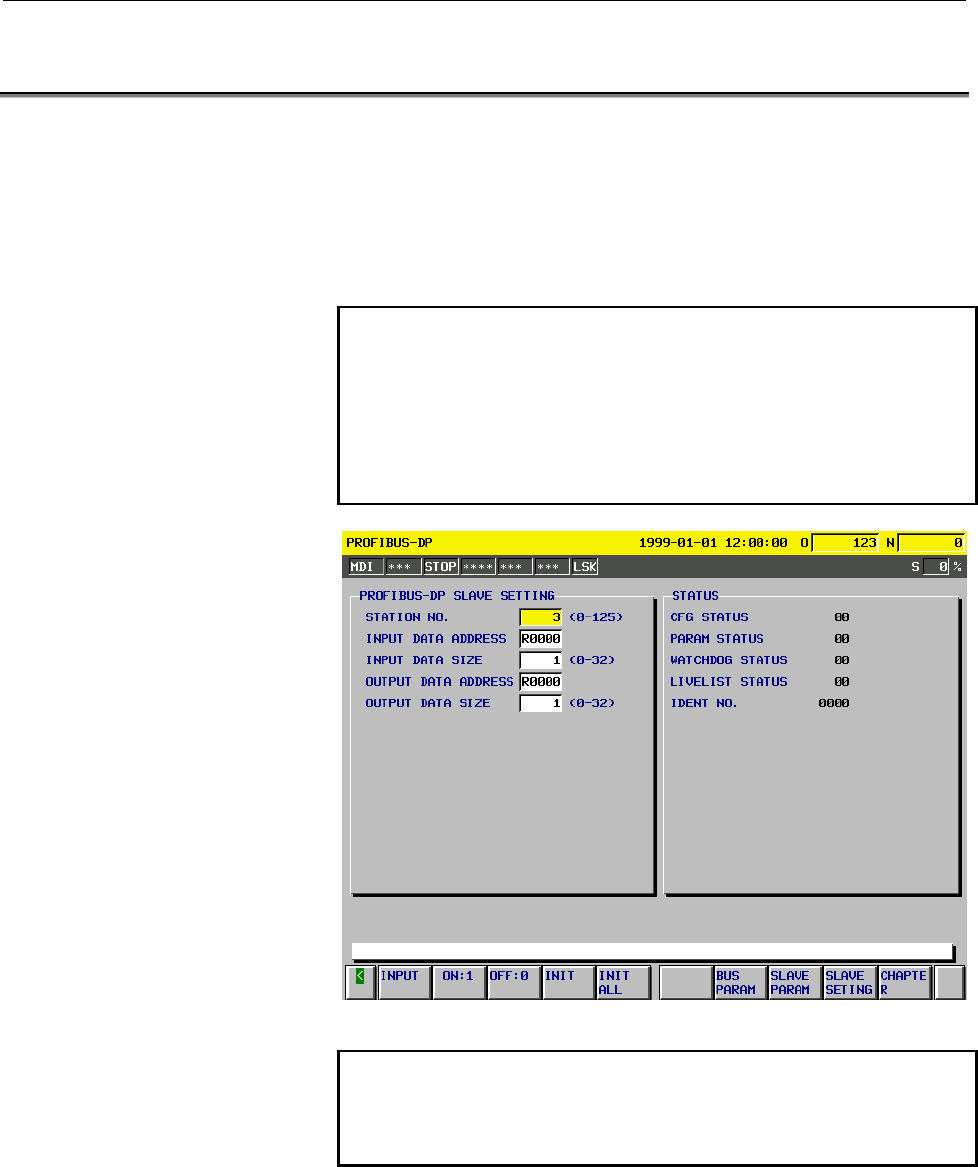

Screen 2-3

NOTE

INPUT DATA SIZE = 0 or OUTPUT DATA SIZE = 0

can be set on the screen, but communication is

disabled in this case.
