A.SETTING WHEN EDITION 07 OR EARLIER OF SERIES 6557 IS USED SUPPLEMENT B-62924EN/04

- 168 -

A.1 MASTER FUNCTION SETTING

To use the master function, bus parameters and slave parameters must

be set, and addresses must be assigned.

The bus parameters are referenced by the network, and the slave

parameters are set for each slave. In address assignment, PMC

addresses used by the DP-Master to transfer DI/DO signals to and

from each DP-Slave are set.

The methods of setting the parameters are described below.

Procedure (CRT/MDI)

(1) Press function key <SYSTEM>, then press soft key [PMC] to

switch to the PMC screen.

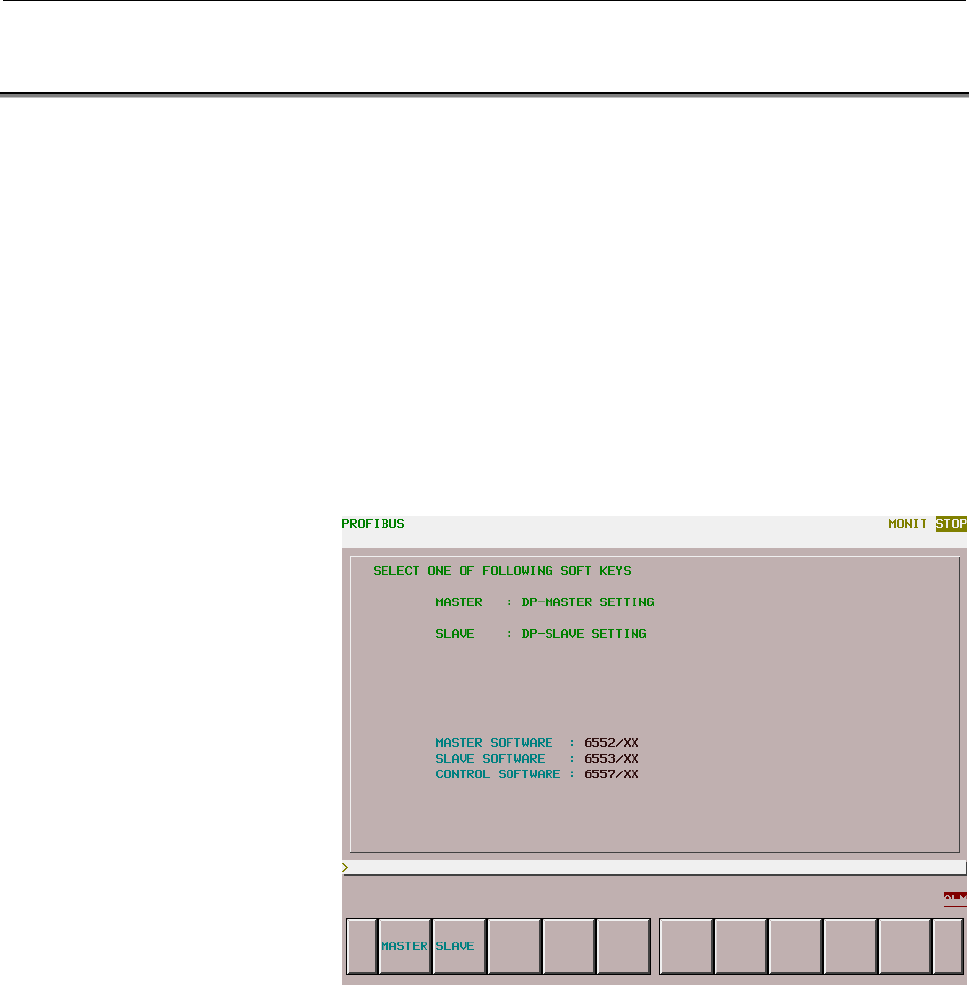

(2) Pressing soft keys [PMCDGN], [IOCHK], and [PROFI] in the

stated order displays Screen A-1.

Screen A-1
