Profibus-DP Board Operators manual Page 229

Operators manual

Page of 322

/ 322

B-62924EN/04 SUPPLEMENT C.SETTING USING A PERSONAL COMPUTER

- 219 -

The format for the FANUC slave stations is used for the module

names in Available Modules on Screen C-11.

CAUTION

For a FANUC slave station, set only one item for

Current Slots.

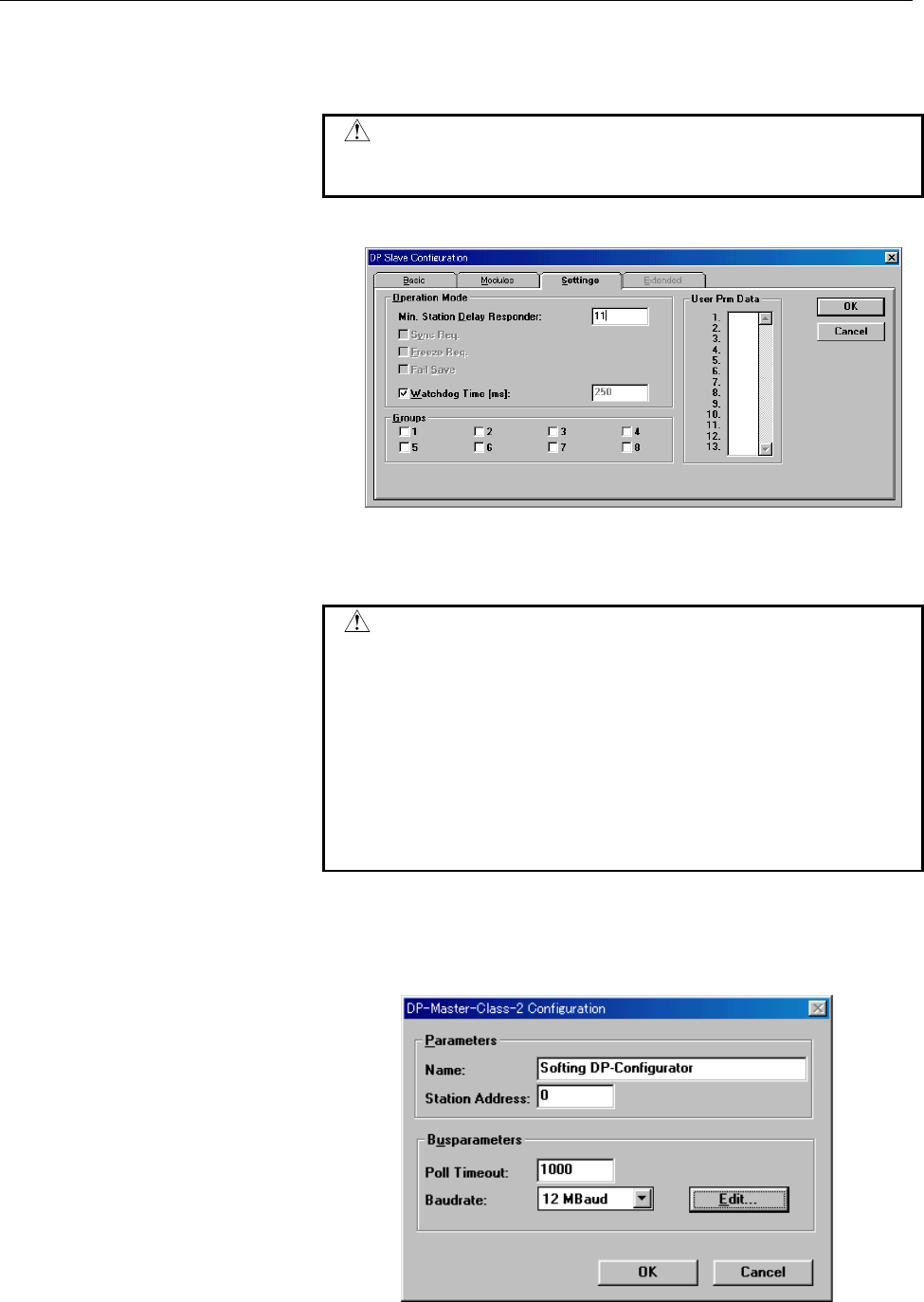

(7) Select the Settings tab on Screen C-11. Screen C-12 is displayed.

Screen C-12

Set each parameter on Screen C-12 when required.

CAUTION

For setting for a FANUC slave station, change the

values for the following two parameters:

- Set 55 for Min. Station Delay Responder on Screen

C-12.

- With PROFIBUS-DP Configurator, the value set for

Watchdog Time cannot be changed. After remote

downloading, set WD FACT1 = WD FACT2 = 10

directly on the slave parameter setting screen of the

FANUC master station.

(8) Then, set the bus parameters to be used when PROFIBUS-DP

Configurator is used as a class-2 master station.

Open Options, then Busparameter Master Class2 on Screen C-8.

Screen C-13 is displayed.
