Profibus-DP Board Operators manual Page 240

Operators manual

Page of 322

/ 322

3/42

SHEETDESCRIPTIONDESIGN DATE EDIT

01 Mutai Newl

istered

TITLE: Additional explanation of

PROFIBUS-DP Master function

(I/O Module Assignment function)

B-62924EN/04-1

FANUC LTD.

02.10.7

DRAW.NO.

1.2 MASTER FUNCTION SETTING

To use the master function, bus parameters and slave parameters must be set, and

addresses must be assigned.

The bus parameters and slave parameters are referenced by the PROFIBUS network. As

for address assignment, PMC addresses used by the DP-Master to transfer DI/DO signals

to and from each DP-Slave are set.

The slave parameters and the address assignment are set for each slave.

The methods of setting the parameters are described below.

NOTE

To set the bus parameters and slave parameters, you can also use

DP-Configurator (tool running on a PC) manufactured by Softing. For

details of this setting, see Section C.1, "Setting Using DP-Configurator

Manufactured BY Softing," in "SUPPLEMENT." of B-62924EN.

Procedure (CRT/MDI)

(1) Press function key <SYSTEM>, then press soft key [PMC] to switch to the PMC

screen.

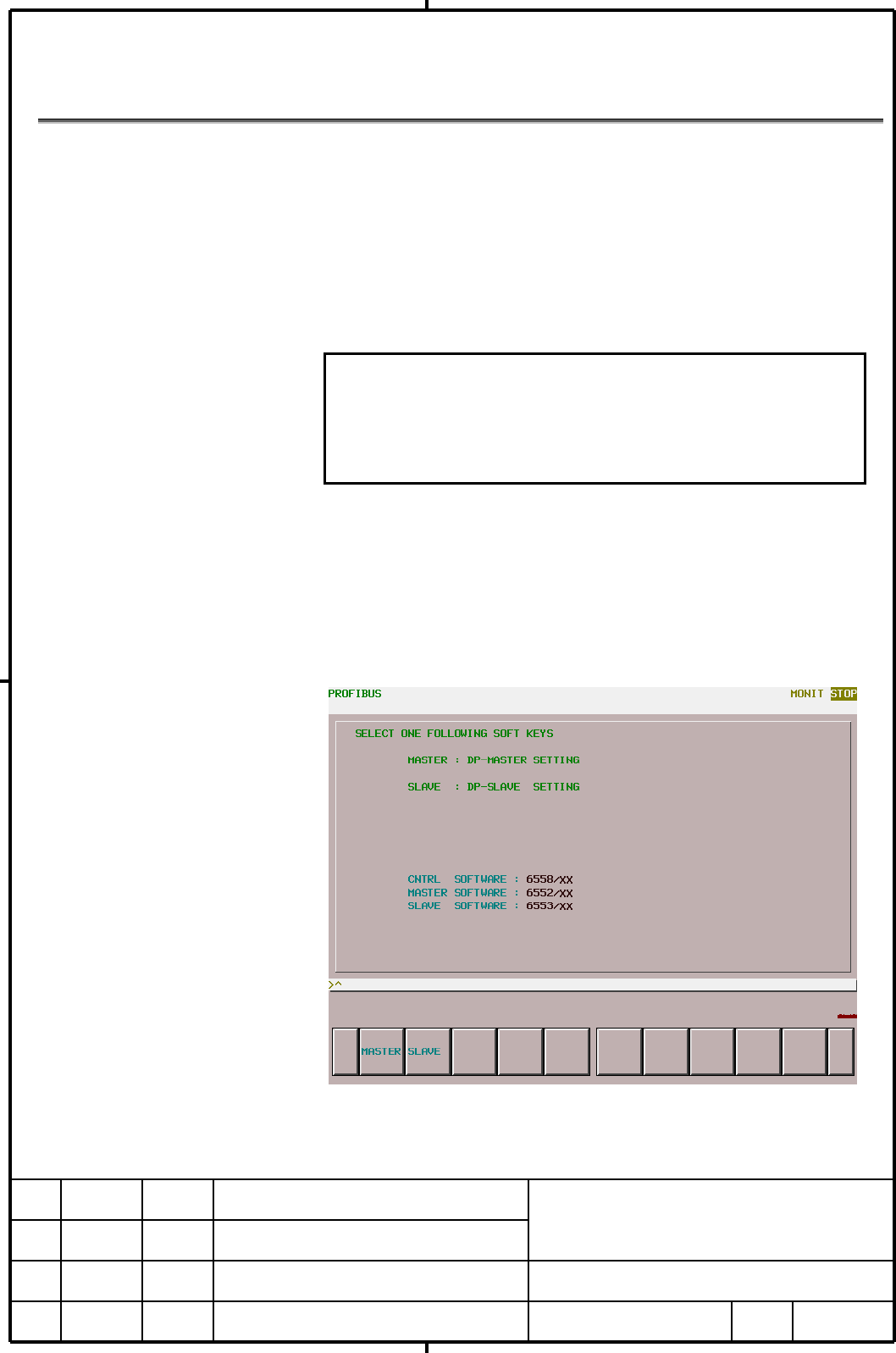

(2) Pressing the soft keys [PMCDGN], [IOCHK], and [PROFI] in the stated order

displays Screen 1-1.

Screen 1-1

Contents Summary of Profibus-DP Board Operators manual

Page 1OPERATOR’S MANUAL B-62924EN/04
Page 2Ȧ No part of this manual may be reproduced in any form. Ȧ All specifications and designs are subject to change without notice. The export of this product is subject to the authorization of the government of the country from where the product is exported. In this manual we have tried as much as possi
Page 3B-63734EN/01 SAFETY PRECAUTIONS SAFETY PRECAUTIONS This section describes the safety precautions related to the use of CNC units, to ensure safe operation of machines fitted with FANUC CNC units. Read this section carefully before attempting to use any funcction described in this manaul. Users ahoul
Page 4SAFETY PRECAUTIONS B-63734EN/01 1.1 DEFINITION OF WARNING, CAUTION, AND NOTE This manual includes safety precautions for protecting the user and preventing damage to the machine. Precautions are classified into Warning and Caution according to their bearing on safety. Also, supplementary information
Page 5B-63734EN/01 SAFETY PRECAUTIONS 1.2 GENERAL WARNINGS AND NOTES WARNING 1 Before operating the machine, thoroughly check the entered data. Operating the machine with incorrect data may result in the machine behaving unexpectedly, possibly causing damage to the workpiece and/or machine itself, or inju
Page 6SAFETY PRECAUTIONS B-63734EN/01 CAUTION 1 Immediately after switching on the power, do not touch any of the keys on the MDI panel until the position display or alarm screen appears on the CNC unit. Some of the keys on the MDI panel are dedicated to maintenance or other special operations. Pressing a
Page 7B-62924EN/04 TABLE OF CONTENTS TABLE OF CONTENTS SAFETY PRECAUTIONS .......................................................................... s-1 I. GENERAL 1 GENERAL ..............................................................................................3 1.1 ORGANIZATION....................
Page 8TABLE OF CONTENTS B-62924EN/04 2.4 SETTING THE SLAVE PARAMETERS FOR USING A SLAVE STATION MANUFACTURED BY FANUC ..............80 2.5 GSD FILE OF THE FANUC CNCS ..............................................................81 3 Power Mate-D/H ..........................................................
Page 9B-62924EN/04 TABLE OF CONTENTS 3.2.2 Mounting the Board............................................................................................. 125 3.2.3 Mounting the Adapter Unit ................................................................................. 126 3.2.4 Connection between the
Page 10TABLE OF CONTENTS B-62924EN/04 2.2.2 LED Indicators of the DP-Slave Function........................................................... 156 3 PROFIBUS FOR THE STAND-ALONE TYPE Series 16i/18i/21i, Series 15i, AND Power Mate i ..........................................................157 3.1 COMPONENT
