3.PROFIBUS FOR THE LCD-MOUNTED TYPE Series 16i/18i/21i CONNECTION B-62924EN/04

- 126 -

3.2.3 Mounting the Adapter Unit

The adapter unit is mounted in the power magnetics cabinet, using the

DIN rail. For the procedure for mounting and removing the adapter

unit on and from the DIN rail, refer to "Connection of connector panel

I/O module" in "Connection Manual (Hardware)" of the

corresponding CNC.

3.2.4 Connection between the PROFIBUS Board and Adapter Units

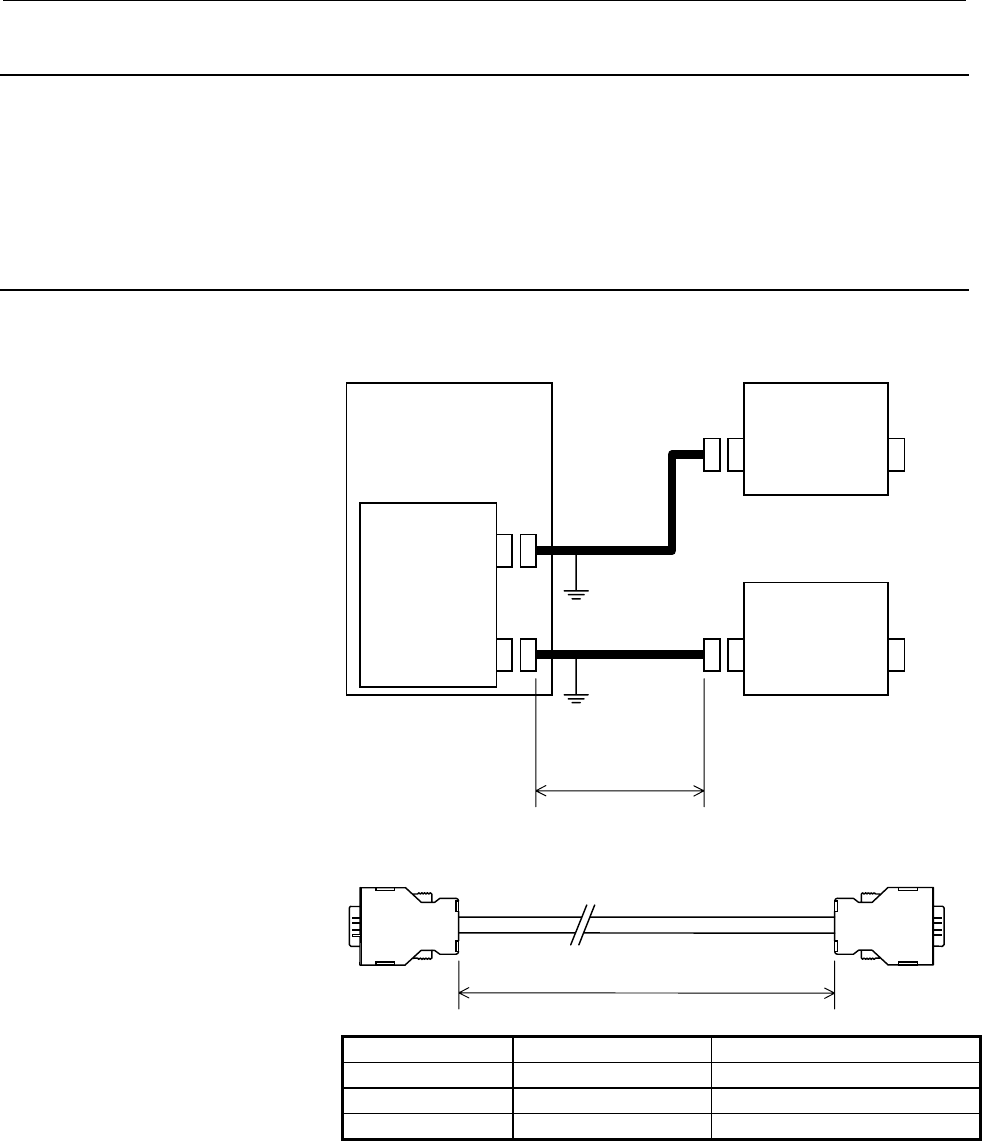

The PROFIBUS board and adapter units are connected by internal

cables, as shown below:

The internal cable as described below is used to connect the

PROFIBUS board and adapter unit:

Name Code Remarks

Connector PCR-E20FS Honda Tsushin Kogyo Co., Ltd.

Housing PCR-V2-LA Honda Tsushin Kogyo Co., Ltd.

Wire A66L-0001-0286

Adapter unit

JN1 CN1

JN1

(Master)

JN2

(Slave)

PROFIBUS board

Adapter unit

JN1 CN1

CNC control unit

MAX. 6 m

L < 6 m
