Profibus-DP Board Operators manual Page 214

Operators manual

Page of 322

/ 322

B.SETTING WHEN SERIES 6556 IS USED SUPPLEMENT B-62924EN/04

- 204 -

B.1.3 Setting for Address Assignment

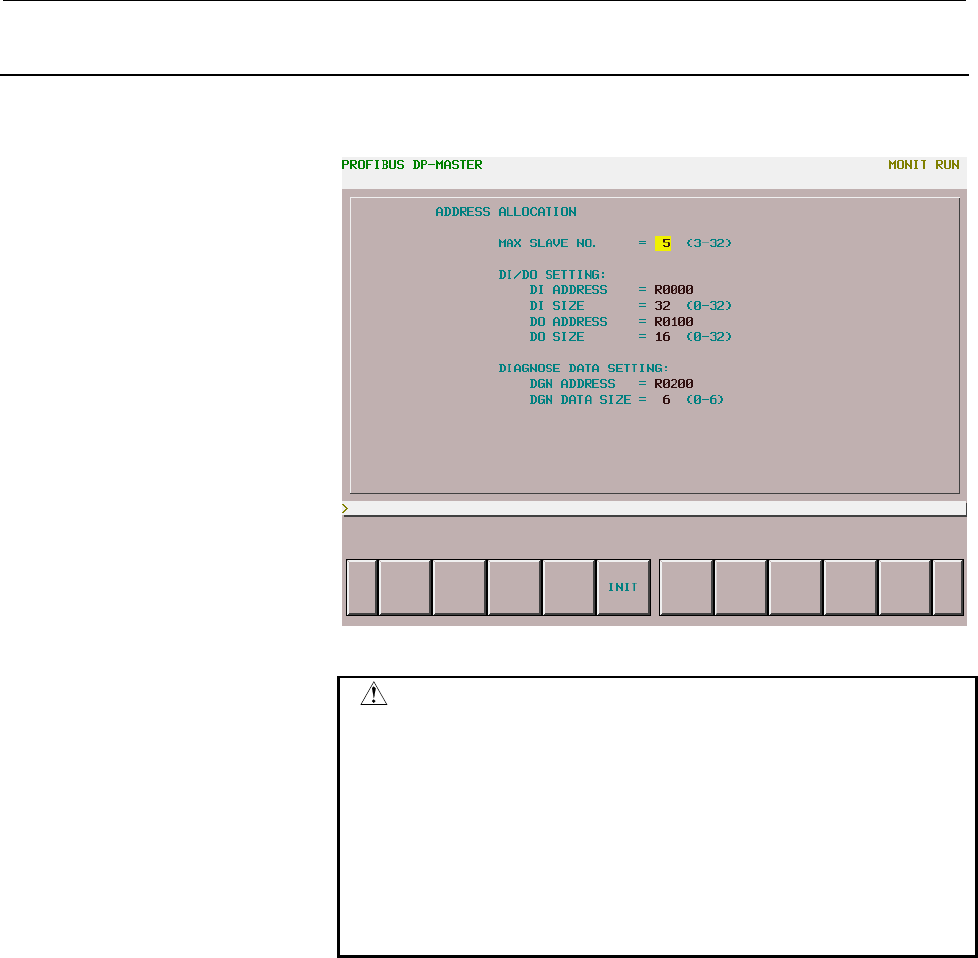

Pressing soft key [ADDR] on Screen B-2 displays Screen B-7.

Screen B-7

CAUTION

When assigning addresses, pay careful attention to the

following points:

1 Ensure that a specified DI data area, DO data area,

and diagnose data area do not overlap one another.

2 Ensure that the specified addresses do not overlap

an area used for a ladder program.

3 Use the R area only. (When using PMC-SB5, be

careful not to exceed R1499. When using PMC-SB6,

be careful not to exceed R2999.)
