Profibus-DP Board Operators manual Page 261

Operators manual

Page of 322

/ 322

24/42

SHEETDESCRIPTIONDESIGN DATE EDIT

01 Mutai Newl

istered

TITLE: Additional explanation of

PROFIBUS-DP Master function

(I/O Module Assignment function)

B-62924EN/04-1

FANUC LTD.

02.10.7

DRAW.NO.

CAUTION

When assigning PROFIBUS data to PMC address, please note the

following.

(1) Only PMC R address area is available.

(When using PMC-SB5, PMC-SB6 or PMC-NB6, more than

R2999 can not be configured.

(2) Ensure that a specified DI data area, DO data area, and

Diagnostic data area do not overlap one another.

(3) Ensure that the specified addresses do not overlap a work area

used for a ladder program.

NOTE

Max 244 bytes are configurable for DI/DO size per each slave.

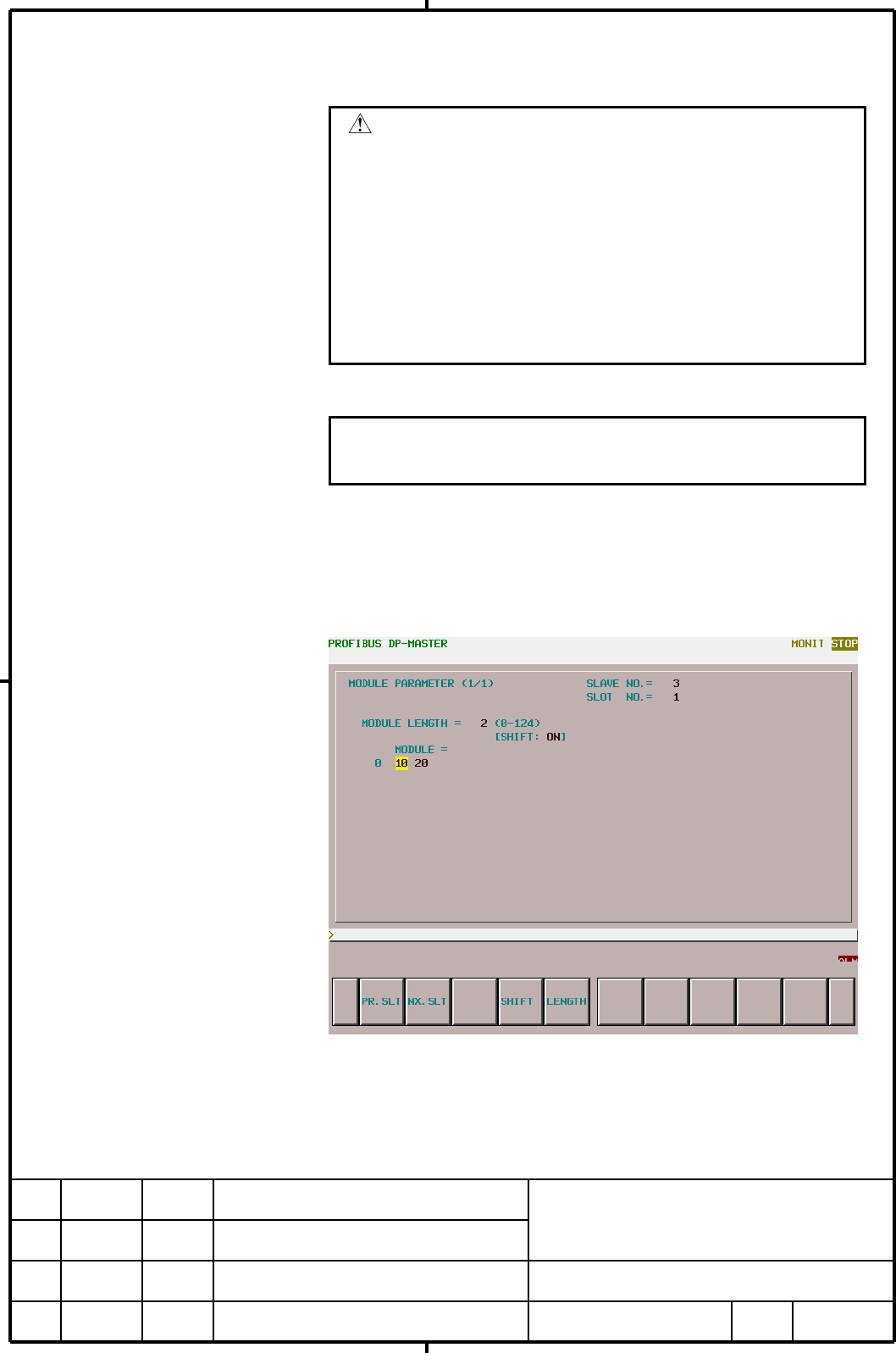

(2) By pressing the soft key [MOD.PR], the Module Setting screen (such as Screen 1-9)

corresponding to the I/O module unit will appear.

For example, Screen 1-9 shows the Module Setting screen of Slot number 1 of Slave

number 3.

Screen 1-9
