B-62924EN/04 MAINTENANCE 1.PROFIBUS FOR THE Series 16/18-C

- 151 -

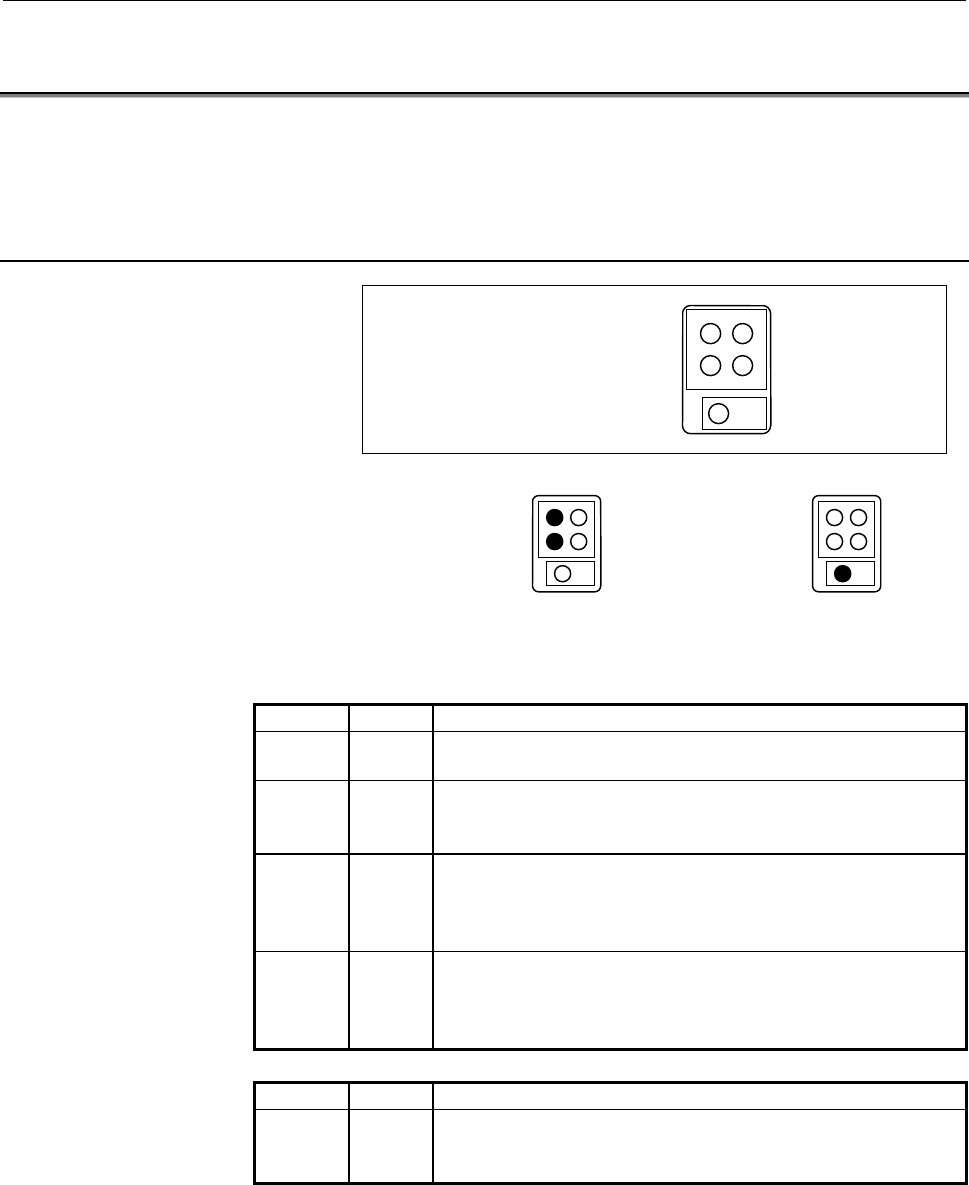

1.2 LED INDICATORS AND THEIR MEANINGS

The PROFIBUS interface board for the Series 16/18-C has two

functions (DP-Master and DP-Slave functions). Each function uses

separate LED indicators.

1.2.1 DP-Master Function LED Indicators

Name Color Description

SYSFAIL Red Indicates the state of the SYSFAIL signal on the PROFIBUS

interface board. It is turned on when the power is switched on.

ALARM Red Software-controlled alarm LED. It is turned on when the power is

switched on. When the DP-Master function is started normally,

the LED is turned off and remains off thereafter.

P-WKR Red Turned on if an SRAM parity error occurs in the DP-Master.

Lit if a parity error has occurred.

The LED does not go on when the power is turned on. Once lit,

the LED continues illuminating until the power is turned off.

P-DPR Red Turned on if a DPRAM parity error occurs in the DP-Master.

Lit if a parity error has occurred.

The LED does not go on when the power is turned on. Once lit,

the LED continues illuminating until the power is turned off.

Name Color Description

TOKEN Green Indicates whether normal communication is performed.

Lit if normal communication is performed.

The LED does not go on when the power is turned on.

P-WKRSYSFAIL

LED1

P-DPR

LARM

LED2 TOKEN

During normal

operation

(communication)

When the power is

switched on

l: On

¡: Off
