B-63330EN/03 1.DISPLAYING PARAMETERS AND PITCH ERROR COMPENSATION DATA

- 3 -

Displaying specified parameters

The Parameter screen consists of multiple pages.

Follow one of the procedures described below to display the specified

parameter.

Method 1

Using the <PAGE ↑> <PAGE ↓> page keys, and the <↑> <↓>

<←> <→> cursor keys, move the cursor to display the desired

parameter.

Method 2

(1) Click the [NO. SEARCH] soft key.

(2) Key in the number of the parameter to be displayed.

(3) Click the [EXEC] soft key.

Method 3

(1) Key in the number of the parameter to be displayed.

(2) Click the [NO. SEARCH] soft key.

Select Group screen

The Select Group screen can be used to display a selected group of

parameters.

Displaying the Select Group screen

On the Parameter screen, select the [SELECTGROUP] soft key.

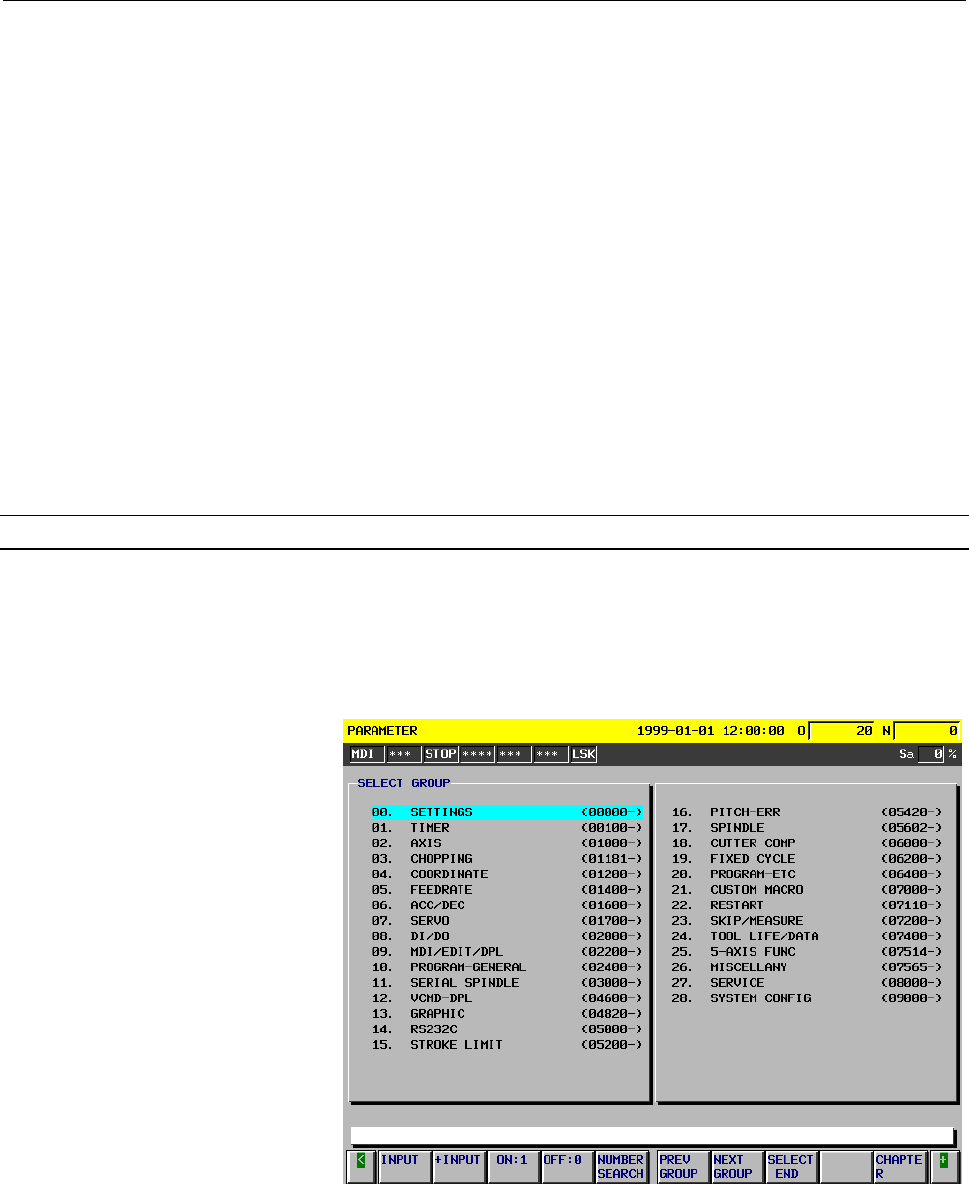

Fig. 1.1 (b) Select Group Screen
