B-63330EN/03 1.DISPLAYING PARAMETERS AND PITCH ERROR COMPENSATION DATA

- 5 -

1.2 DISPLAYING PITCH ERROR COMPENSATION DATA

The Pitch Error Compensation screen displays the values specified for

pitch error compensation data.

Pitch Error Compensation screen

Displaying the Pitch Error Compensation screen

Follow either of the procedures described below to display the Pitch

Error Compensation screen.

Method 1

Press the <SYSTEM> function key several times, until the Pitch

Error Compensation screen appears.

Method 2

(1)

Press the <SYSTEM> function key.

(2) Click the [PITCH ERROR] soft key.

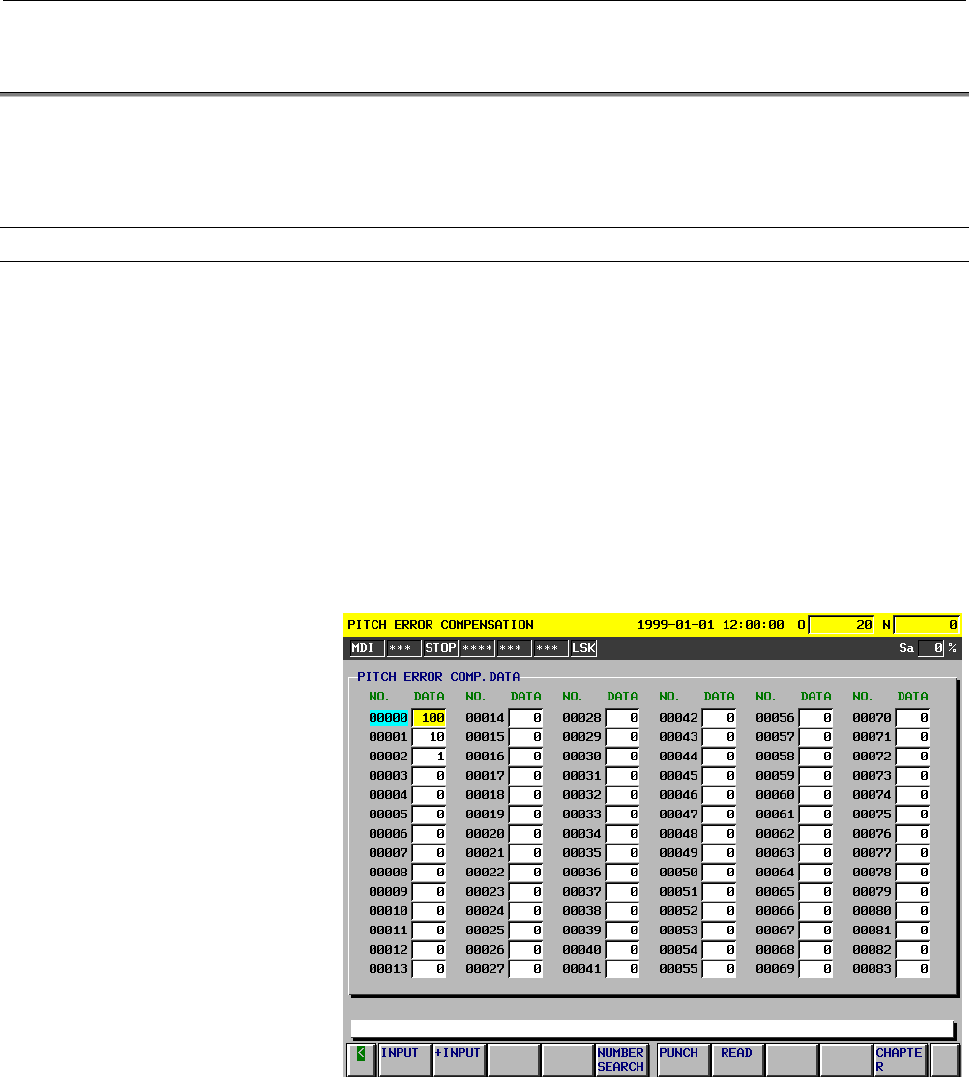

Fig. 1.2 (a) Pitch Error Compensation Screen
