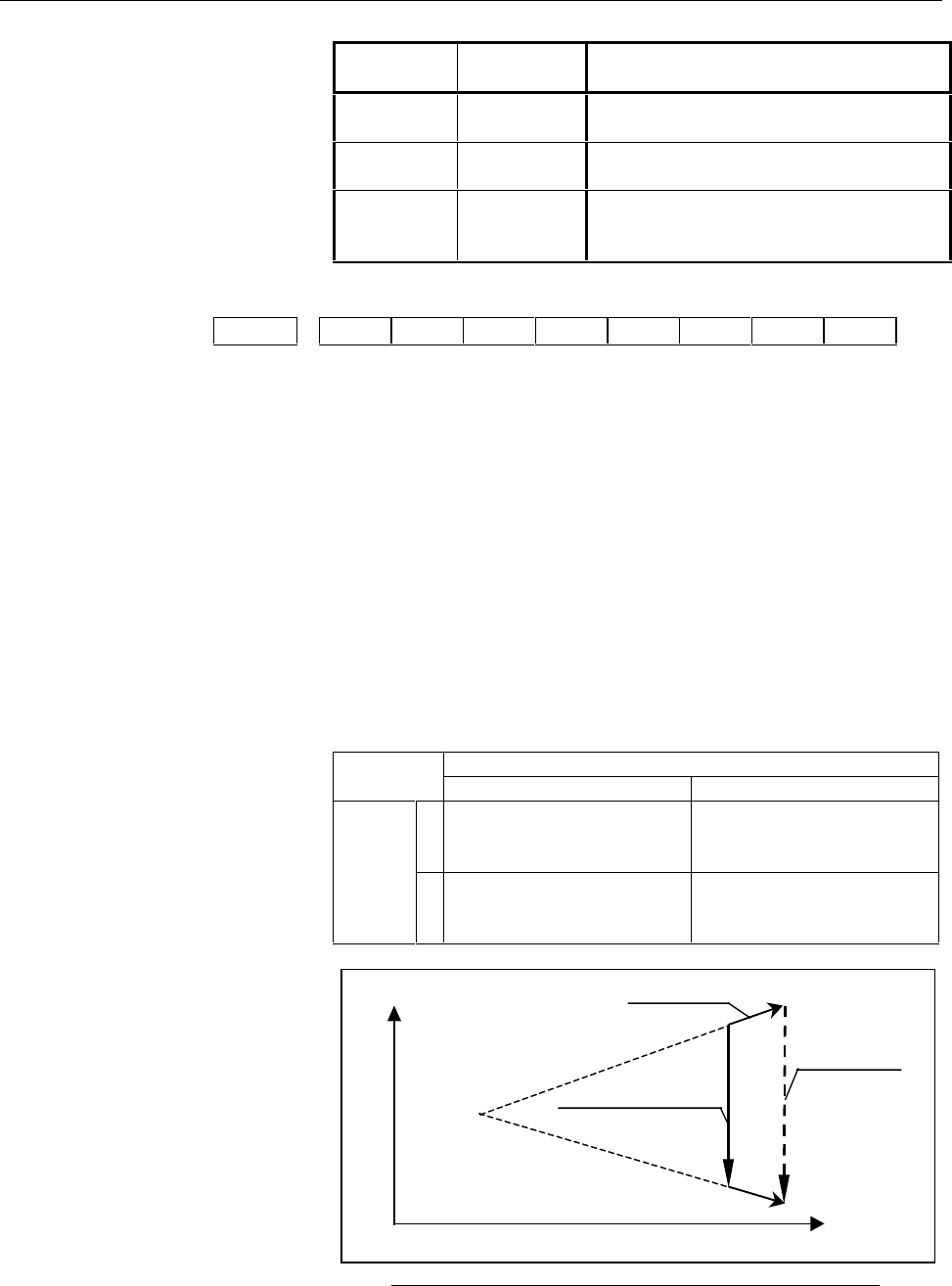

Series 15i/150i - Model A Parameter manual Page 280

Parameter manual
B-63330EN/03 4.DESCRIPTION OF PARAMETERS
- 273 -
ZMV
(No.6007#5)
EVO
(No.6000#0)
Time when a new offset becomes valid
- 0 New offset becomes valid in a block
specifying the next H code.
0 1 New offset becomes valid in a block to be
buffered next.
1 1 New offset becomes valid in a block
specifying the next Z-axis move command
or H code.
#7 #6 #5 #4 #3 #2 #1 #0
6008 NAG NAA CAV WCD CCC ODI
[Input type] Parameter input
[Data type] Bit
#0 ODI The tool compensation value is:
0: Used as the radius.
1: Used as the diameter.
#2 CCC Specifies whether the type of outer corner connection in the cutter
compensation mode is linear connection type or circular connection
type.
0: Linear connection type
1: Circular connection type
#3 WCD Specify the direction of the compensation vector that differs
according to the sign of the offset value in grinding wheel wear
compensation.
Offset value in D code
Negative Positive
0
From compensation center
toward command end
position
From command end position
toward compensation center
6008#3
1
From command end position
toward compensation center
From compensation center
toward command end
position
Compensation vector
Programmed path
Tool center path
Compensation
center
Z
Y
From compensation center toward command end position
