B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES

- 89 -

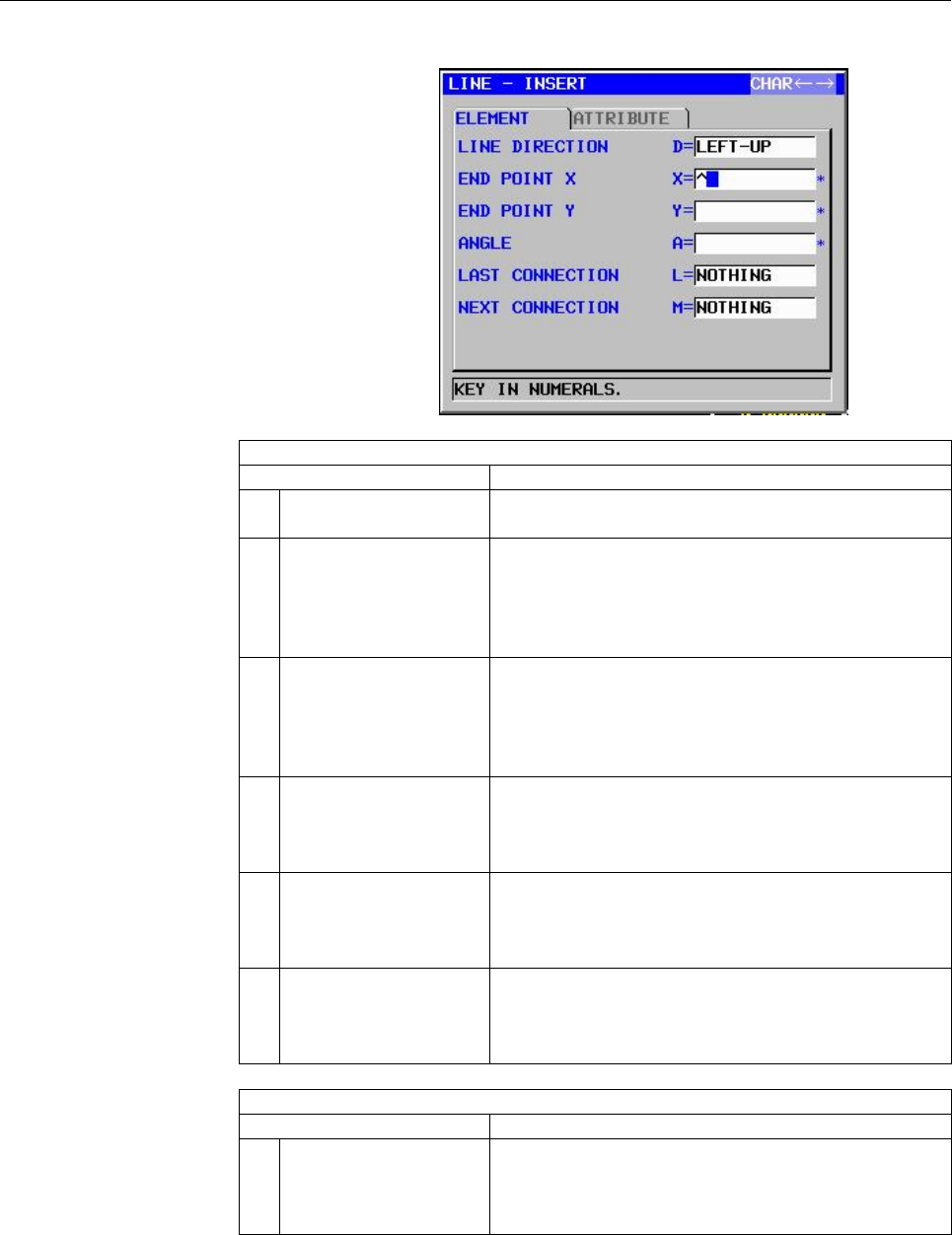

Straight line: G1201 (XY plane)

ELEMENT (INPUT DATA) (Note 1)

Data item Meaning

D LINE DIRECTION The direction of a straight line is selected from a menu

indicated on a soft key.

X* END POINT X X coordinate of the end point of a straight line

Remarks1) This data may not be displayed depending

on the value entered as the direction of the

straight line.

Remarks2) Incremental programming is possible.

Y* END POINT Y Y coordinate of the end point of a straight line

Remarks1) This data may not be displayed depending

on the value entered as the direction of the

straight line.

Remarks2) Incremental programming is possible.

A* ANGLE Straight-line angle

Remarks) This data may not be displayed depending

on the value entered as the direction of the

straight line.

L LAST CONNECTION [TANGNT] : In contact with the immediately preceding

figure

[NO SET] : Not in contact with the immediately

preceding figure (initial value)

M NEXT CONNECTION [TANGNT] : In contact with the immediately following

figure

[NO SET] : Not in contact with the immediately

following figure (initial value)

ATTRIBUTE (INPUT DATA) (Note 1)

Data item Meaning

T ELEMENT TYPE [PART] : Cut as parts

[BLANK] : Cut as a blank portion

Remarks) The system sets the last data as an initial

value.
