Manual Guide i Operators manual Page 231

Operators manual

Page of 888

/ 888

B-63874EN/05 OPERATION 9.MACHINING SIMULATION AND DRAWING DURING MACHINING

- 209 -

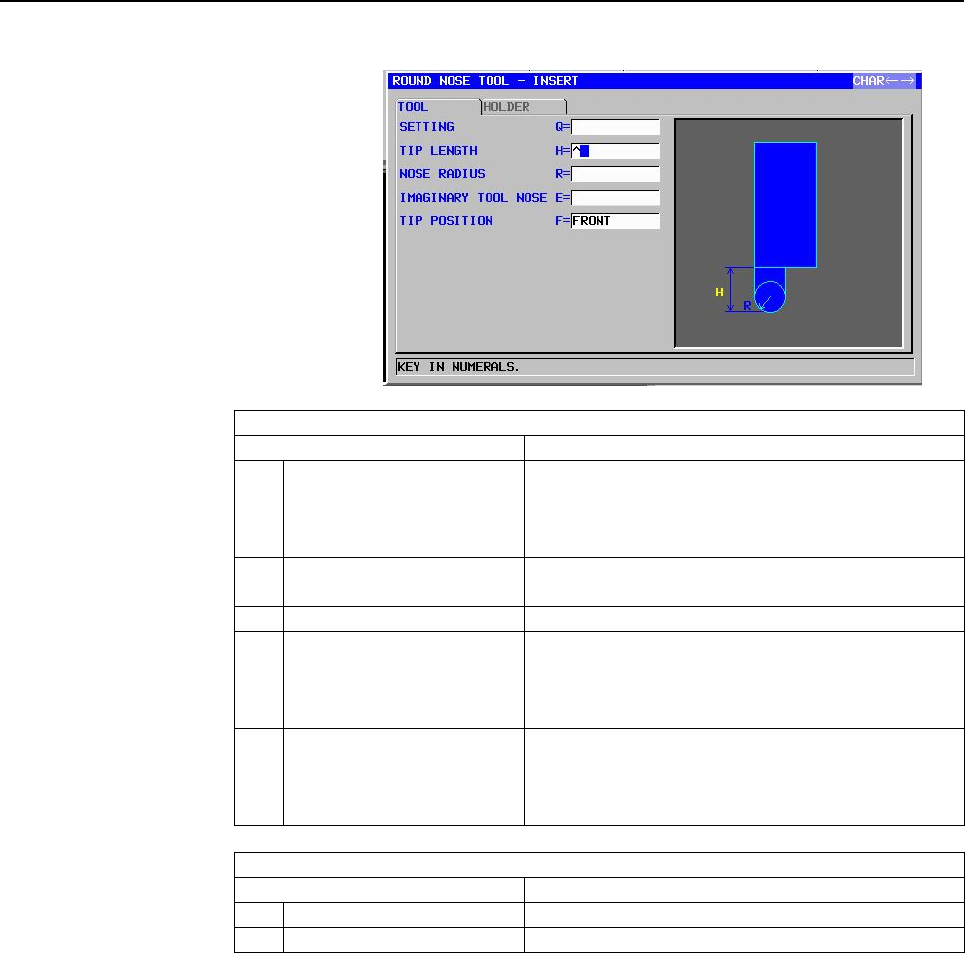

Tool definition block (round tool): G1913

TOOL

Data item Meaning

Q SETTING Tool installation direction. Select the number of an

installation method from the illustration.

Remark) To be selected visually for both vertical

and horizontal lathes.

H TIP LENGTH Length of the cutting portion of the round-nose tool

(positive value)

R NOSE RADIUS Radius of the tool nose (positive value)

E IMAGINARY TOOL NOSE Imaginary tool nose position. Select a number from

the menu indicated in the illustration.

Remark) To be selected visually for both vertical

and horizontal lathes.

F TIP POSITION [FRONT] : Display the tip in front of the holder. (tool

for forward spindle rotation)

[REAR] : Display the tip in the rear of the holder.

(tool for reverse spindle rotation)

HOLDER

Data item Meaning

L* HOLDER LENGTH Length of the holder (positive value)

W* HOLDER WIDTH Width of the holder (positive value)

Contents Summary of Manual Guide i Operators manual
