B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES

- 145 -

5.6.3 Executing Arbitrary Figure Copy Operation

Use the operation procedure described below.

(Example) Parallel copy

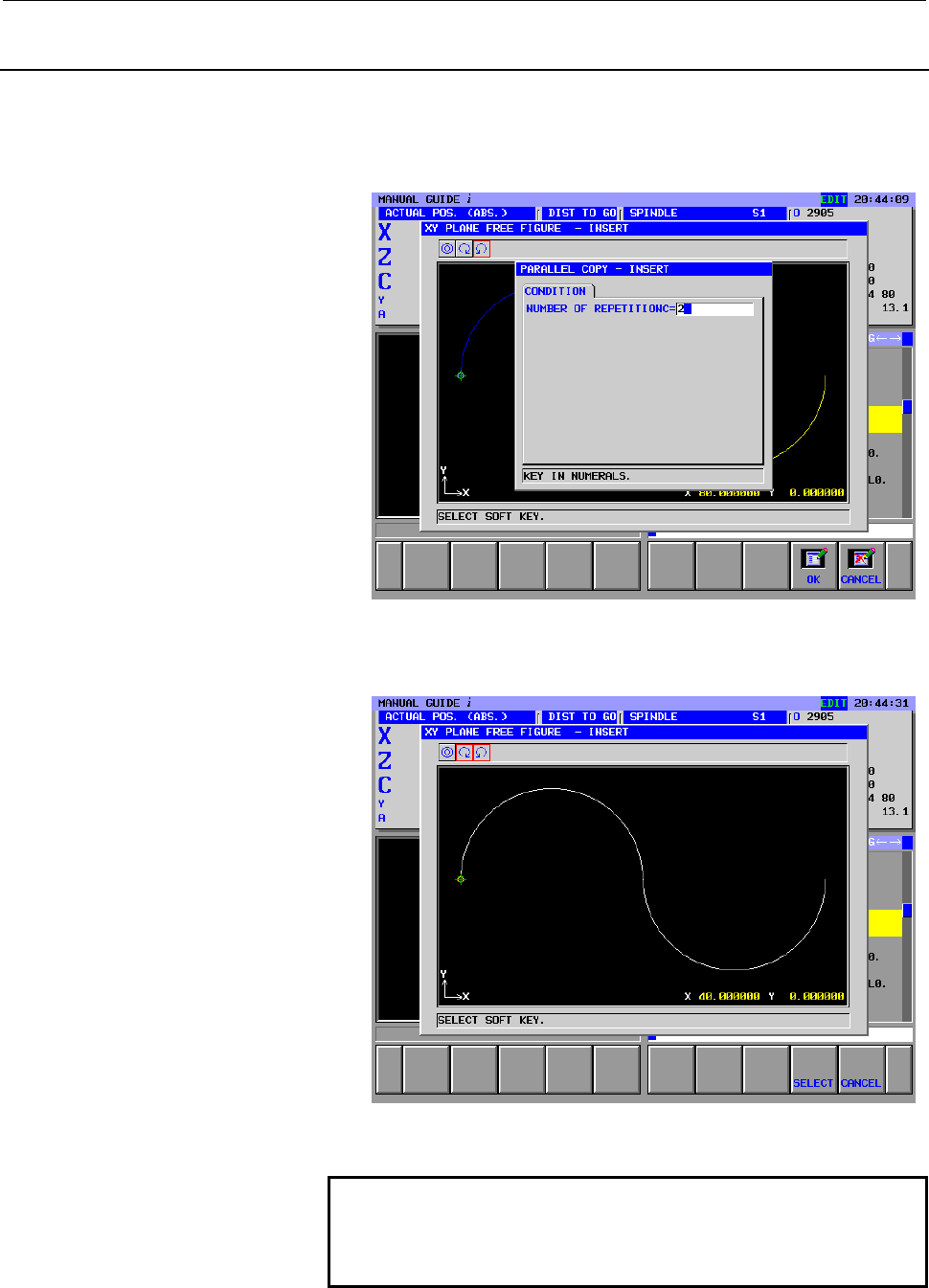

<1> Enter the number of repetition on the copy input screen then

press the [OK] soft key.

<2> The screen for specifying an area of figure used as a copy source

appears. Move the cursor to the icon of the figure element at

the start of the area, then press the [SELECT] soft key.

Pressing the [CANCEL] soft key returns the screen display to the

arbitrary figure editing screen.

NOTE

A selected copy source ranges from the figure

where the cursor is placed when the [SELECT] soft

key is pressed to the last figure.
