B-63874EN/05 CYCLE MACHINING TYPES 3.SLANT FACE MACHINING (COORDINATE CONVERSION)

- 577 -

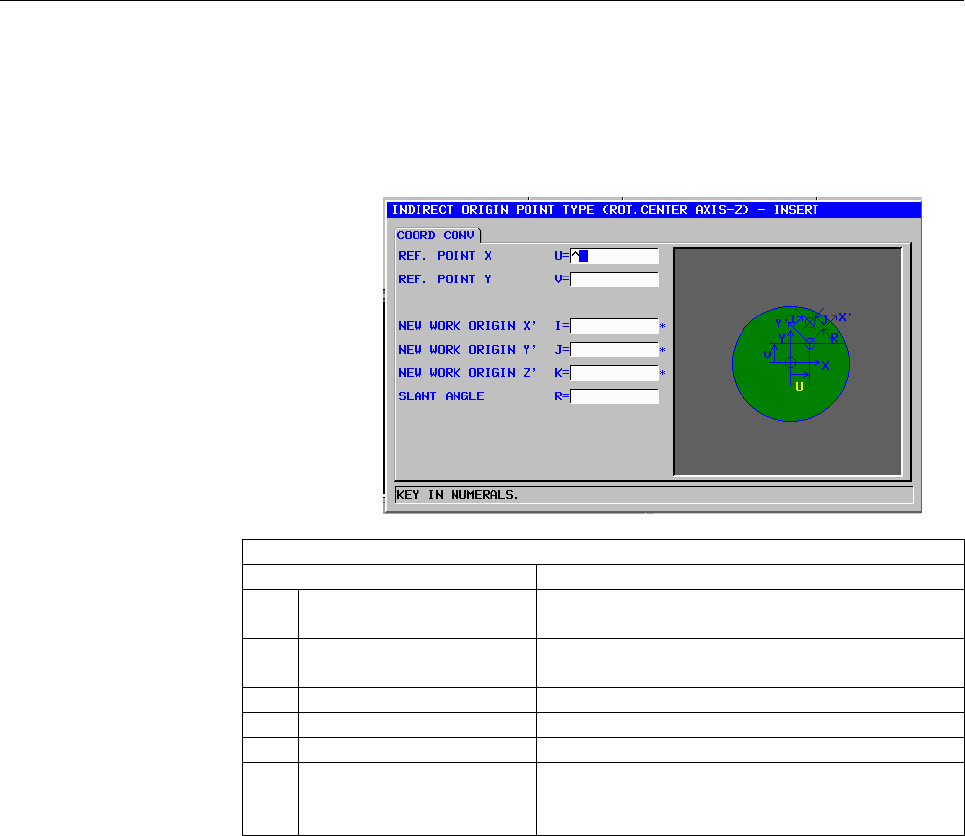

Indirect origin specification (with the rotation center on the Z-axis): G1955

The machining plane rotates about a specified reference point. Define

the workpiece origin of the XY plane, which is a new machining plane,

by specifying the distance (positive/negative value) from the reference

point.

COORD CONVERSION

Data item Meaning

U REF. POINT X X coordinate of a reference point (workpiece

coordinate system before rotation)

W REF. POINT Y Y coordinate of a reference point (workpiece

coordinate system before rotation)

I NEW WORK ORIGIN X’ X coordinate of the workpiece origin of the slant

J NEW WORK ORIGIN Y’ Y coordinate of the workpiece origin of the slant

K NEW WORK ORIGIN Z’ Z coordinate of the workpiece origin of the slant

R SLANT ANGLE Signed angle with respect to the Z-axis. The CW

direction viewed from the plus rotation axis

direction is positive (-90 ≤ R ≤ 90).
