3.MACHINING CENTER EXAMPLE OF PROGRAMMING B-63874EN/05

- 720 -

3.5.2 Operations of “START” Menu

By pushing [START] in the soft-key menu for milling, the window

“INSERT STARTING COMMAND FOR MILLING” with the

following tabs is displayed.

<START> : Fixed form sentence menu used for the top of

part program or each machining process.

<COORD CONV> : Coordinate conversion menu, which is

necessary for the machine on the inclined

surface, this is not used in this section.

<BLANK> : Blank form menu, which is necessary for

animation.

3.5.2.1 Entering blank form data

By selecting a tab <BLANK> by cursor key, blank form menu is

displayed.

Enter blank form data as a round bar.

(INSERT STARTING COMMAND FOR MILLING)

<BLANK>

↓

<<1. RECTANGULAR BLANK FIGURE>>

[SELECT]

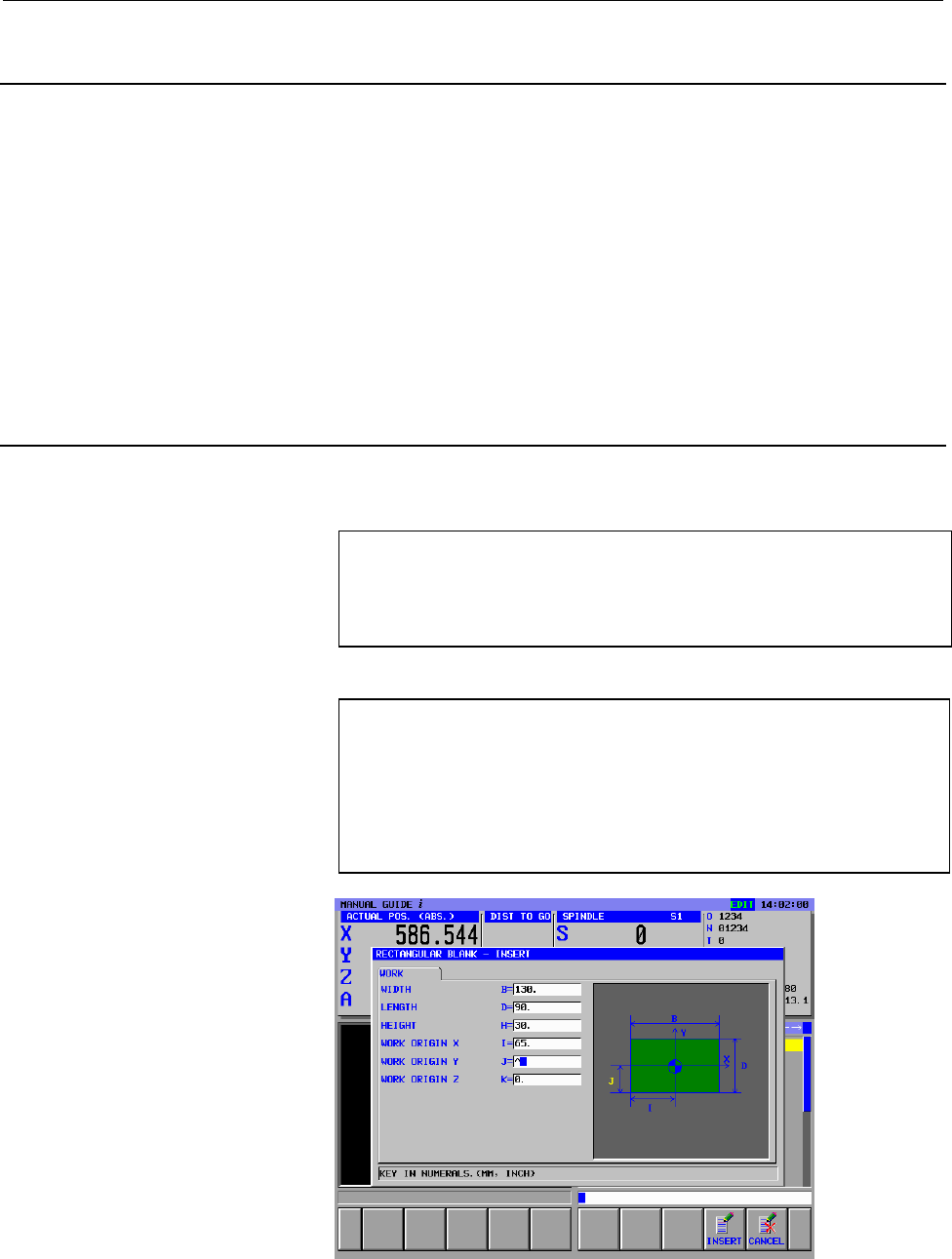

(RECTANGULAR BLANK FIGURE - INSERT)

130 INPUT (WIDTH)

90 INPUT (LENGTH)

30 INPUT (HEIGHT)

65 INPUT (WORK ORIGIN X)

45 INPUT (WORK ORIGIN Y)

0 INPUT (WORK PROGIN Z)

[INSERT]
