Manual Guide i Operators manual Page 88

Operators manual

Page of 888

/ 888

4.EDITING CYCLE MACHINING OPERATIONS OPERATION B-63874EN/05

- 66 -

4 EDITING CYCLE MACHINING

OPERATIONS

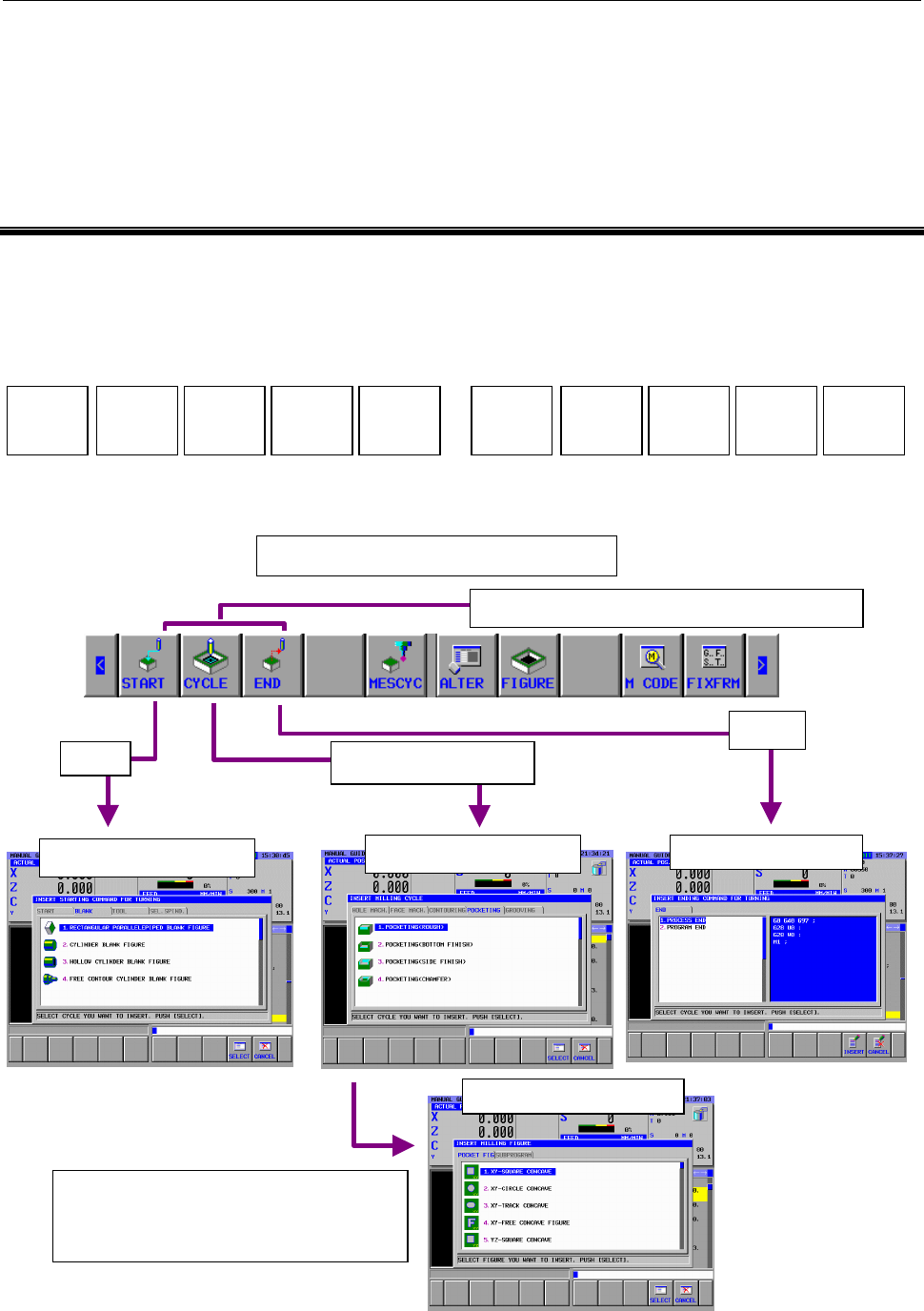

Pressing the leftmost soft key [<] or rightmost soft key [>] several

times displays the following cycle machining soft key menu.

Two cycle machining types, milling and turning, are optionally

supported. A soft key menu is available for each cycle machining

type.

See Sections 3.13 and 3.14 for explanations about [M CODE] and

[FIXFRM].

FIXFRM

M CODE

FIGURE

ALTERMESCYC

END

CYCLE

START

Process Cycle Menu

Only the menu of the cycle form which

can be used in the selected

processing cycle is displayed

automaticall

Process End Menu

Soft key menus for process programming

tart Cycle Processing

End

Process Start Menu

cle Sha

e Menu

Flow of creating a part program
