1.MILLING CYCLE MACHINING TYPES B-63874EN/05

- 382 -

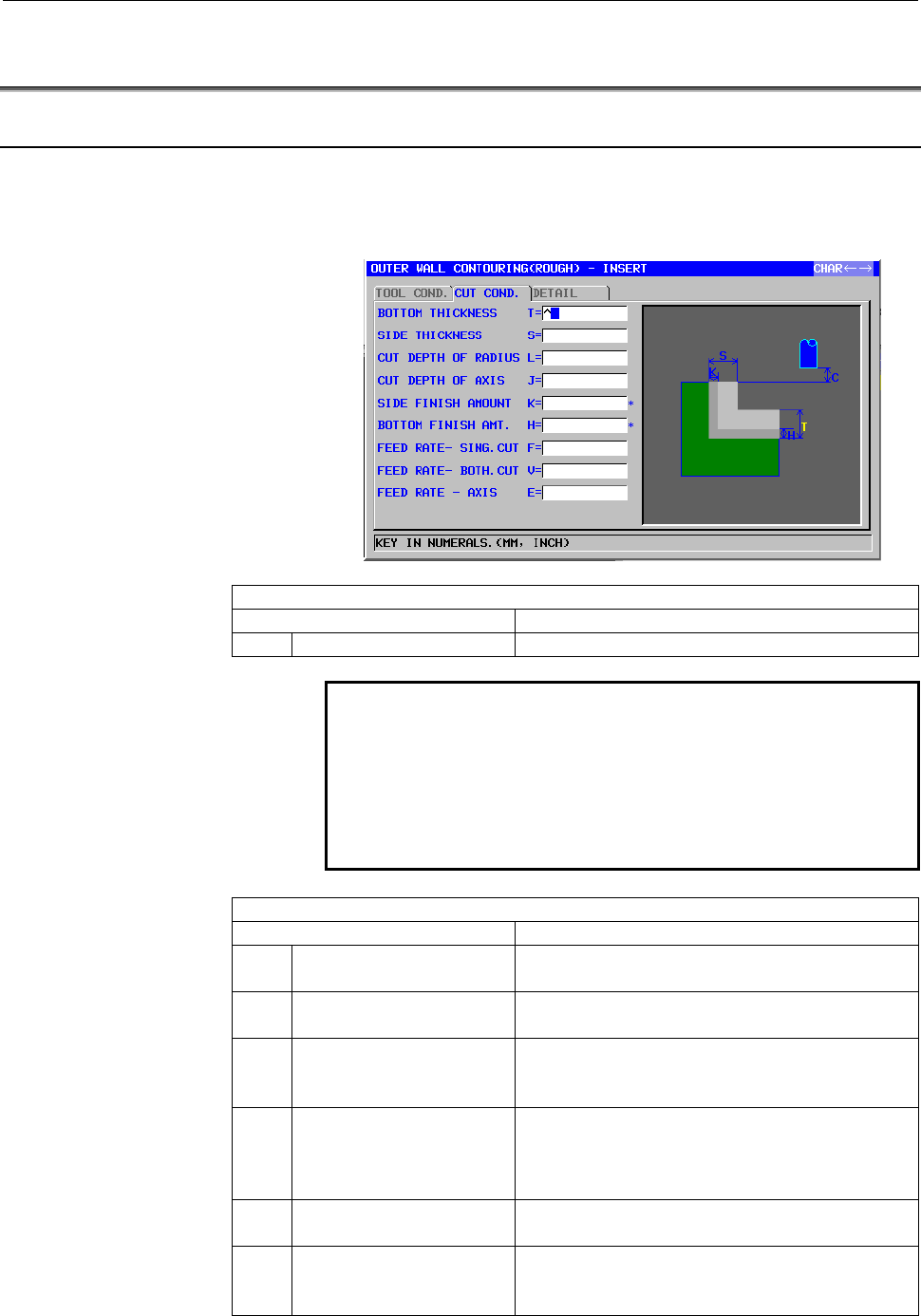

1.4 CONTOURING

1.4.1 Machining Type Blocks for Contouring

Outer Wall Rough: G1060

Inner Wall Rough: G1054

Partial Rough: G1068

TOOL COND.

Data item Meaning

D TOOL DIAMETER End mill diameter

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27002 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

CUT COND

Data item Meaning

T BOTTOM THICKNESS Cutting allowance of the bottom in side face

machining (radius value, positive value)

S SIDE THICKNESS Cutting allowance of the side face (radius value,

positive value)

L CUT DEPTH OF RADIUS Depth of cut per side face machining operation (in

the tool radius direction) (radius value, positive

value)

J CUT DEPTH OF AXIS Depth of cut in the tool axis direction per cutting

operation (radius value, positive value)

The default is (bottom surplus thickness - bottom

finishing allowance).

K* SIDE FINISH AMOUNT Finishing allowance on the side face. The blank is

regarded as 0. (radius value, positive value)

H* BOTTOM FINISHI AMT. Finishing allowance at the bottom in side face

machining. The blank is regarded as 0. (radius

value, positive value)
