B-63874EN/05 EXAMPLE OF PROGRAMMING 2.LATHE

- 703 -

Figure blocks can be registered into the current part program directly,

and also can be registered as another sub program.

Registered figure blocks can be used also for finishing, so in this

example, register them as a sub program.

NOTE

Registered sub program can be displayed in a figure

menu tab, “SUBPROGRAM”.

In this case, set the parameters No14720 to 14723

in advance.

For this example, set those parameters as follow.

No.14720=8000 (Minimum program number of sub

programs displayed in the turning

machining sub program menu)

No.14721=8499 (Maximum program number of sub

programs displayed in the turning

machining sub program menu)

No.14722=8500 (Minimum program number of sub

programs displayed in the milling

machining sub program menu)

No.14723=8999 (Maximum program number of sub

programs displayed in the milling

machining sub program menu)

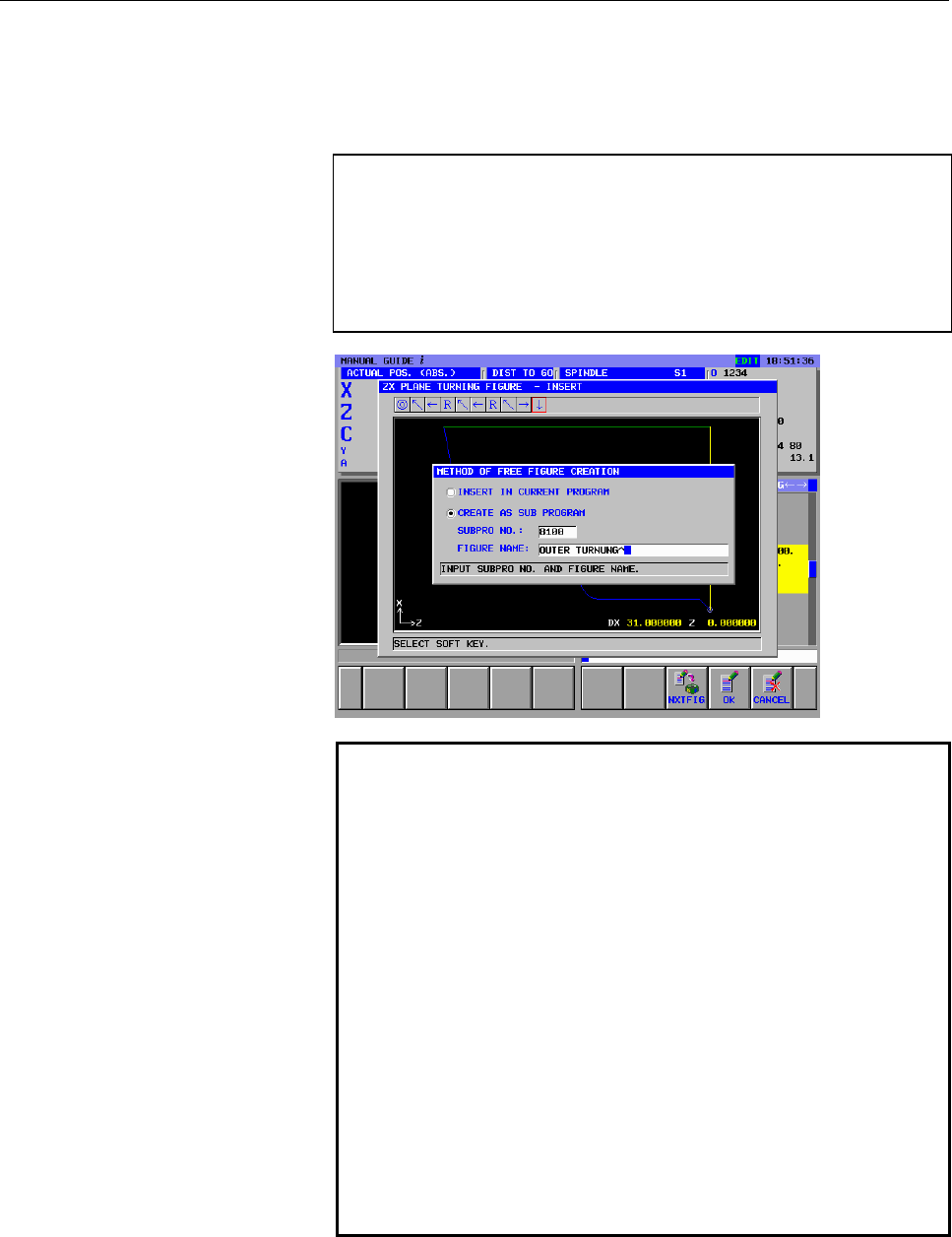

(ZX PLANE TURNING FIGURE - INSERT)

[CREATE]

(METHOD OF FREE FIGURE CREATION)

↓

8100 INPUT (SUBPRO NO.)

OUTER TURNING (FIGURE NAME)

[OK]
