2.TURNING CYCLE MACHINING TYPES B-63874EN/05

- 498 -

DETAIL

Data item Meaning

X POCKET CUTTING [CUT] : Cuts a pocket. (initial value)

[NOTHIN] : Does not cut a pocket.

Remark) This data item is enable when the

parameter No.27100#1 = 1.

Y OVERHANG CUTTING [CUT] : Cuts an overhang. (initial value)

[NOTHIN] : Does not cut an overhang.

Remark) This data item is enable when the

parameter No.27100#1 = 1.

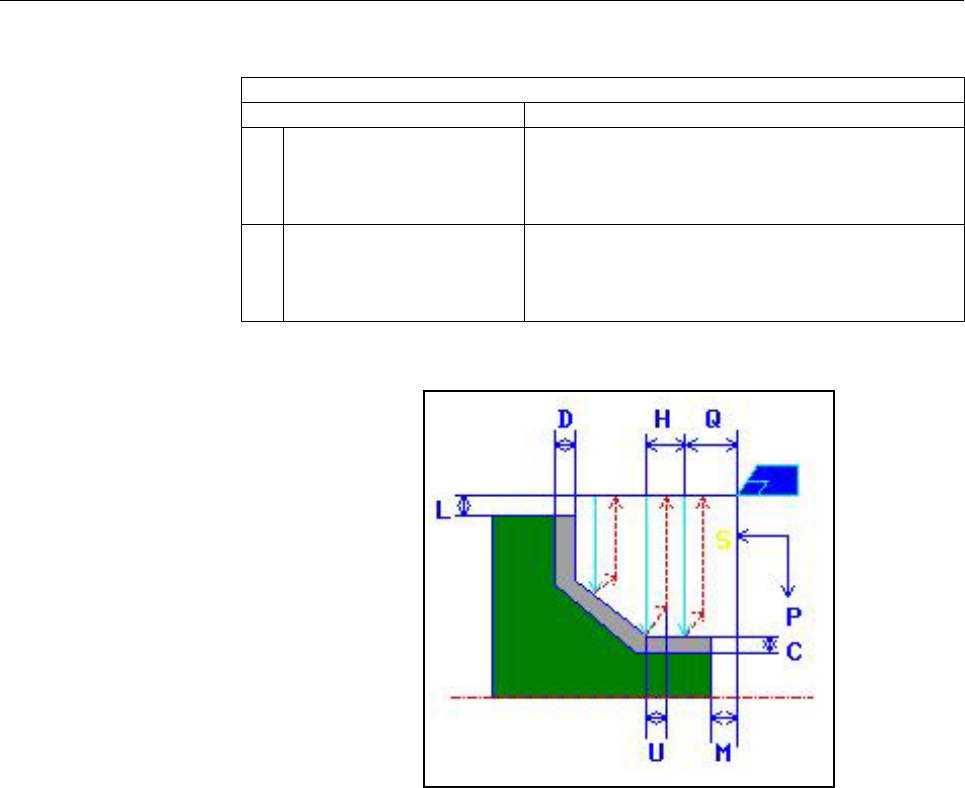

• Tool path

<1> The tool moves to the position "cut-in start point + clearance (L,

M)" by rapid traverse.

<2> After cutting in in the Z-axis direction at the feedrate (F)

specified for the cutting direction, the tool cuts in to the

entered-figure position where there is still a finishing allowance

in the X-axis direction at the feedrate (E) specified for the cut-in

direction.

<3> If [SPEED] is selected, the tool immediately retracts by a return

clearance (U) in the X- and Z-axis direction. If [CUT] is selected,

the tool first cuts along the figure and then retracts by a return

clearance (U) in the X- and Z-axis direction.

<4> The tool moves to the cut-in start position in the X-axis direction

by rapid traverse.

<5> Steps <2> to <4> are repeated until the lowest portion in the

Z-axis direction is reached.

<6> If there is another pocket, the tool is positioned on the pocket,

and steps <2> to <4> are repeated.

<7> Once all portions are cut, the tool retracts to the position "cut-in

start position + clearance (M)" in the Z-axis direction at the rapid

traverse rate.
