5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES OPERATION B-63874EN/05

- 112 -

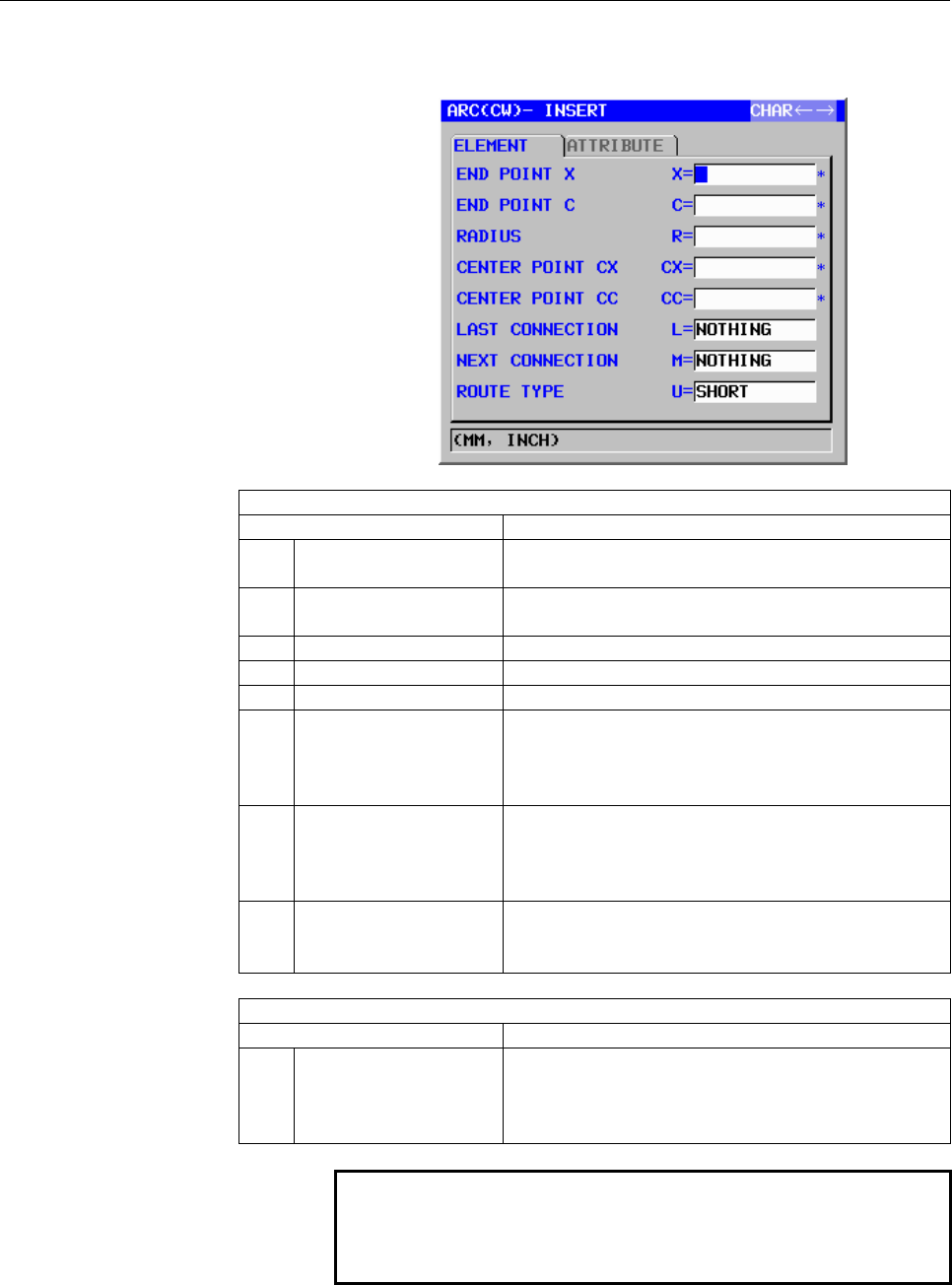

Arc (CW): G1502 (XC plane)

Arc (CCW): G1503 (XC plane)

ELEMENT (INPUT DATA) (Note 1)

Data item Meaning

X* END POINT X X coordinate of an arc end point

Remarks) Incremental programming is possible.

C* END POINT C C coordinate of an arc end point

Remarks) Incremental programming is possible.

R* RADIUS Arc radius

CX* CENTER POINT CX X coordinate of an arc center

CC* CENTER POINT CC C coordinate of an arc center

L LAST CONNECTION [TANGNT] : In contact with the immediately preceding

figure

[NO SET] : Not in contact with the immediately

preceding figure (initial value)

M NEXT CONNECTION [TANGNT] : In contact with the immediately preceding

figure

[NO SET] : Not in contact with the immediately

preceding figure (initial value)

U ROUTE TYPE [LONG] : An arc with a long route is made

[SHORT] : An arc with a short route is made

(initial value)

ATTRIBUTE (INPUT DATA) (Note 1)

Data item Meaning

T ELEMENT TYPE [PART] : Cut as parts

[BLANK] : Cut as a blank portion

Remarks) The system sets the last data as an initial

value.

NOTE

1 ‘INPUT DATA’ means the items, which are

displayed on the input data window in editing or

altering.
