Manual Guide i Operators manual Page 73

Operators manual

Page of 888

/ 888

B-63874EN/05 OPERATION 3.EDITING MACHINING PROGRAMS

- 51 -

3.2 CREATING MACHINING PROGRAMS

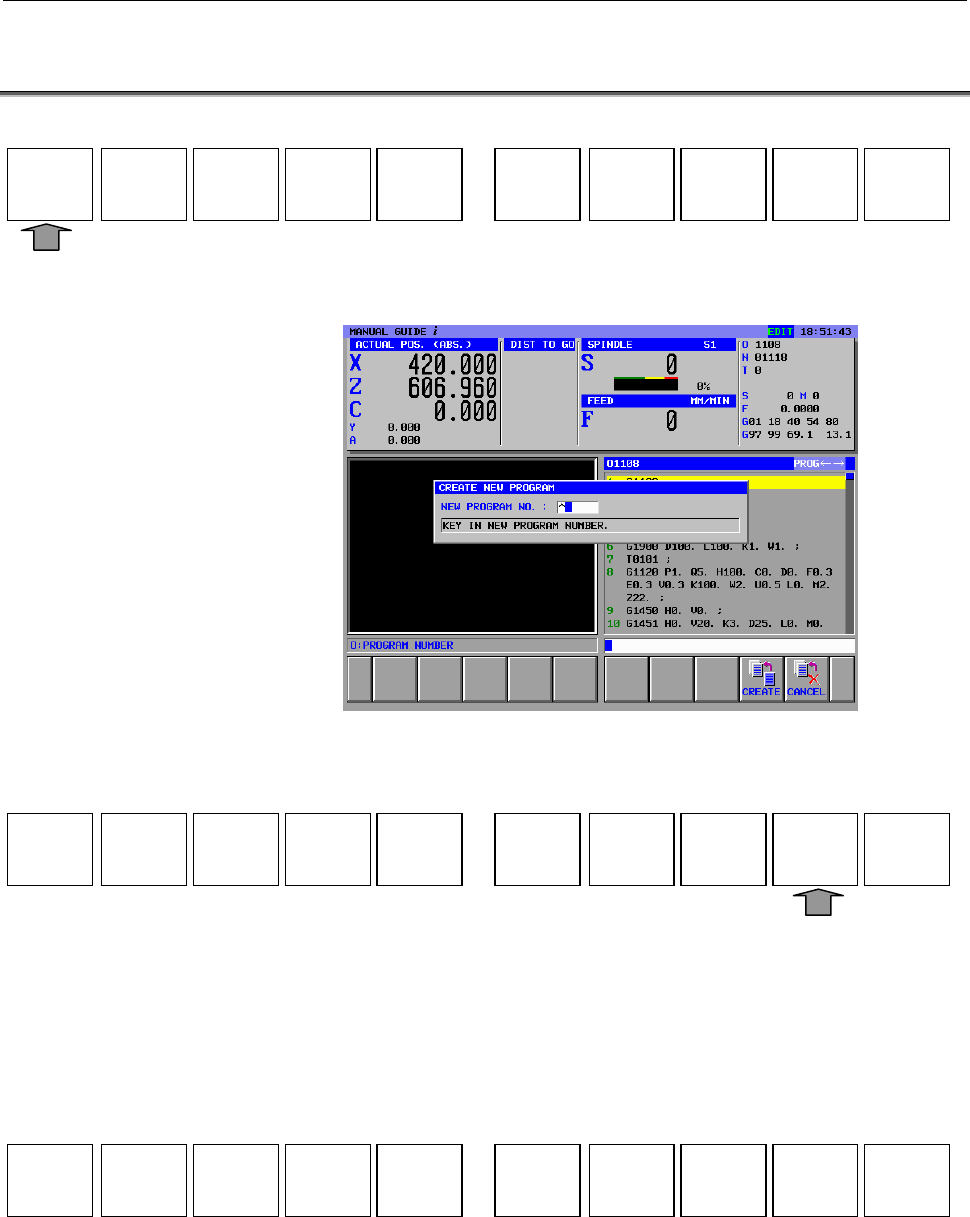

Pressing [NEWPRG] displays the program creation window.

For the program creation window, the following soft keys are

displayed.

In this window, enter a program number, using numeric keys, and then

press [CREATE].

Usually, the program number is 4 digits, but you can use 8 digits

program number when the corresponding optional function is added.

Pressing [CREATE], new program with entered program number only

is created, and it is displayed in the program window. In that case, the

following soft keys for editing operation are displayed.

In addition to the above operation, you can create new part program

by entering new program number after the address “O”, and pressing

INSERT key.
