B-63874EN/05 OPERATION 4.EDITING CYCLE MACHINING OPERATIONS

- 75 -

4.5 ENTERING FIXED FORM FIGURE DATA FOR CYCLE

MACHINING

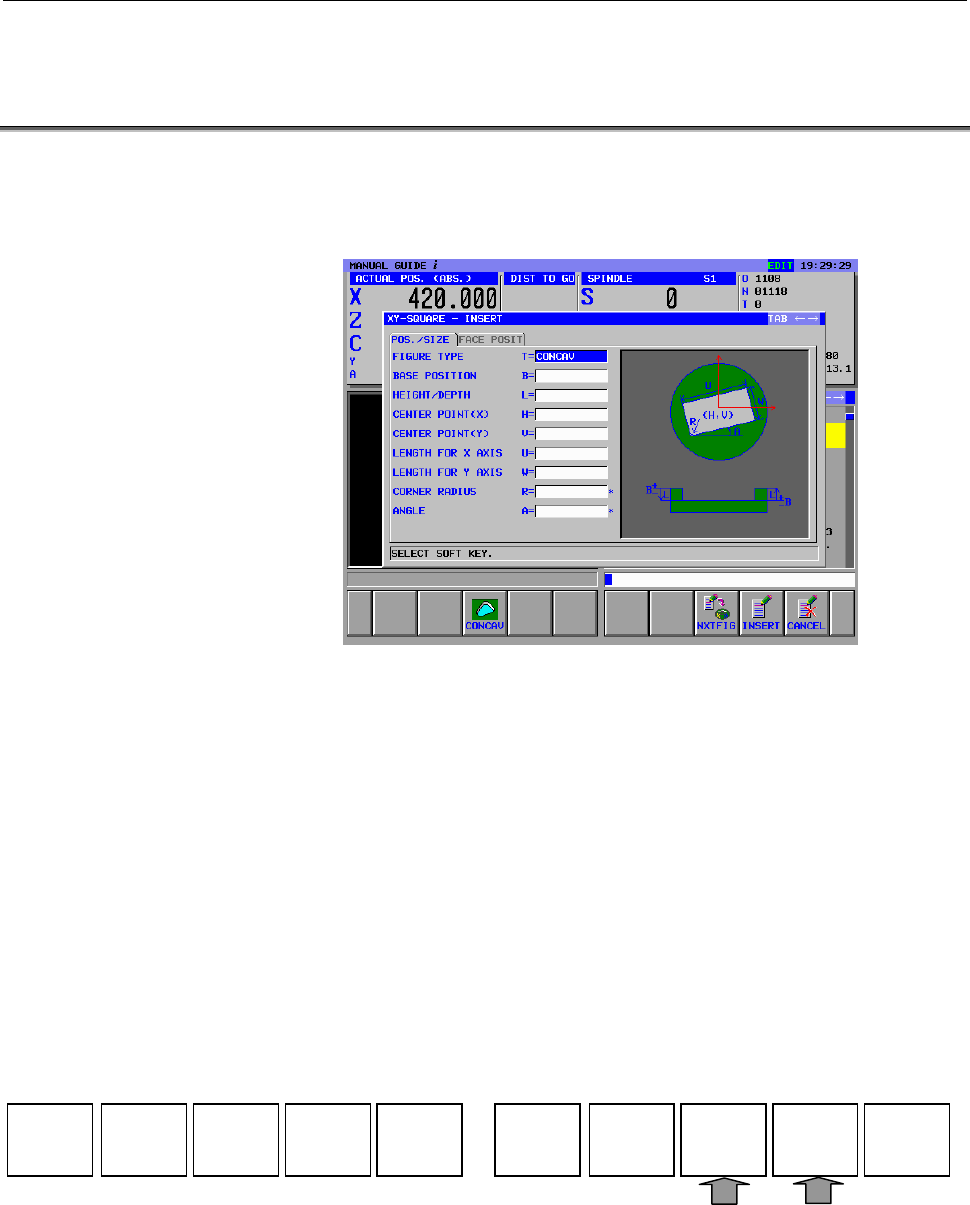

Selecting the fixed form figure displays the data entry window for

cycle machining fixed form data entry window.

(Example of the pocketing fixed form figure)

A data entry window for hole positions, fixed form figures (milling),

turning groove figures, or screw figures (turning) may be extended

over two pages as necessary.

Pressing the ← or → cursor key switches between the two pages. It

also changes the displayed tab.

Pressing the ↑ or ↓ cursor key can place the cursor on a desired data

input item.

There are two types of data input items. One type includes those

entered as numbers, and the other type, those selected from a menu

displayed using a soft key. For the first type, the message "KEY IN

NUMERALS." is displayed in the lower section of the window. For

the second type, the message "SELECT SOFT KEY" is displayed.

Necessary data can be entered by referencing a comment for the data

input item and a guide chart displayed in the window.

The following soft keys are displayed for the fixed form figure data

entry windows.

When the necessary data has been entered, press [INSERT] or

[NXTFIG], then a block for the related figure block is inserted into a

machining program.

Pressing [INSERT] returns to the program window. Pressing

[NXTFIG] displays figure selecting menu again.

CANCELINSERT NXTFIG

CONCAV
