B-63874EN/05 OPERATION 4.EDITING CYCLE MACHINING OPERATIONS

- 71 -

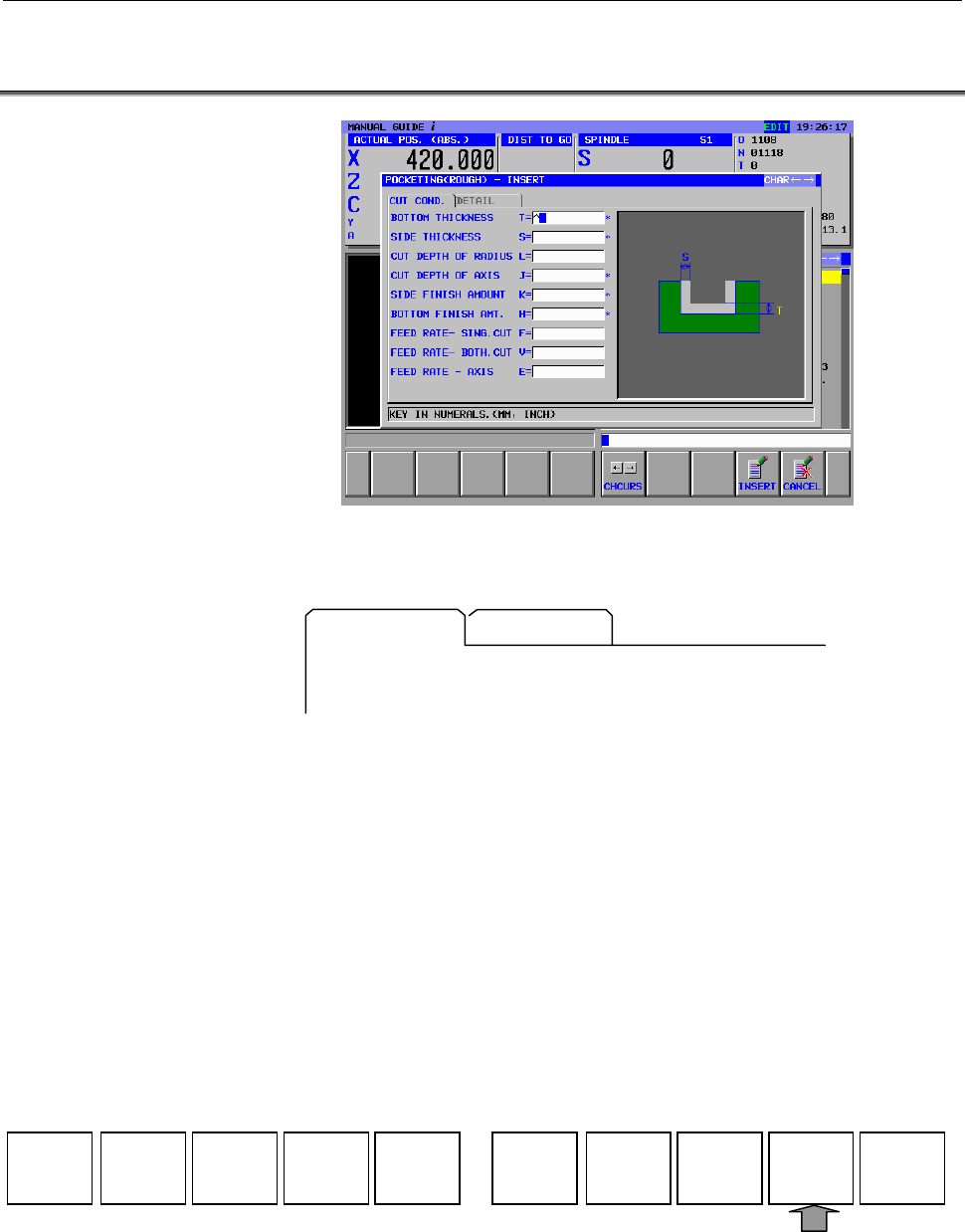

4.3 ENTERING CYCLE MACHINING DATA

The cycle machining data entry window is divided into two sections,

one section for cutting conditions and the other for detailed data.

Pressing the ← or → cursor key switches between the two sections

and changes the displayed tab. The character in the selected tab is

displayed in blue.

Pressing the ↑ or ↓ cursor key can place the cursor on a desired data

input item.

There are two types of data input items. One type includes those

entered as numbers, and the other type, those selected from a menu

displayed using a soft key. For the first type, the message "KEY IN

NUMERALS." is displayed in the lower section of the window. For

the second type, the message "SELECT SOFT KEY" is displayed.

Necessary data can be entered by referencing a comment for the data

input item and a guide chart displayed in the window.

The following soft keys are displayed for the machining cycle data

window.

When the necessary data has been entered, pressing [INSERT] inserts

a block for the related cycle machining into a machining program.

CUT COND.

DETAIL

CANCELINSERT

CHCURS
