B-63874EN/05 OPERATION 10.SETTING DATA

- 233 -

10.3 REGISTERING FIXED FORM SENTENCES

[SETING] to open the setting window can be displayed on all mode

such as MEM, EDIT and manual mode.

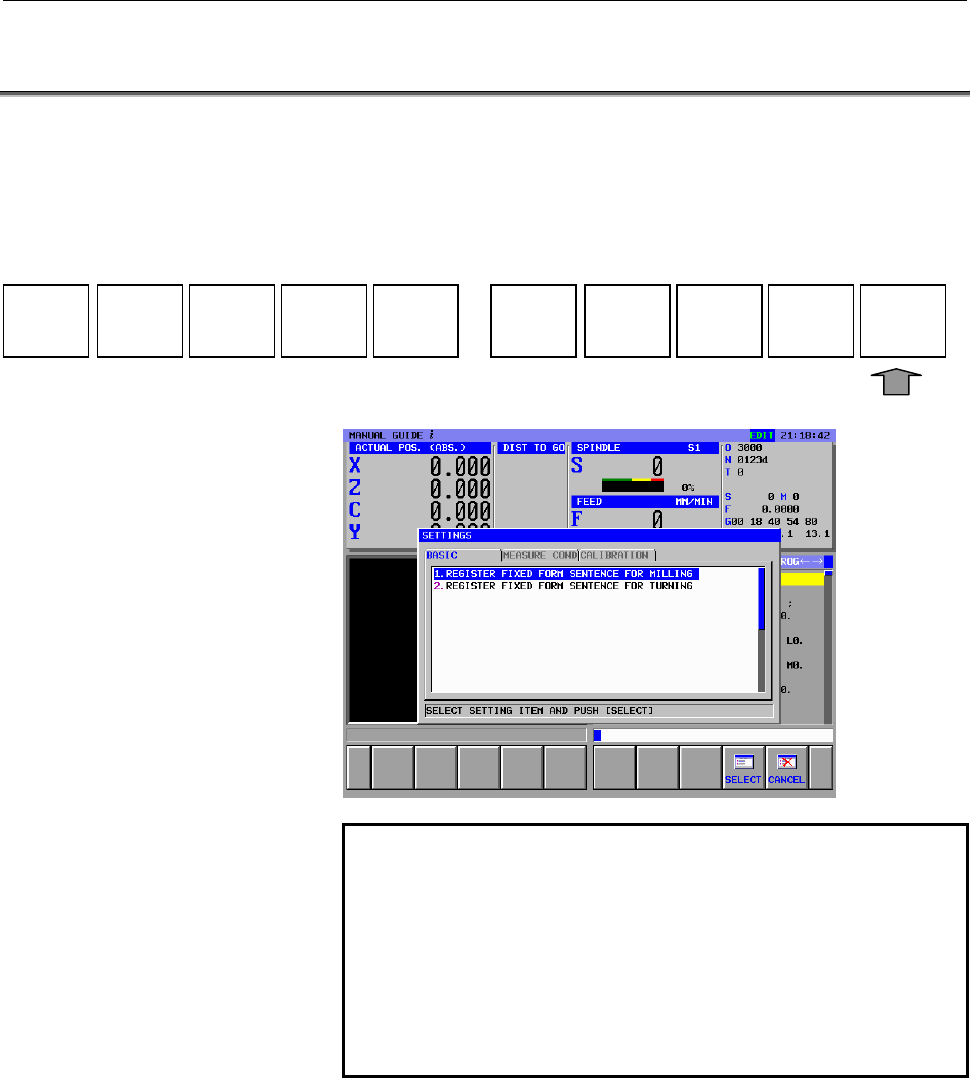

Pressing the leftmost soft key [<] or rightmost soft key [>] several

times displays the soft-keys including [SETING]

Example of MEM mode soft-keys)

Pressing [SETING] displays the window of setting data.

NOTE

1 On the T series CNC, the “REGISTER FIXED

FORM SENTENCE” menu for milling is displayed

only when the milling cycle optional function is

attached. The menu for turning is always displayed.

2 On the M series CNC, the REGISTER FIXED

FORM SENTENCE” menu for turning is displayed

only when the turning cycle optional function is

attached. The menu for milling is always displayed.

After selecting the menu of “REGISTER FIXED FORM SENTENCE

FOR MILLING” by placing the cursor, pressing [SELECT] displays

the window of data setting.

By similar operations, the window for turning can be displayed.

SETING

T-OFS

WK SET

NC CNV
