B-63874EN/05 OPERATION 9.MACHINING SIMULATION AND DRAWING DURING MACHINING

- 215 -

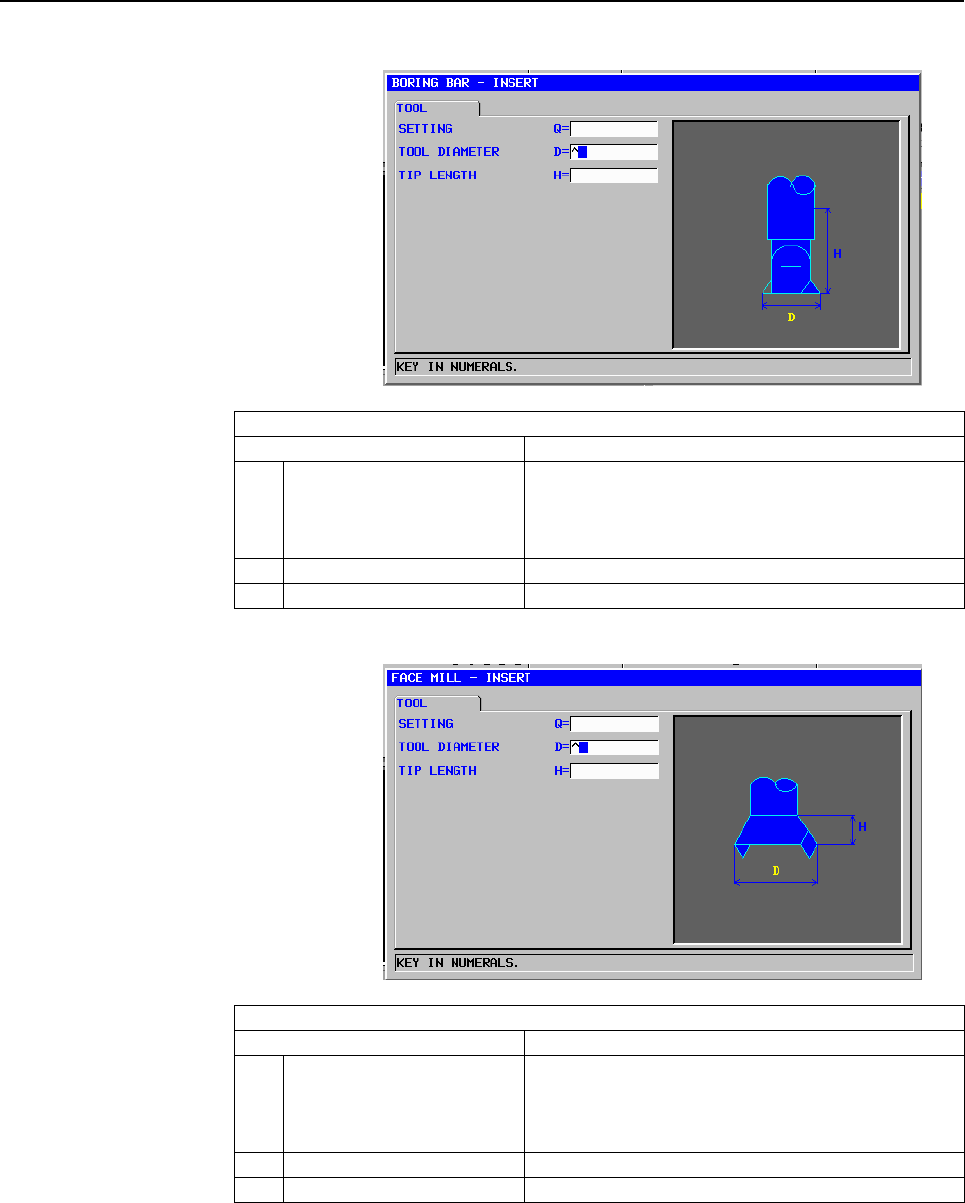

Tool definition block (boring tool): G1924

TOOL

Data item Meaning

Q SETTING Tool installation direction. Select the number of an

installation method from the illustration.

Remark) To be selected visually for both vertical

and horizontal lathes.

D TOOL DIAMETER Boring tool diameter (positive value)

H TIP LENGTH Boring tool length (positive value)

Tool definition block (face mill): G1930

TOOL

Data item Meaning

Q SETTING Tool installation direction. Select the number of an

installation method from the illustration.

Remark) To be selected visually for both vertical

and horizontal lathes.

D TOOL DIAMETER Face mill diameter (positive value)

H TIP LENGTH Face mill length (positive value)
