Manual Guide i Operators manual Page 74

Operators manual
3.EDITING MACHINING PROGRAMS OPERATION B-63874EN/05
- 52 -
3.3 EDITING IN A PROGRAM LIST

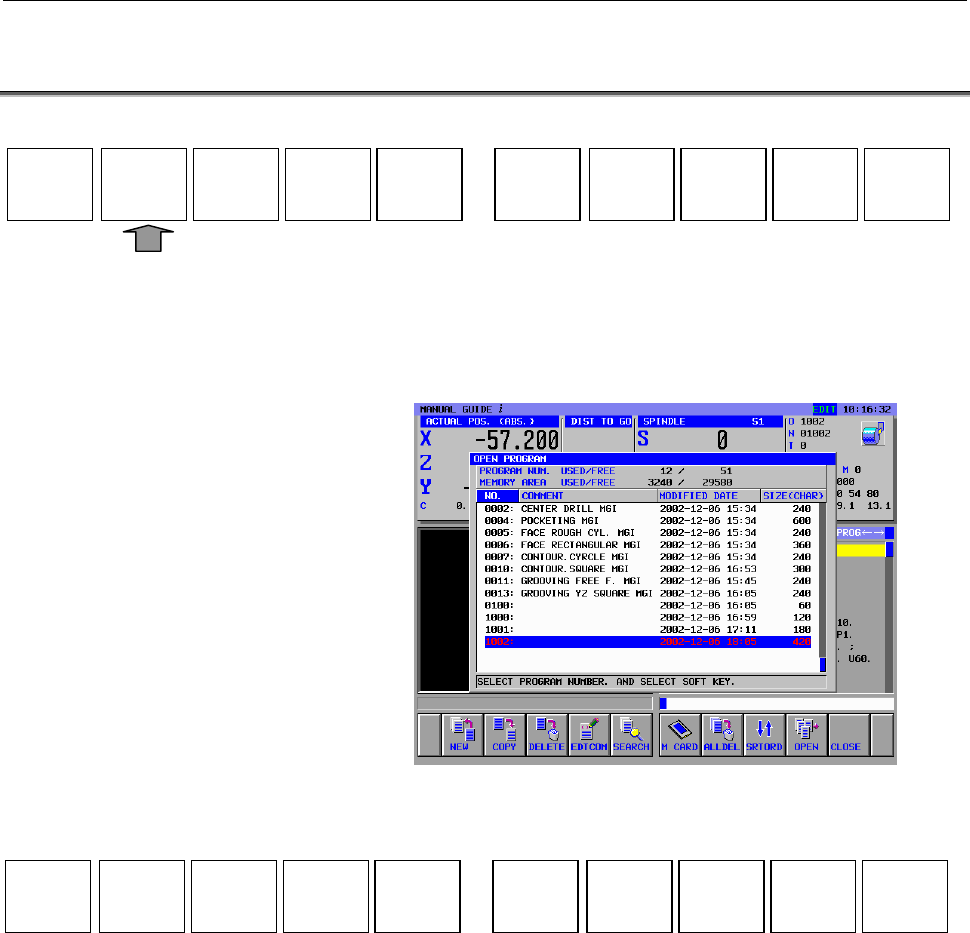

Pressing [O LIST] displays a window that lists registered machining
programs.
By pressing the ← or → cursor key, a sort type (sort by number, sort
by date and time of updating, or sort by size) can be selected.
The following soft keys are displayed in the window. They can be
used for editing such as copying or deleting machining programs.
[NEW] : This soft key displays the program creation window, in
which you can create machining programs.
[COPY] : This soft key displays the program copy window. After
a program number is entered using numeric keys,
pressing [COPY] copies the specified program.
[DELETE] : This soft key displays a message for asking you
whether you really want to delete a specified program.
Pressing [YES] deletes the specified program. Pressing
[NO] cancels the request to delete the specified
program.
[EDTCOM] : This soft key displays the comment (program name)
edit window. If you move the cursor, using ← or →,
and enter a character, using MDI keys, the character
appears at the left of the cursor. Using the CAN key can
delete the character at the left. Pressing [ALTER]
causes the comment to be changed.
CLOSE
OPEN
SRTORD
ALLDEL
M CARD
SEARCH
DELETE
EDTCOM
COPY
NEW
PASTE
KEYPST
DELETE
CUT
COPY
O SRCH
SRCH↑
SRCH↓
O LIST
NEWPRG
