B-63874EN/05 CYCLE MACHINING TYPES 2.TURNING

- 565 -

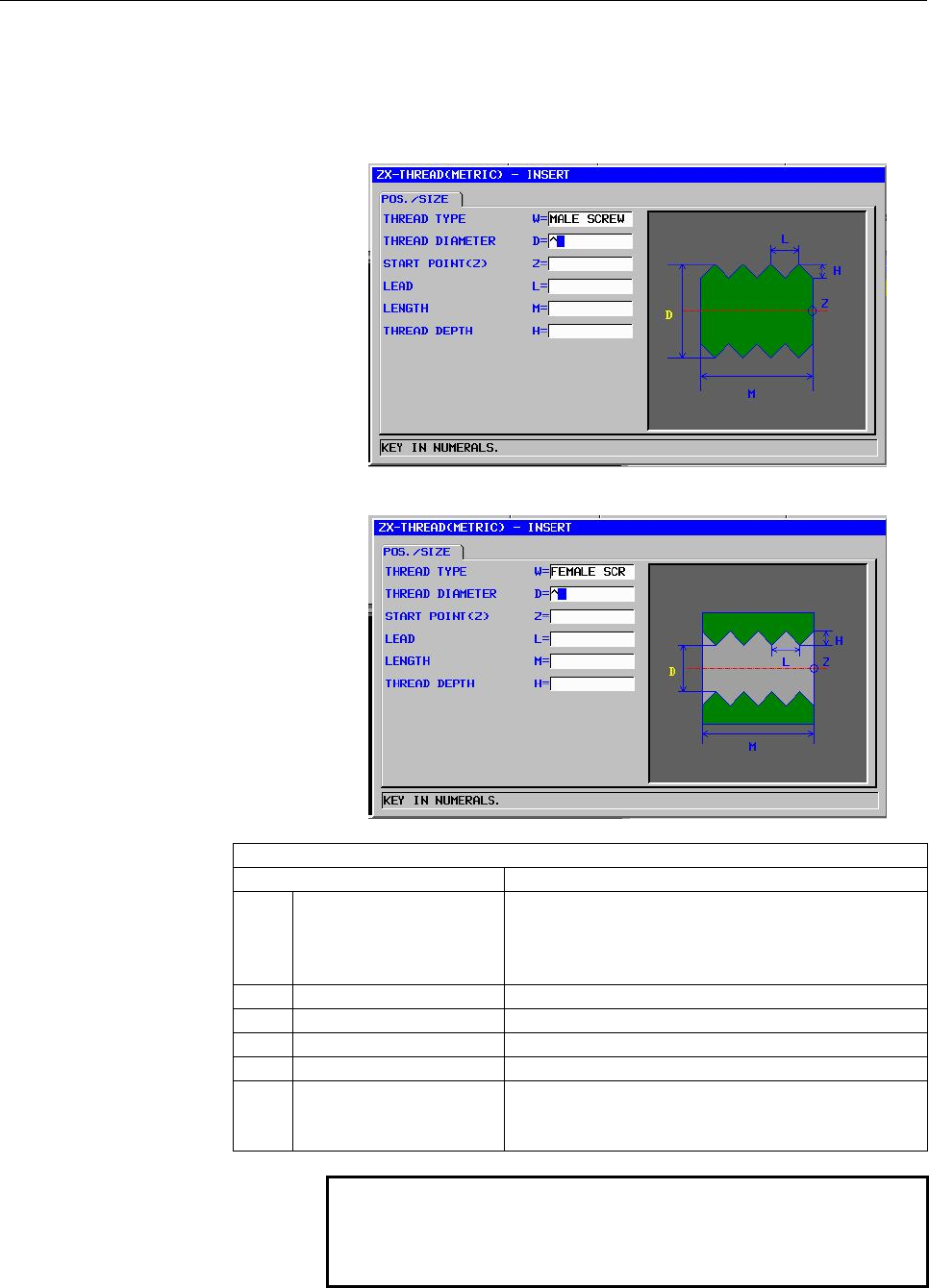

Metric thread: G1461 (ZX plane)

A metric thread is cut. Only one straight thread is machined. Be sure to

set a tool angle of 60 degrees.

Male screw)

Female screw)

POS./SIZE

Data item Meaning

W THREAD TYPE [MALE] : To be selected when the external

thread is specified as threading type

[FEMALE] : To be selected when the internal thread

is specified as threading type

D THREAD DIAMETER Thread diameter (positive value)

Z START POINT (Z) Z coordinate of a thread start point

L LEAD Thread lead (radius value, positive value)

M LENGTH Thread length (radius value, positive value)

H THREAD DEPTH Thread depth (radius value, positive value)

Remark) A thread depth is automatically calculated

by pressing [CALC] after inputting a lead.

NOTE

The thread depth of a metric thread is calculated

from parameter No. 27152 (external) or parameter

No. 27153 (internal) and a thread lead.
