B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES

- 107 -

5.3 ARBITRARY FIGURES FOR THE POLAR COORDINATE

INTERPOLATION PLANE (XC PLANE)

The following types of milling can be specified also for the polar

coordinate interpolation plane (XC plane), and arbitrary figures in the

XC plane can be used in these milling types.

1. Facing

2. Contouring (Side cutting)

3. Pocketing

4. Grooving

5. Emboss machining

NOTE

1 See Chapter 1, "Milling," in Part III for detailed

descriptions about data to be entered for each type

of cycle machining.

2 X coordinate values specified for the XC plane

must also be diameters.

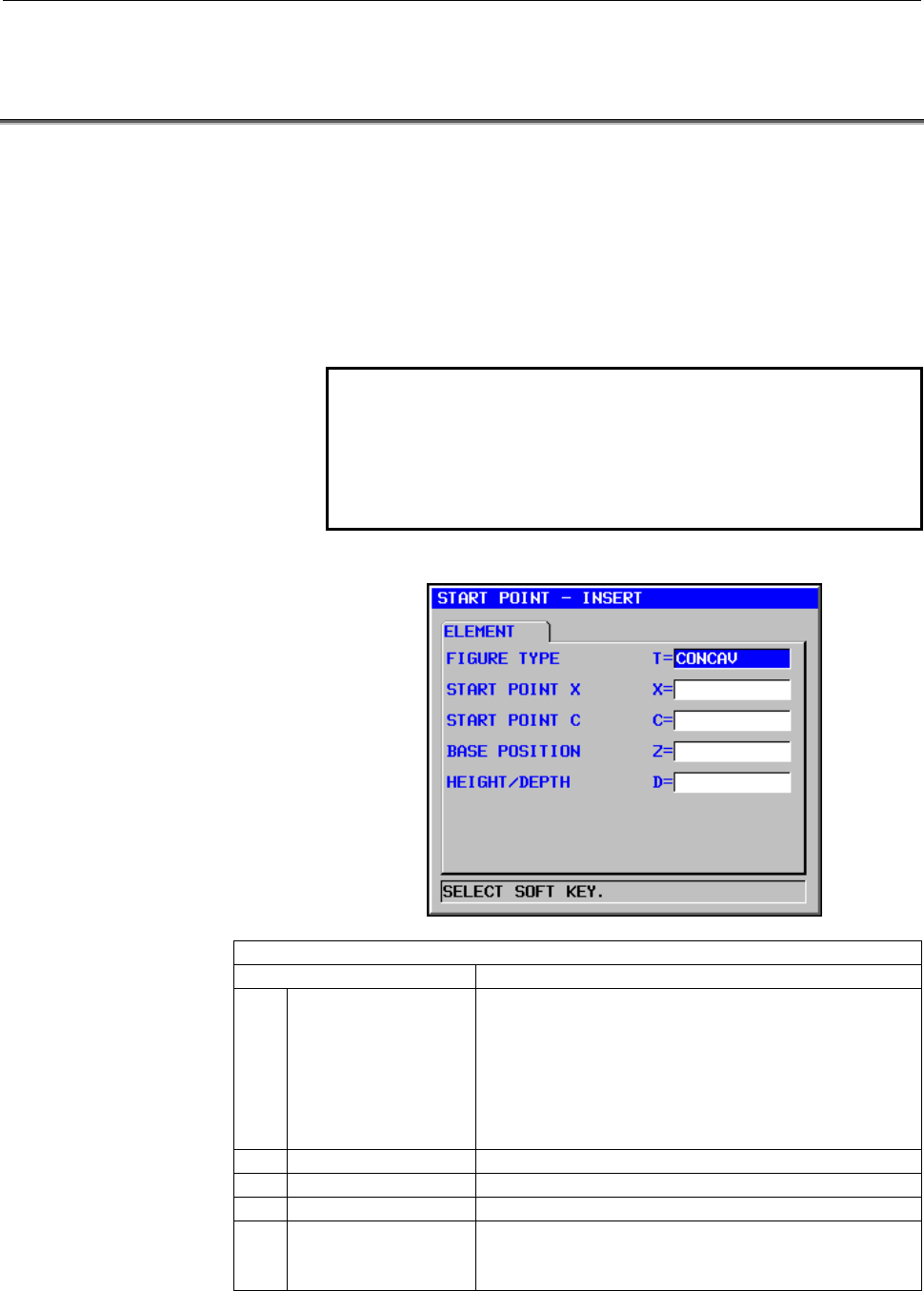

Start point: G1500 (XC plane)

ELEMENT (INPUT DATA) (Note 1)

Data item Meaning

T FIGURE ATTRIBUTE

(Note 2)

[FACE] : Used as a figure in facing

[CONVEX] : Used as an outer-perimeter figure in

contouring

[CONCAV] : Used as an inner-perimeter figure in

contouring and emboss machining or a

figure in pocketing

[GROOVE] : Used as a figure in grooving

X START POINT X X coordinate of the start point of an arbitrary figure

C START POINT C C coordinate of the start point of an arbitrary figure

Z BASE POSITION Position of the machining surface of an arbitrary figure

D HEIGHT/DEPTH Height or Depth from Base position to cutting surface

Remarks) This item is displayed in Contouring,

Pocketing, Grooving and Emboss machining.
