Manual Guide i Operators manual Page 741

Operators manual

Page of 888

/ 888

B-63874EN/05 EXAMPLE OF PROGRAMMING 3.MACHINING CENTER

- 719 -

3.5 CREATING OF PART PROGRAM

In the MANUAL GUIDE i , background editing can be used, but in

this section, part program creating operations are described by using

foreground editing on the EDIT mode.

3.5.1 Creating New Part Program

Create a new part program of O1234.

1. In case of creating a new part program directly

2. In case of creating a new part program on the program list

window

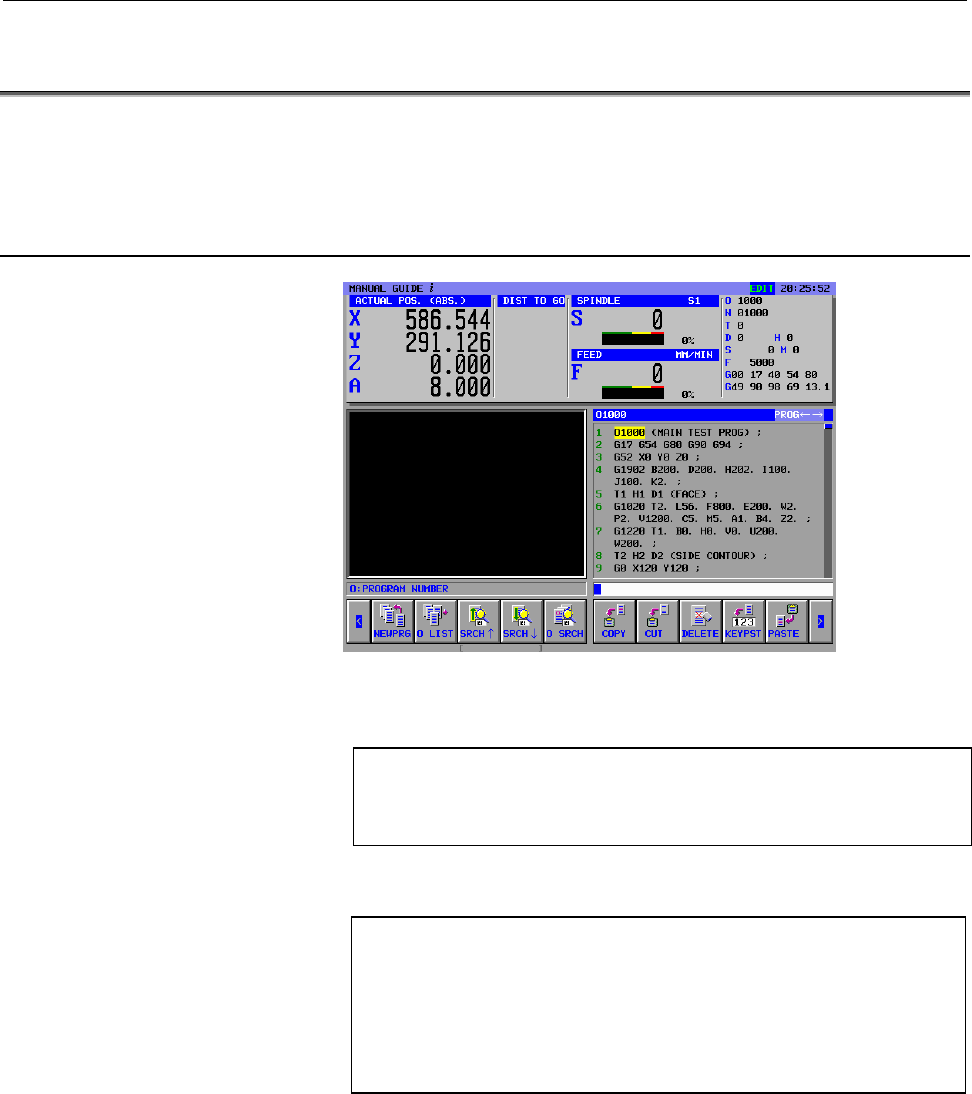

Select EDIT mode by using a mode-selecting switch on a machine-operating panel

[NEWPRG]

(CREATE NEW PROGRAM)

1234 [CREATE] (NEW PROGRAM NO.)

Select EDIT mode by using a mode-selecting switch on a machine-operating panel

[O-LIST]

(OPEN PROGRAM)

[NEW]

(CREATE NEW PROGRAM)

1234 [CREATE] (NEW PROGRAM NO.)

Select the newly entered program by ↓

[OPEN]
