Manual Guide i Operators manual Page 628

Operators manual
3.PROCESS LIST EDITING FUNCTION MULTI-PATH LATHE FUNCTIONS B-63874EN/04
- 606 -
3.5.1 Insertion of a Cell
• Function
• Add a process.
• Add the process to the upper side.
• In NC program,
Process start block : G1992 Sx (xxxx)
Process end block : G1993
These codes are inserted automatically.

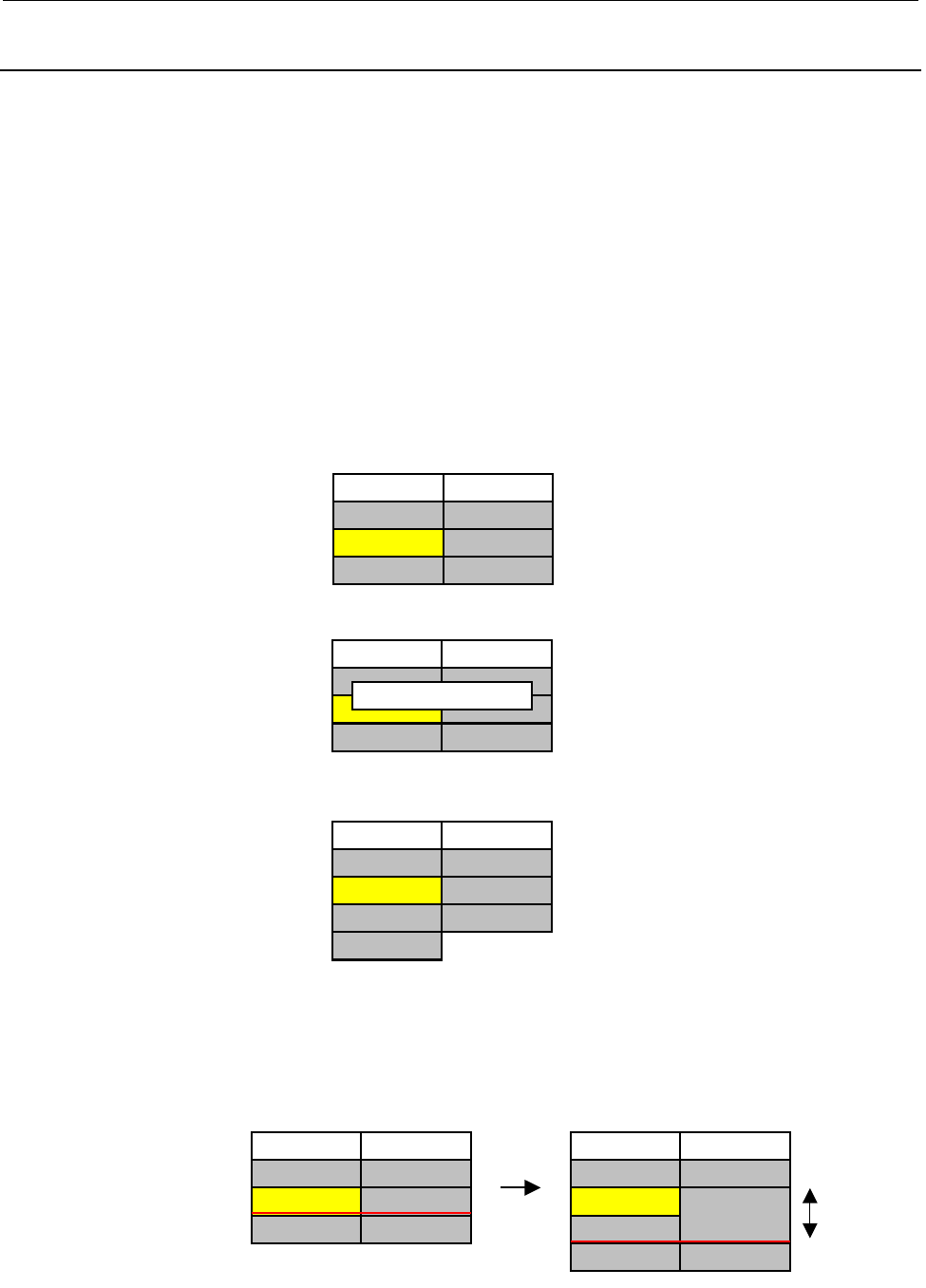

Basic operation
1. Move cursor to the cell to be inserted.
2. Press [INSCEL] soft-key.
3. Press OK, and the process will be inserted.
Others
• In case of having waiting in the lower, for not breaking the
waiting line, modify the height of the cell of other row that
have the waiting to twice.
N
10 ROUGH
N
20 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
20 TAP
% %
N
10 ROUGH
N
20 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
20 TAP
%
%
MIDDLE
Cursor moves to the new cell.
N
10 ROUGH
N
20 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
20 TAP
% %
PROC NAME MIDDLE
The dialog for the process name inpu
t
is displayed.
Input MIDDLE as an example.
(When cancel is pressed, return to
p
revious state.)
Height of
cell
becomes
twice.
N
10 ROUGH
N
20 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
20 TAP
% %
N
10 ROUGH
N
20 FINE
TURRET 1 TURRET 2
N
10 DRILL
N
20 TAP
% %
Insert
