B-63874EN/05 CYCLE MACHINING TYPES 1.MILLING
- 345 -

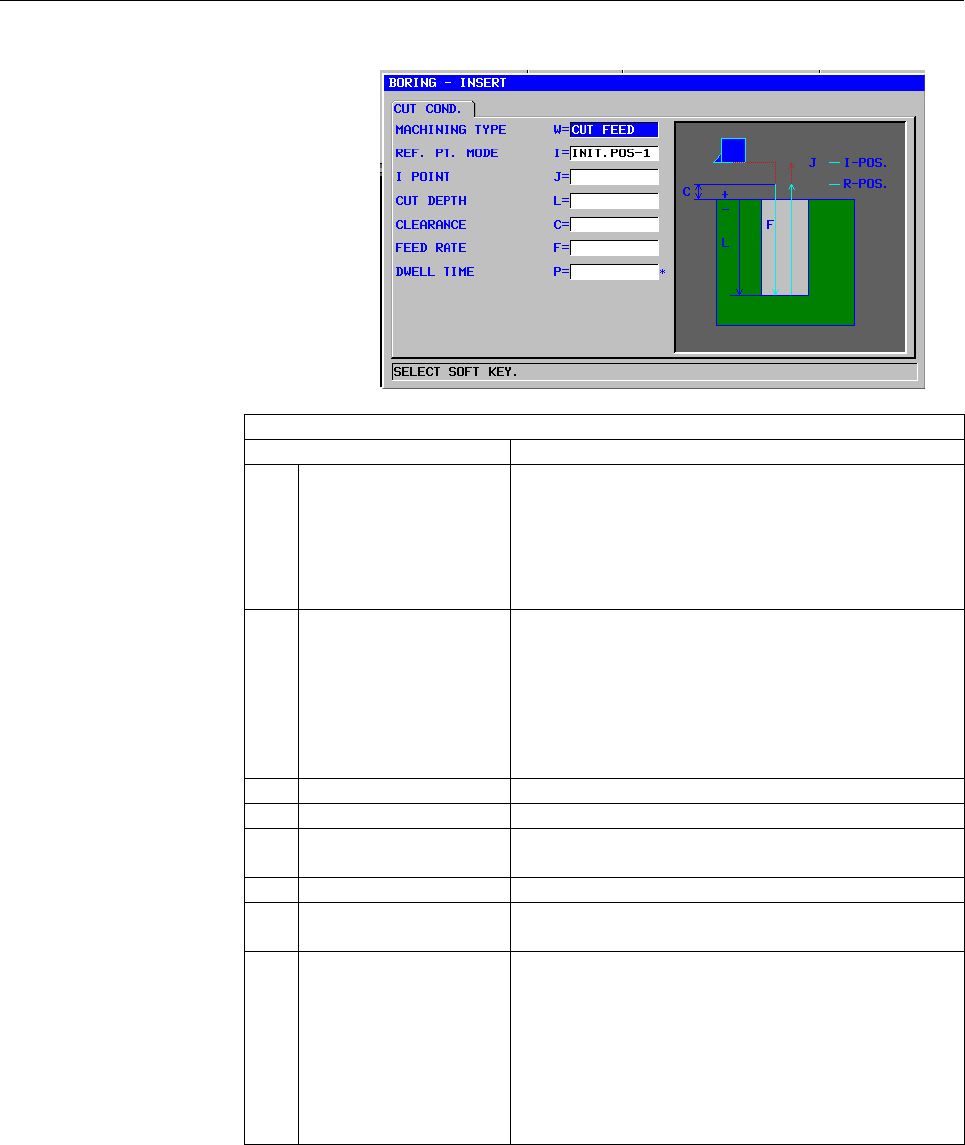

Boring: G1004
CUT COND.
Data item Meaning
W MACHINING TYPE [CUT] : The tool retracts from the hole bottom in
cutting feed. (initial value)
[RAPID] : The tool retracts from the hole bottom in
rapid traverse.
[DWELL] : After dwelling at the hole bottom, the tool
retracts in cutting feed.
I REF. PT. MODE [INIT-1] : An R position return is made in moving
between holes. Finally, a return is made to
the I point. (initial value)
[INIT-2] : All movements between holes, including the
last return, are made as an I point return.
[REF.] : All movements between holes, including the
last return, are made as an R position return.
J I POINT Coordinate of the I point (COPY)
L CUT DEPTH Cut depth (radius value, negative value)
C CLEARANCE Distance between the workpiece surface and R
position (radius value, positive value) (COPY)
F FEED RATE Cutting feedrate (positive value) (COPY)
P* DWELL TIME Dwell time at the hole bottom. If omitted, 0 is
assumed. (units of seconds, positive value) (COPY)
Z APROCH MOTION [2 AXES] : When moving from the current position to
the machining start point, the tool first
moves in the machining plane in two-axis
synchronous operation and then moves
along the tool axis. (initial value)
[3 AXES] : The tool moves from the current position
to the machining start point in three-axis
synchronous operation.
