B-63874EN/04 MULTI-PATH LATHE FUNCTIONS 1.MULTI-PATH LATHE APPLICATION

- 587 -

1.4 MACHINING SIMULATION FOR EACH PATH

In the multi-path system of MANUAL GUIDE i, the machining

simulation is performed only at the selected path by the R signal.

In the multi-path system of MANUAL GUIDE i, the machining

simulation is performed only at the selected path by a R signal that is

set at the parameter No.27309 (The first figure is “bit” and the other

figure is the R signal number.).

For example, with 2 paths system

- At Path 1, the parameter No.27309=1001

- At Path 2, the parameter No.27309=2001

Then,

- At Path 1, if R100.1 is 1

- At Path 2, if R200.1 is 1

machining simulation is performed at each path. The status of the

signal of each path is displayed at a title bar of simulation window.

Green is the status for enable the simulation to be performed. Gray is

the status for disable.

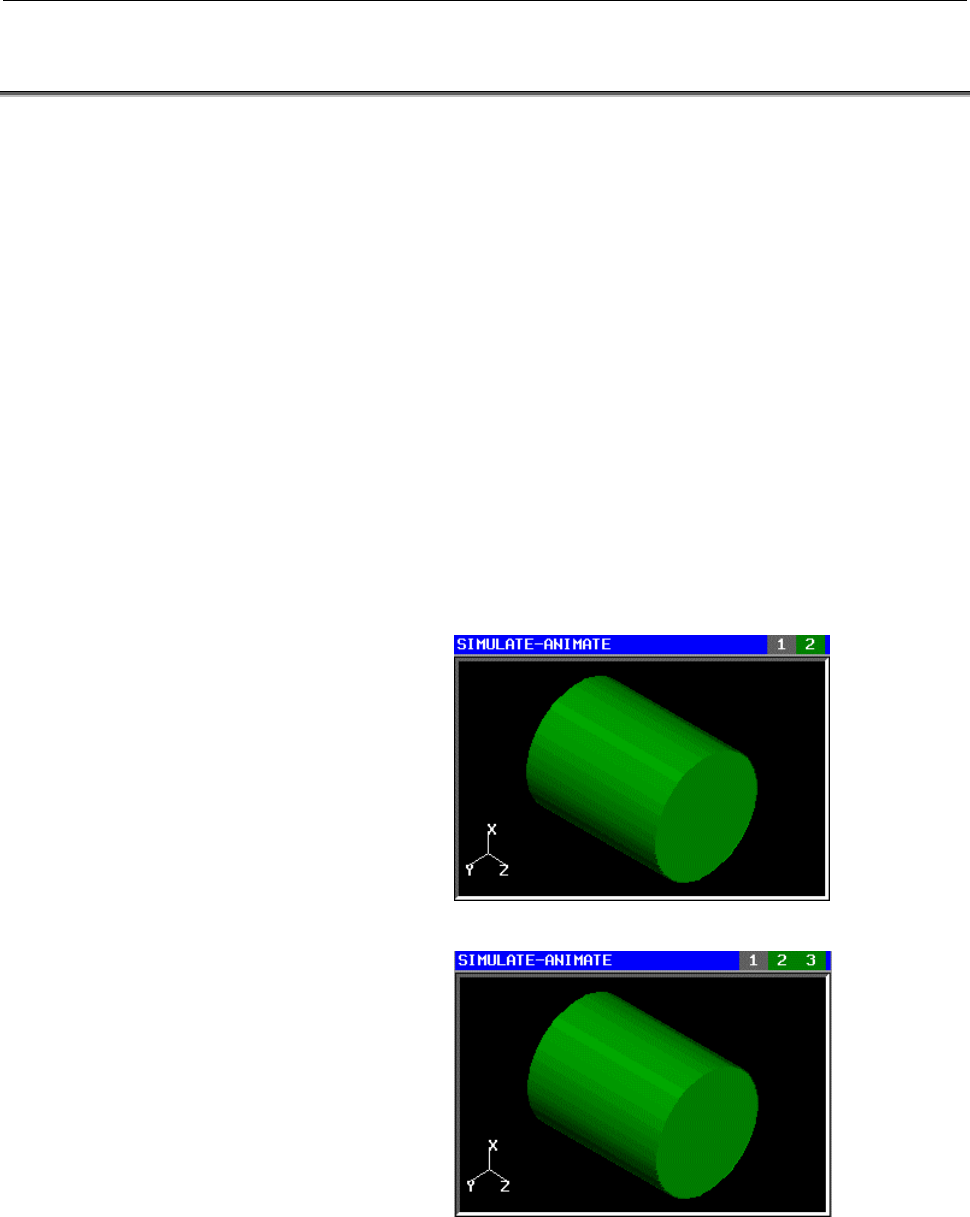

Ex.1 With 2 paths system, the signal of Path 1 is 0 and the one of

Path 2 is 1.

Ex.2 With 3 paths system, the signal of Path 1 is 0 and the ones of

Path 2/3 are 1.
