B-63874EN/05 OPERATION 5.DETAILED DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES

- 129 -

5.5 ARBITRARY FIGURES FOR TURNING (ZX PLANE)

Arbitrary figures in the ZX plane can be used in turning.

1. Outer surface rough/semifinish/finish turning

2. Inner surface rough/semifinish/finish turning

3. End surface rough/semifinish/finish turning

NOTE

1 See Section 2.1, "Turning," in Part III for detailed

descriptions about data to be entered for each type

of cycle machining.

2 When entering an arbitrary figure for turning, make

its end point coincide with its start point. To put

another way, combine parts figures with blank

figures in such a way that a closed curve is

created.

Turning is carried out in this closed curve.

3 It is possible to specify "PART" and "BLANK" as

"ELEMENT TYPE" for an individual arbitrary figure.

This "BLANK" can be used to enter an arbitrary

figure resembling a blank figure to be actually

machined, so any portion other than the blank

portion will not be cut. This way, optimum rough

turning can be realized.

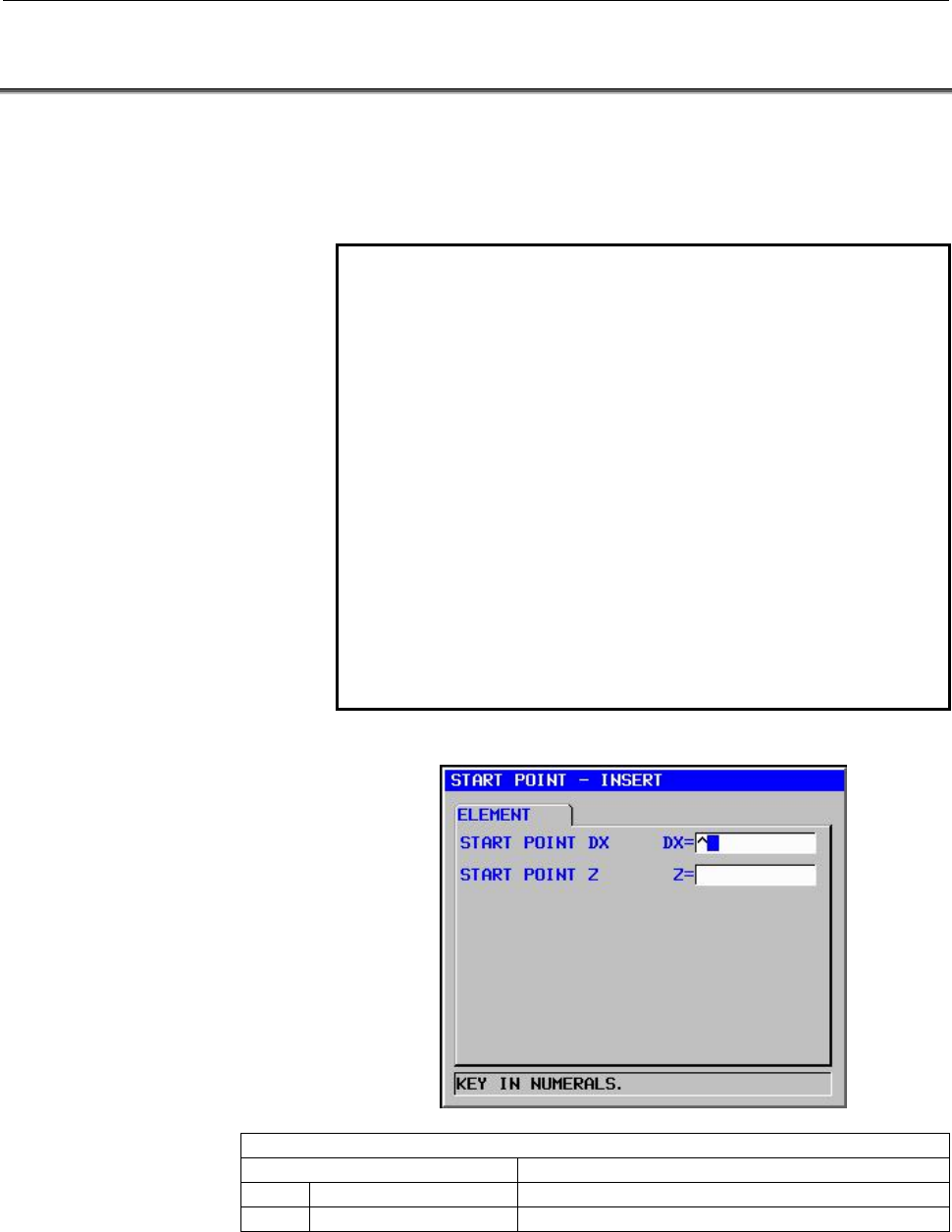

Start point: G1450 (ZX plane)

ELEMENT (INPUT DATA) (Note 1)

Data item Meaning

DX START POINT DX X coordinate of the start point of an arbitrary figure

Z START POINT Z Z coordinate of the start point of an arbitrary figure
