B-63874EN/05 EXAMPLE OF PROGRAMMING 3.MACHINING CENTER

- 723 -

NOTE

1 In the cycle machining data menu window, all data

excepting cutting condition data are set

automatically. However, the data entered at

previously entered cycle of same kind are copied,

so you must enter the data if you have not entered

the same kind of cycle.

2 In the cycle machining data menu window, 2 tabs,

<CUT COND.> and <DETAIL>, are displayed.

In the <CUT COND.>, all data must be set. In the

<DETAIL>, all data are automatically set, so check

those data and modify them if necessary only

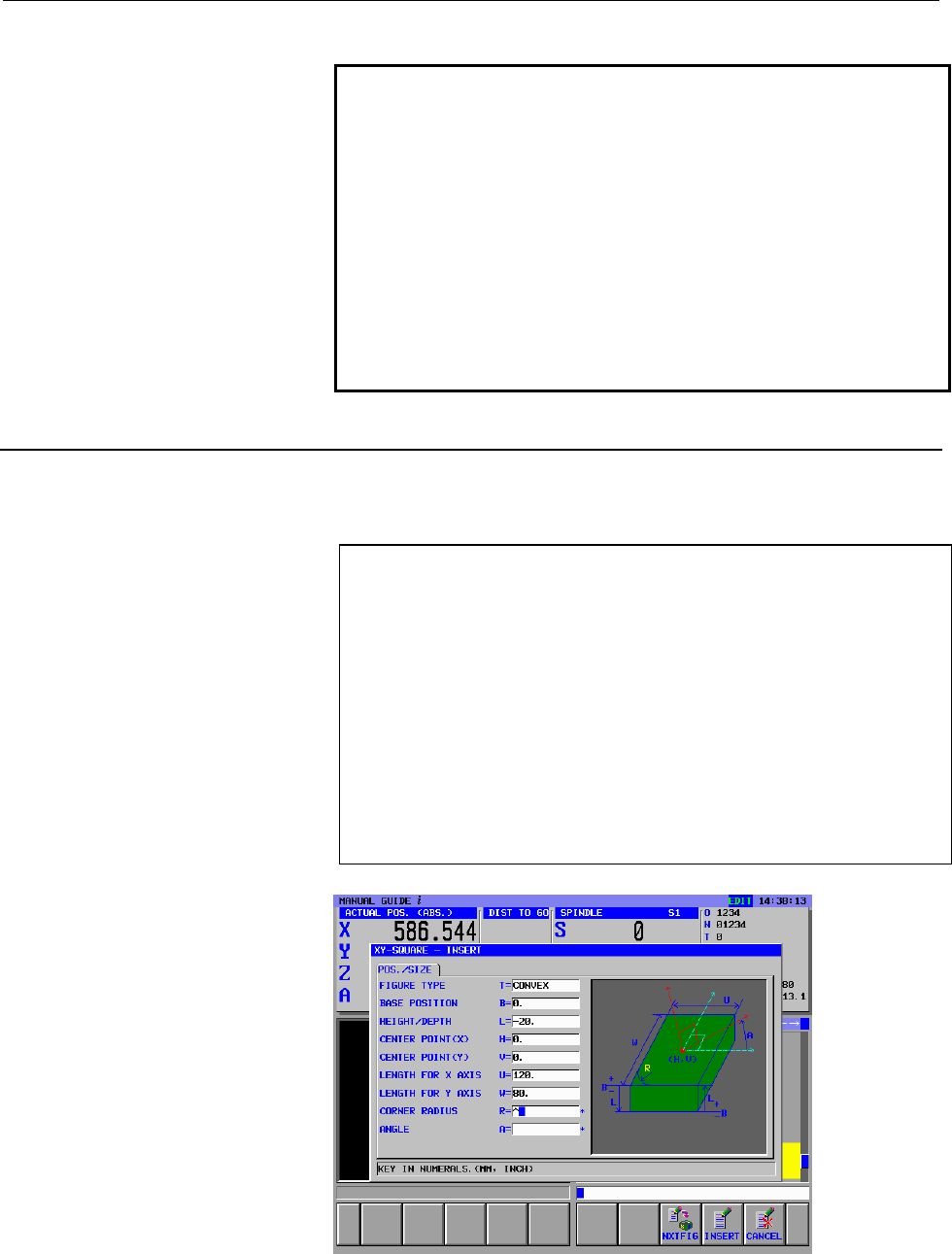

3.5.4.2 Entering figure for outer wall contouring (rough)

By inserting the cycle machining block, the window of contouring

figure menu is displayed, so select the XY-SQUARE CONVEX

(INSERT MILLING FIGURE)

<CONT. FIG.>

<<1.XY-SQUARE CONVEX>>

[SELECT]

(XY-SQUARE - INSERT)

<POS./SIZE>

[CONVEX] (FIGURE TYPE)

0 INPUT (BASE POSITION)

-20 INPUT (HEIGHT/DEPTH)

0 INPUT (CENTER POINT (X))

0 INPUT (CENTER POINT (Y))

120 INPUT (LENGTH FOR X AXIS)

80 INPUT (LENGTH FOR Y AXIS)

[INSERT]
